Outback Power Systems MATE2 System Controller and Display Installation and User Manual - Manual (Page 28)

28
Summary Screen Overview
The Summary screens provided by the MATE:
• Summarize the current status of any FX, OutBack Charge Controller and/or FLEXnet DC
connected to it.
• Can be accessed from the
to pop up like a screen saver after a delay (See Summary Screen Options on the next page
for more setup information).
Any MATE soft key pressed while the Summary screen is being displayed returns you to the
screen that was active before the Summary screen was displayed. Pressing the two lower left
soft keys at the same time opens the MAIN Menu screen.
MAIN--------------------------------
12:00:30P
SUM STATUS SETUP ADV

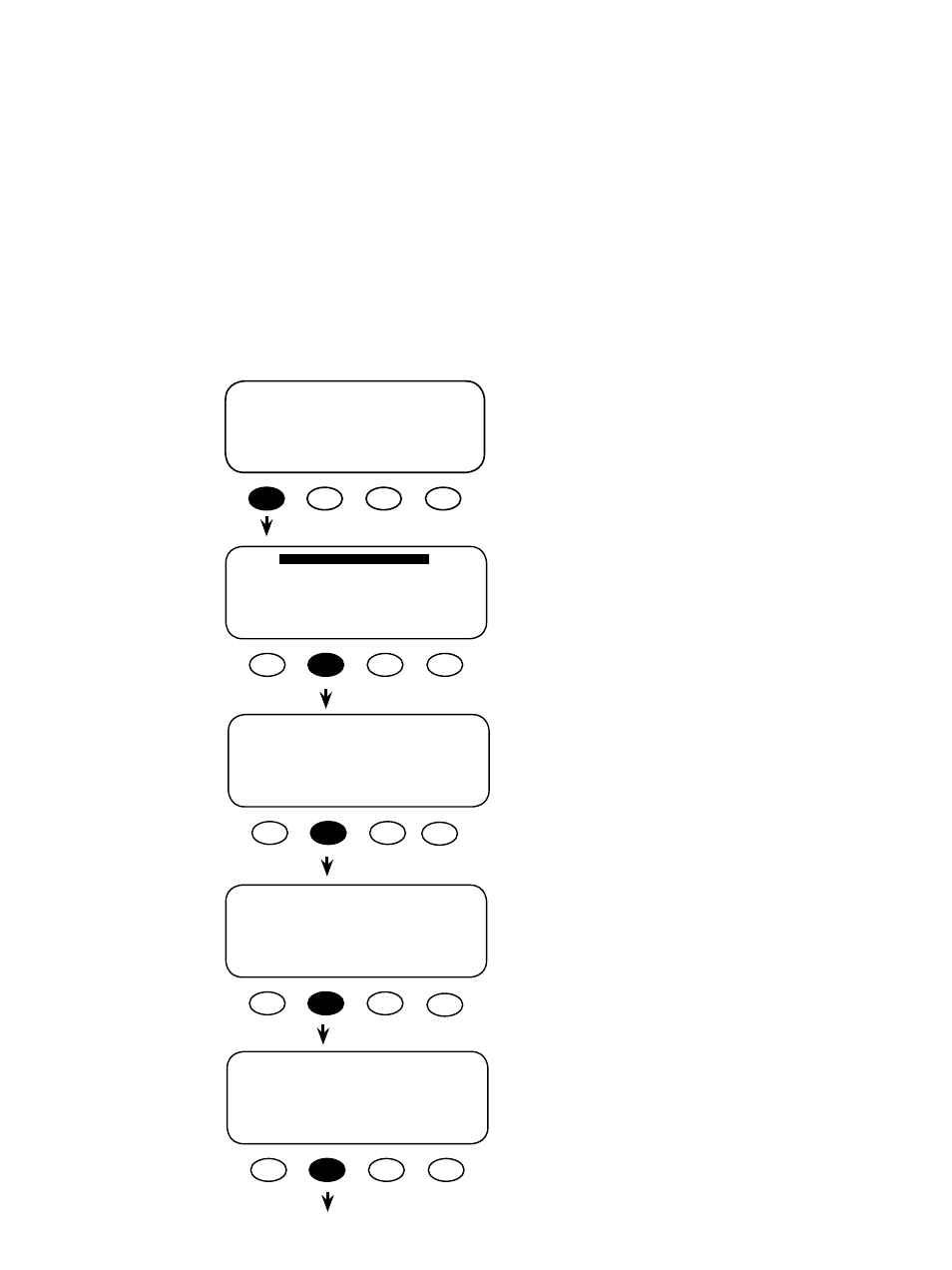

If the MATE has a FLEXnet DC connected to it,
an initial FLEXnet DC screen will be displayed
as the Summary default screen.
Pressing the second soft key brings up the next
three FLEXnet DC summary screens as well as
the FX and Charge Controller summary screens.
E F
Battery Discharging
State of Charge 100%
DC Now 25.4V 100%
In 0.1A 0.000 kW
Out 0.4A 0.010kW
Bat -0.3A 0.010kW
DC TODAY minSOC 97%
In 102AH 2.70 kWH
Out 93AH 2.44kWH
Bat 9AH 0.26kWH
DC BAT 25.4V 100%
Bat -0.3A -0.010kW
Net 0AH 0.00kWH
Days Since Full 1.1
The FLEXnet DC summary screens display
the battery state of charge, including the day’s
minimum, the current DC voltage, and the in
and out kilowatt hours and amp hours. All the
FLEXnet DC summary screens are explained in
the FLEXnet DC User’s Guide which comes with
that component.
