OutBack Charge Controller Summary Screen
The CC summary applies to all OutBack Charge
Controllers. Its screen shows the voltage level of the
battery (also non-temperature-compensated) and
the amount of power being supplied to the battery.
This screen is the default Summary screen if the
Charge Controller is directly connected to the HUB.
The AH value applies only to the FLEXmax 80 and
FLEXmax 60 Charge Controllers.
CC TOTALS 13.3V
Output 0A 0.000kW
Today 0.0kWh
0 AH
FX Summary Screen
If the MATE has one or more FXs connected to
it and does not have a FLEXnet DC as part of the
system, an FX Summary screen will be displayed
as the Summary default screen. Otherwise, it will
follow the FLEXnet DC summary screens.
The FX summary screen’s values summarize
power flow in an FX system as well as the non-
temperature compensated battery voltage.
FX Total 12.6V 97%
Inverting 0.000kW
AC Loads 0.000kW
Buying $ 0.000kW
Summary Screen Options
Why you might want them: Summary screens show the current status of one or more FXs or
Charge Controllers. Given that each user and system is different, the MATE offers the choice of
viewing the status of either component as well as the timing of those displays.

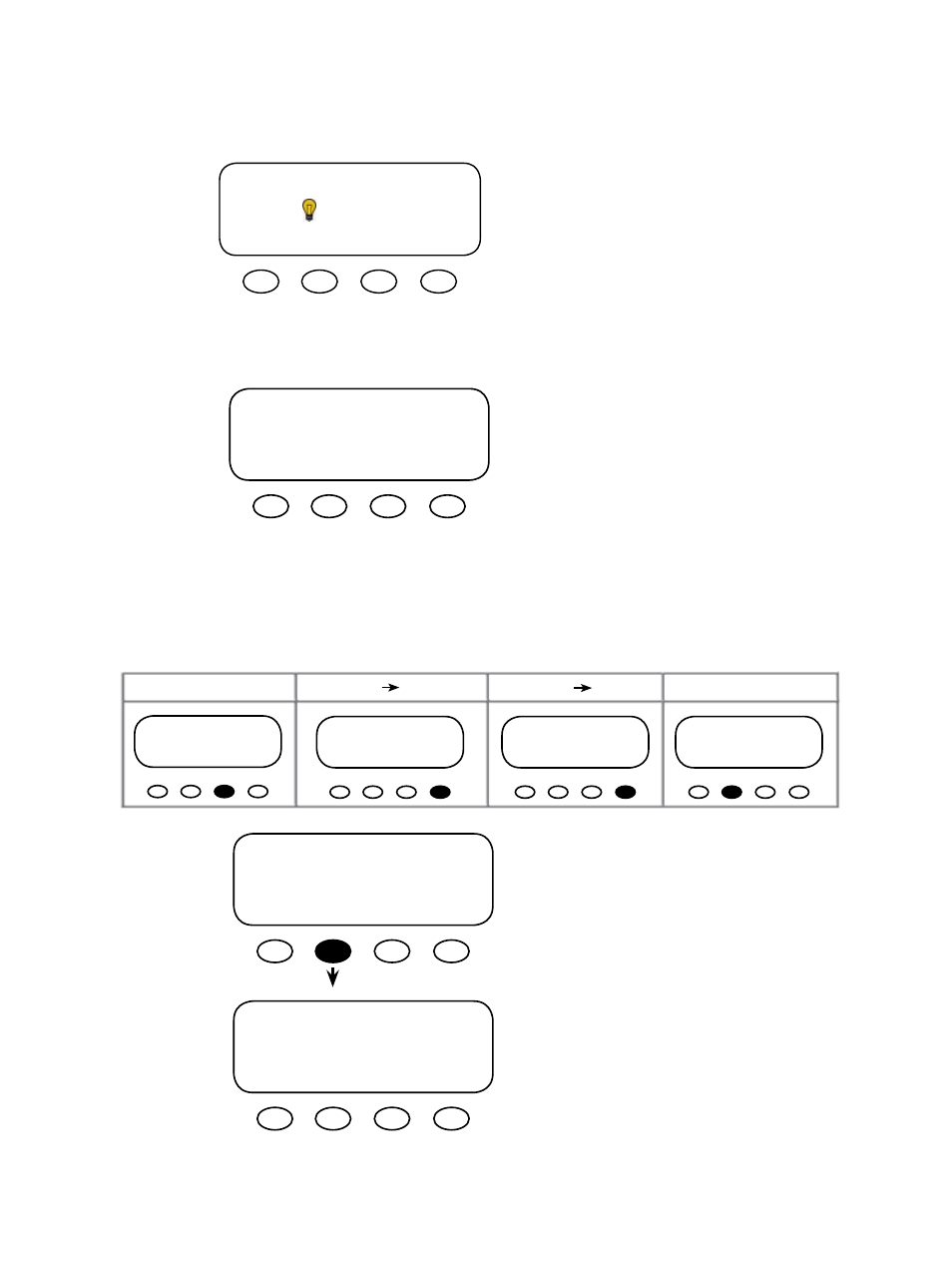

SETUP-------------------------------
choose device:
FX MATE
MAIN------------------------------------
9:57:32A
SUM STATUS SETUP ADV
SETUP/MATE/PAGE1------------------
mate code rev: 402
choose category:
CLOCK CNT GLOW PG2
SETUP/MATE/PAGE2-----------------
choose category:
PG1 SUMRY COMM PG3
PATH
SETUP/MATE/PAGE2--------------
choose category:
PG1 SUMRY COM MAIN
SETUP/MATE/SUMMARY----------
summary control
BACK TYPE DELAY ROLL
Press the soft key from the
MATE/PAGE2> Setup choices screen.
Pressing the soft key brings up the
SETUP/MATE/SUMMARY (summary control)
screen options and .
