NOTE: For a global charger command to work, all of the OutBack products must be connected

to a HUB. The CHARGER MODE CONTROL affects both FX Series Inverters/Chargers

and OutBack Charge Controllers. This requires that the FX and OutBack Charge Controller

firmware versions support this feature (See page 129, Troubleshooting, if this command fails to

function).

To stop an equalizing process, return to the EQUALIZE CONTROL screen and press the

soft key. To return to the EQUALIZE CONTROL screen:

• Press the hot key four times.

• Press the soft key.

• Press the soft key on the EQUALIZE CONTROL screen.

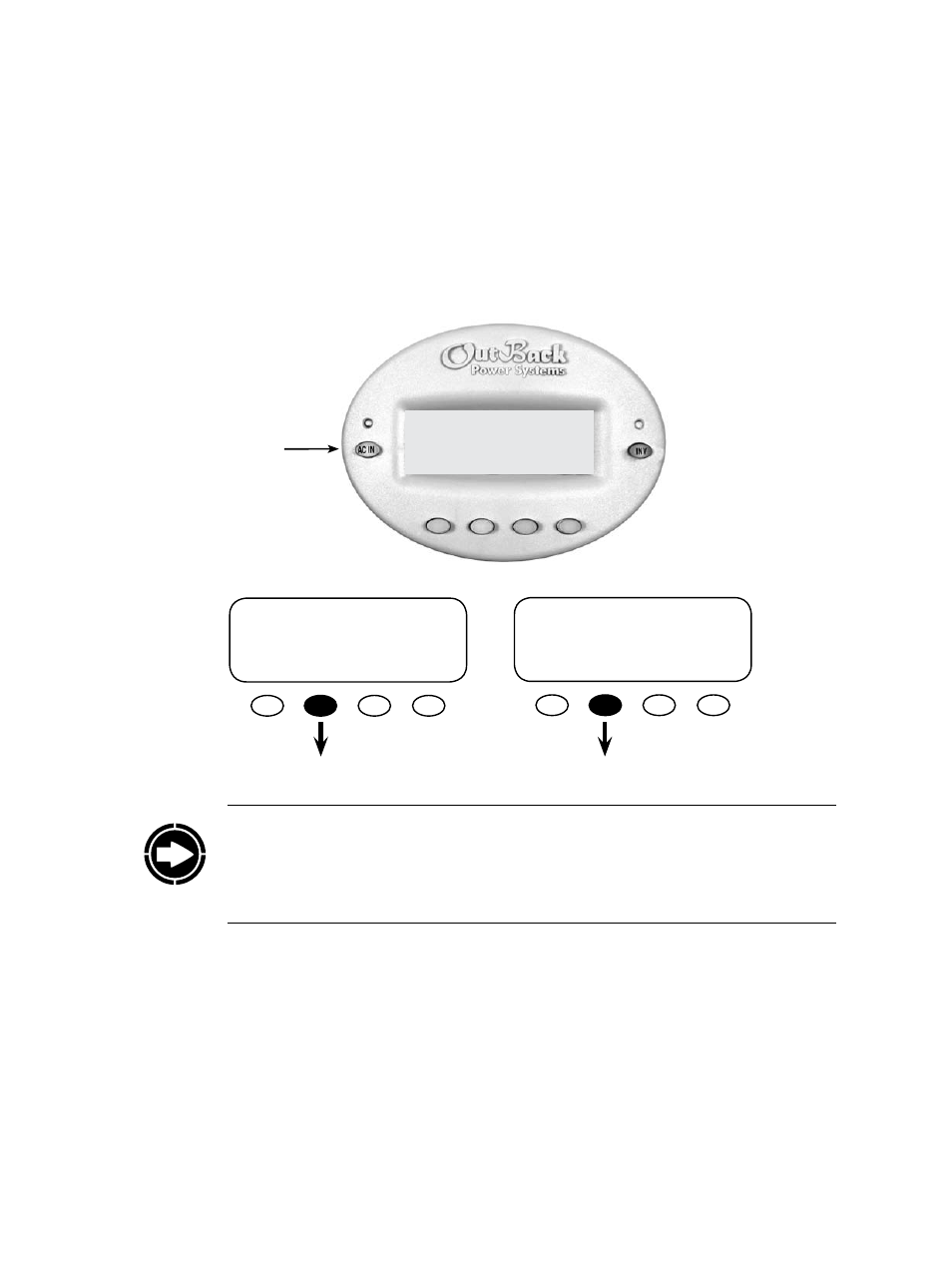

AC INPUT CONTROL

Hot Key

CHARGER MODE CONTROL

Global charger mode

BULK EQ OK

EQUALIZE CONTROL

eq enabled

Yes

START STOP OK

MAIN--------------------------
1:35:04p
SUM STATUS SETUP ADV
