FN-DC advanced grid
tie authority
PG3 MODE ADV MAIN
ADV/MATE/PG3------------------------
advanced charger
float control
PG2 CC FN-DC PG4

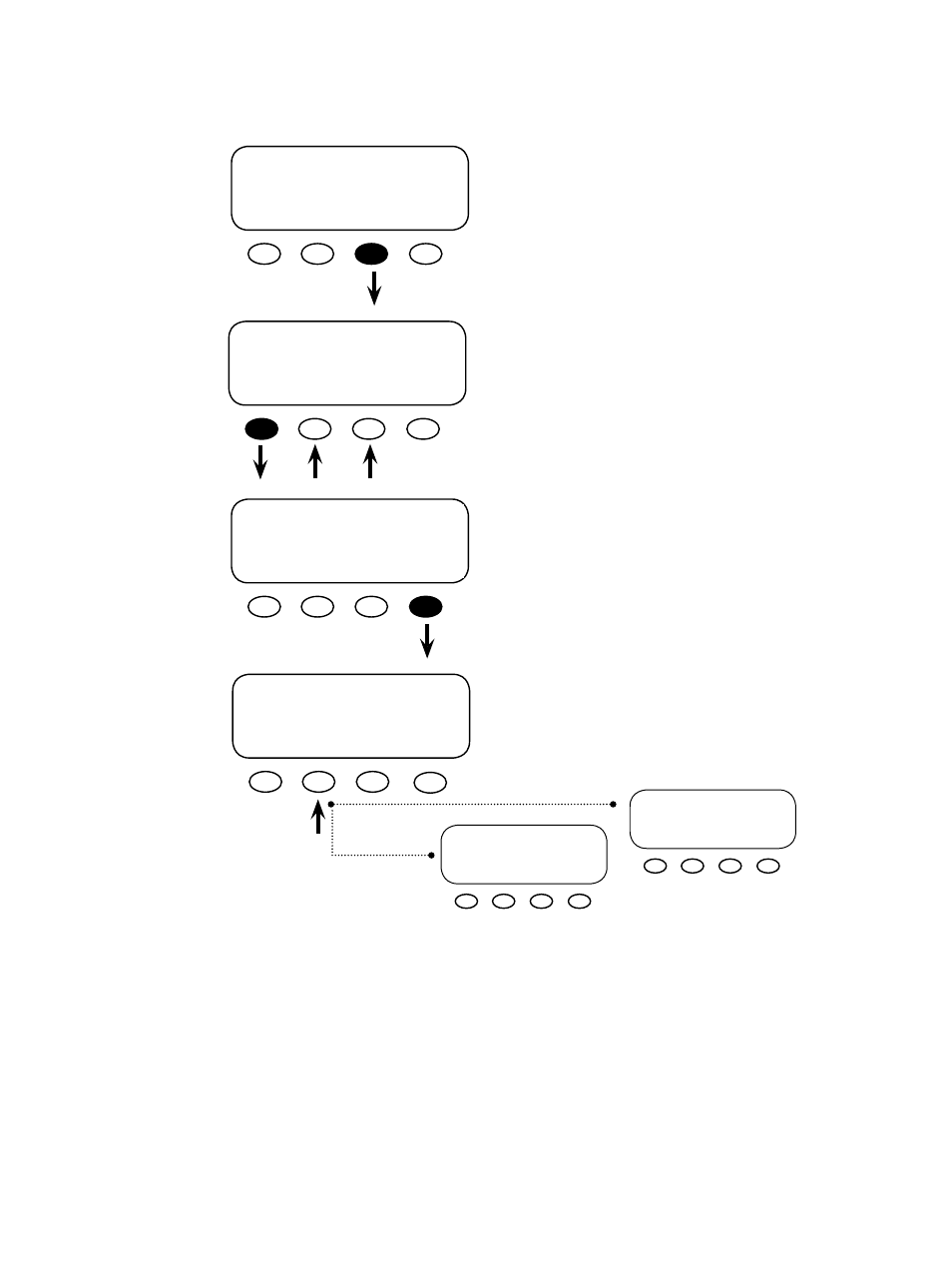

Pressing the soft key brings up the
FLEXnet DC charge termination screen.
Pressing the soft key enables the
(FLEXnet) FN-DC charge termination. The FN-
DC determines the batteries are fully charged
when Charge parms met is satisfied. The MATE
then commands all inverters and charge control-
lers to terminate their charge cycle.Pressing the
soft key disables the FN-DC charge termi-
nation. Press the soft key to return to the
previous screen.
Press the soft key to advance to the next
ADV screen.
The FN-DC advanced grid tie authority screen
leads to screens allowing the FN-DC limited
control over the GTFX (grid-tie inverter/charger).
Pressing the soft key leads to those
controls—disabled or Charge parms met. This is
the last MATE ADV FN-DC screen.
In Charge parms met mode, the FN-DC detemines
if the batteries are fully charged, signaling the
MATE to enable the Master GTFX to sell power to
the grid (the GTFX must be gridtie mode enabled
first). At midnight every day, the MATE disables
the GTFX’s grid-tie mode. When a renewable en-
ergy source is available later during daylight hours
and the batteries are charged, sell mode returns.
Pressing the or soft keys toggles
the mode between Charge parms met and disabled,
which shuts off FN-DC gridtie enable.
ADV/MATE/PG3/FN-DC---------
enable FN-DC charge
termination: Yes
PG3 YES NO ADV
ADV/MATE/PG3------------------
advanced charger
float control
PG2 CC FN-DC PG4
ADV/MATE/PG4/MODE----
FN-DC gridtie enable
disabled
PG4 INC DEC ADV
ADV/MATE/PG4/MODE----
FN-DC gridtie enable
Charge parms met
PG4 INC DEC ADV
FLEXnet DC*
*Please see the FLEXnet DC User’s Guide for
all related MATE screens.
