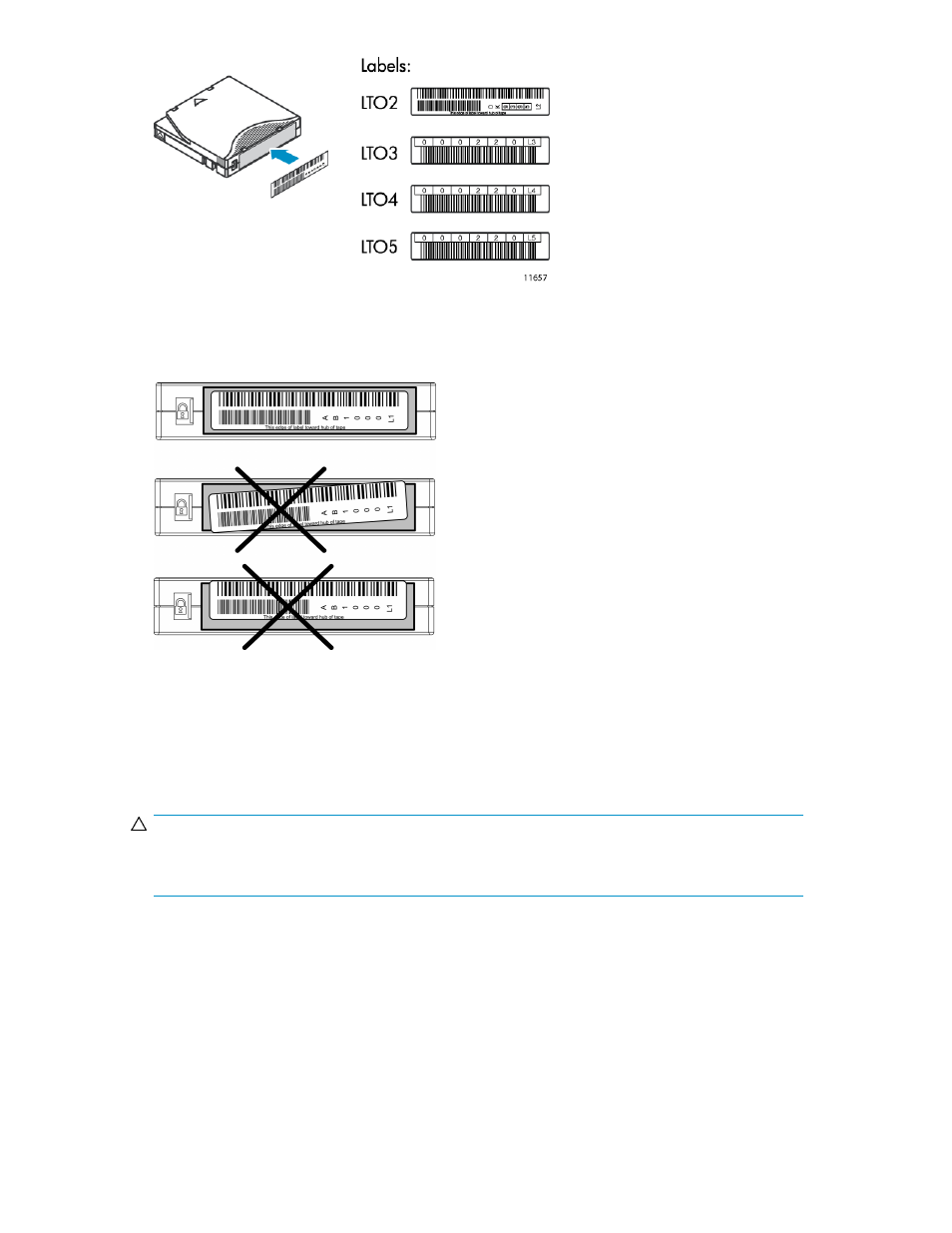

Figure 25 Attaching an Ultrium barcode label
.
For successful operation of your tape library, place the barcode label entirely within the recessed
area, ensuring that no part of the label is outside of it (see
Figure 26 ).
Figure 26 Proper Ultrium barcode label placement
.
SDLT barcode labels
SDLT cartridges have a front slide slot located on the face of the cartridge next to the write-protect
switch (see
Figure 27 ). Inserting the barcode label by sliding it into the slot.
CAUTION:
Do not apply labels to the top, bottom, sides, or back of the cartridge as this may cause damage to
the tape drive, or interfere with reliable operation.
HP StorageWorks ESL E-Series Tape Library 45
