Installing the Server in a Rack

Installing the Server in the Rack

To install the server in the rack:

1. Fully extend both intermediate slide members forward until they snap into the

locked position. Be sure the ball-bearing cages are in the forward most position.

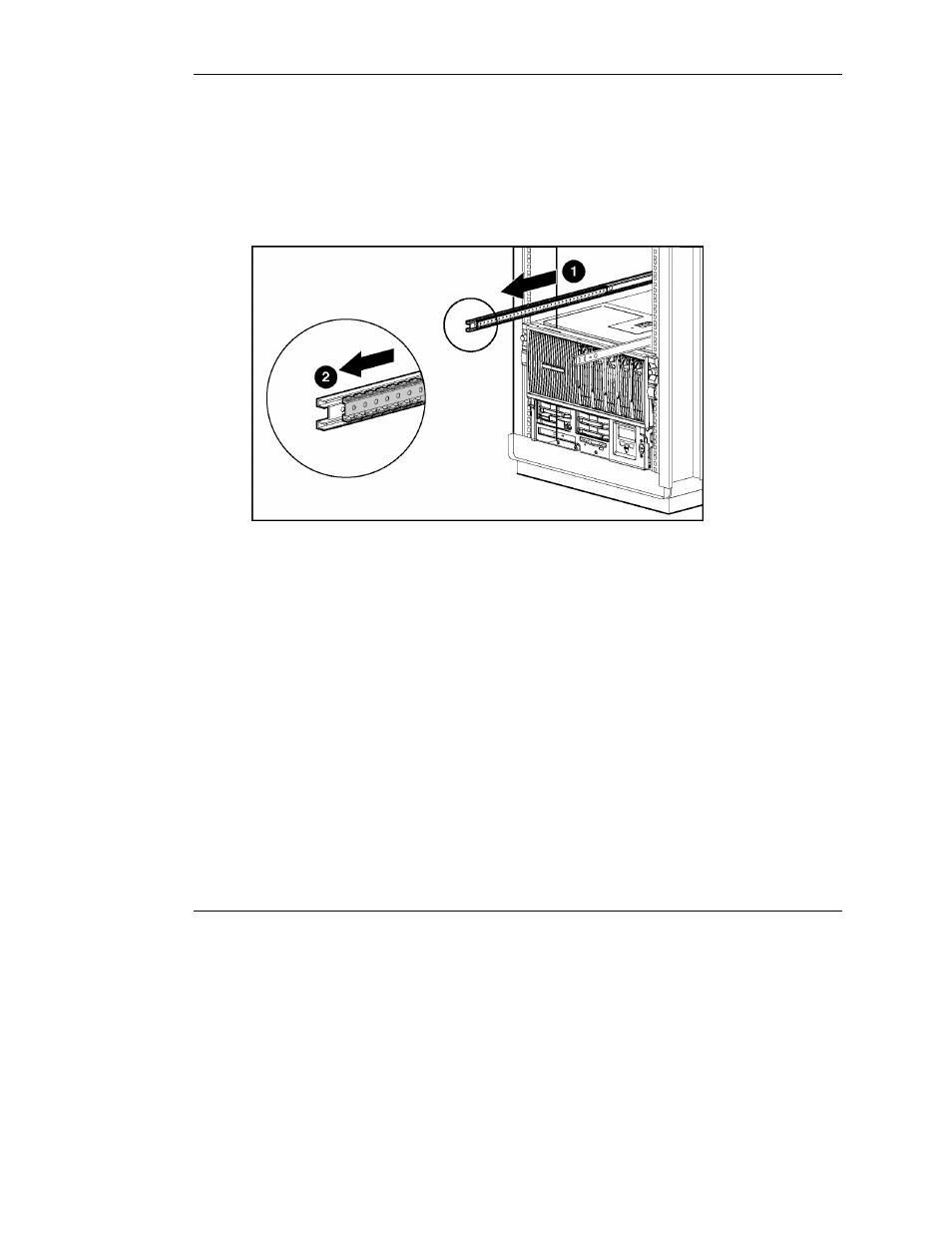

Figure 2-14: Extending the intermediate slide member

2-26

HP ProLiant DL760 Generation 2 Server User Guide

HP CONFIDENTIAL

Writer: Jennifer Hayward File Name: c-ch2 Installing the Server in a Rack.doc

Codename: Pioneer Part Number: 201264-002 Last Saved On: 6/17/03 9:22 AM
