Installing Hardware Options, Server Power Off
10. Insert the RILOE II board into slot 9 (1), pushing firmly until the board is
securely seated.
11. Close the expansion slot release lever from the rear of the unit to secure the
board (2).

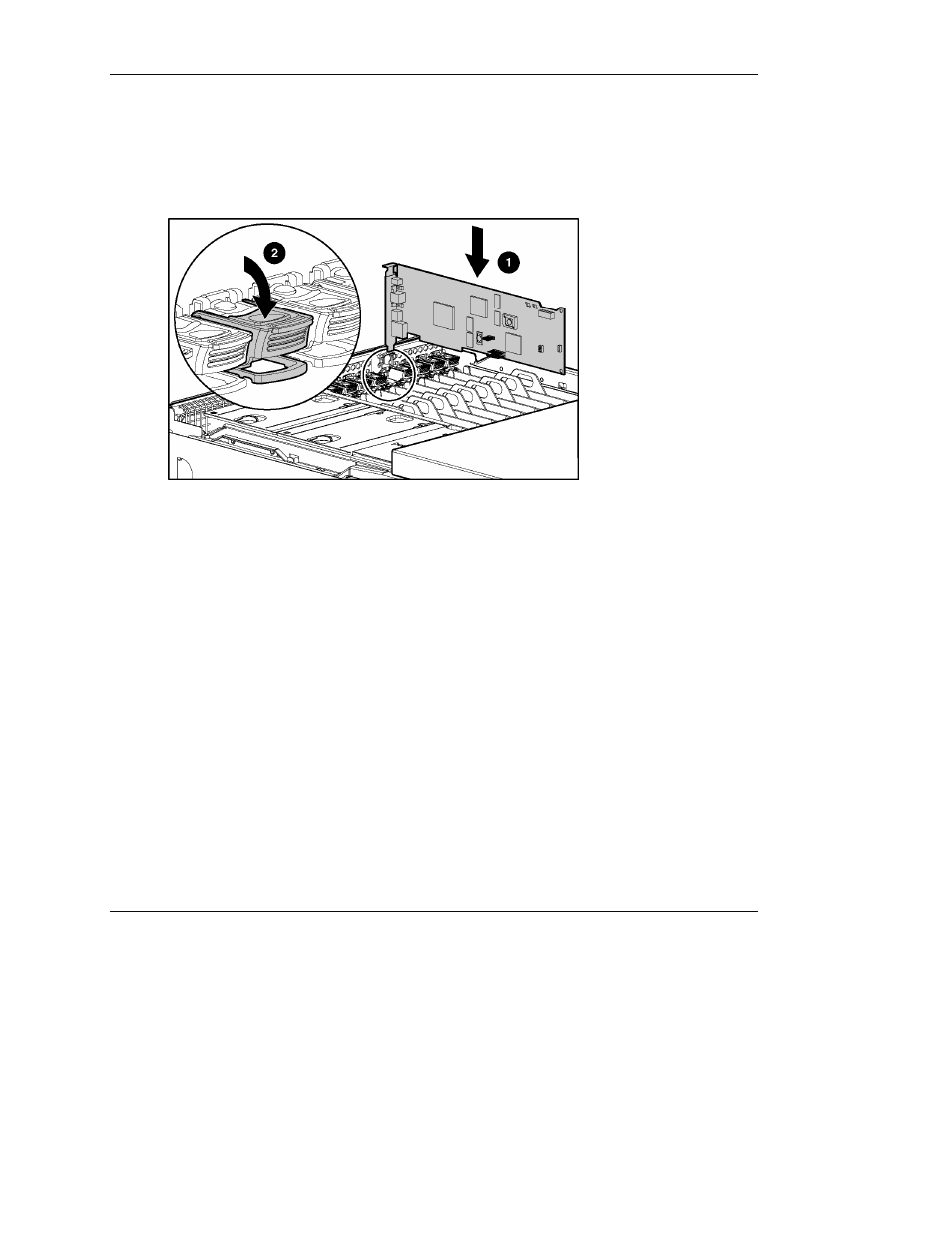

Figure 4-11: Inserting the RILOE II expansion board
12. Be sure that the end of the board catches under the self-latching slot keeper, and
then close the slot release lever at the back of the server.
The ProLiant DL760 G2 server uses a Remote Management connector (30-pin)
on the server I/O board to allow for virtual power button and virtual media
features.
13. Remove hot-plug fan 2 (refer to Chapter 5).
