Server Power
If an interconnect status indicator light is on, reseat the component represented by the
indicator. Refer to Appendix D for detailed LED descriptions. Refer to the hood
labels for component location.
IMPORTANT: To check system interconnect status indicator LEDs, place the server in
Standby mode with the power supplies plugged in. If the interconnect check light is illuminated
on the front of the server, refer to the interconnect LEDs on the top of the server.

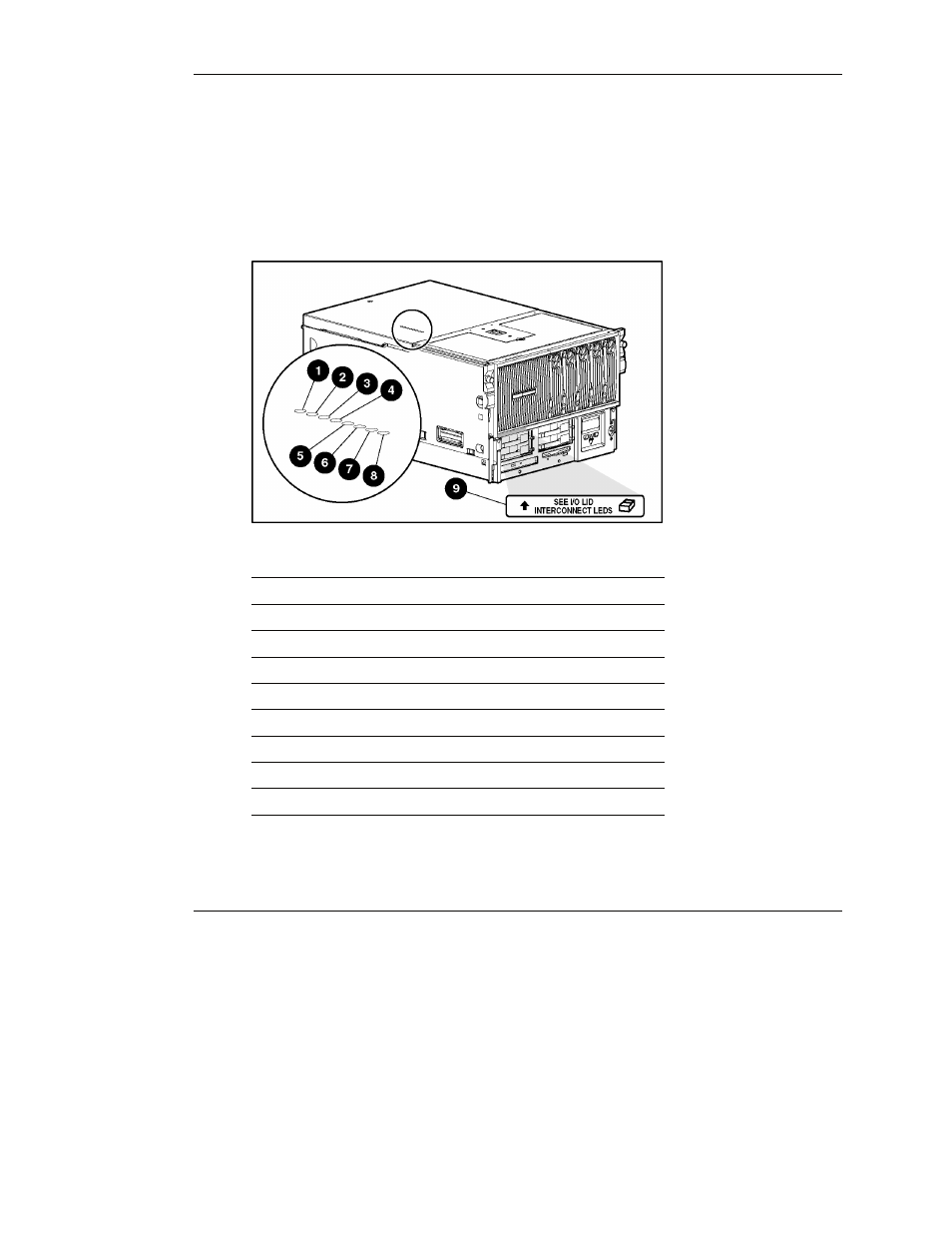

Figure 7-4: System interconnect status LEDs
Item Description
1
I/O module interconnect
2
Processor and memory module interconnect
3
Processor board 1 interconnect
4
Processor board 2 interconnect
5
Memory riser board interconnect
6
Media module interconnect
7
SCSI backplane 1 interconnect
8
SCSI backplane 2 interconnect
9
Interconnect check light
