LED Indicators and Switches
Hot-Plug SCSI Hard Drive LED Indicators
The hot-plug SCSI hard drive LEDs, located on each physical drive, are visible on
the front of the server or external storage unit. They provide: (1) Activity,
(2) Power/Online, and (3) Fault status for each corresponding drive when configured
as a part of an array and attached to a powered-on controller. Their behavior may
vary, depending on the status of other drives in the array.

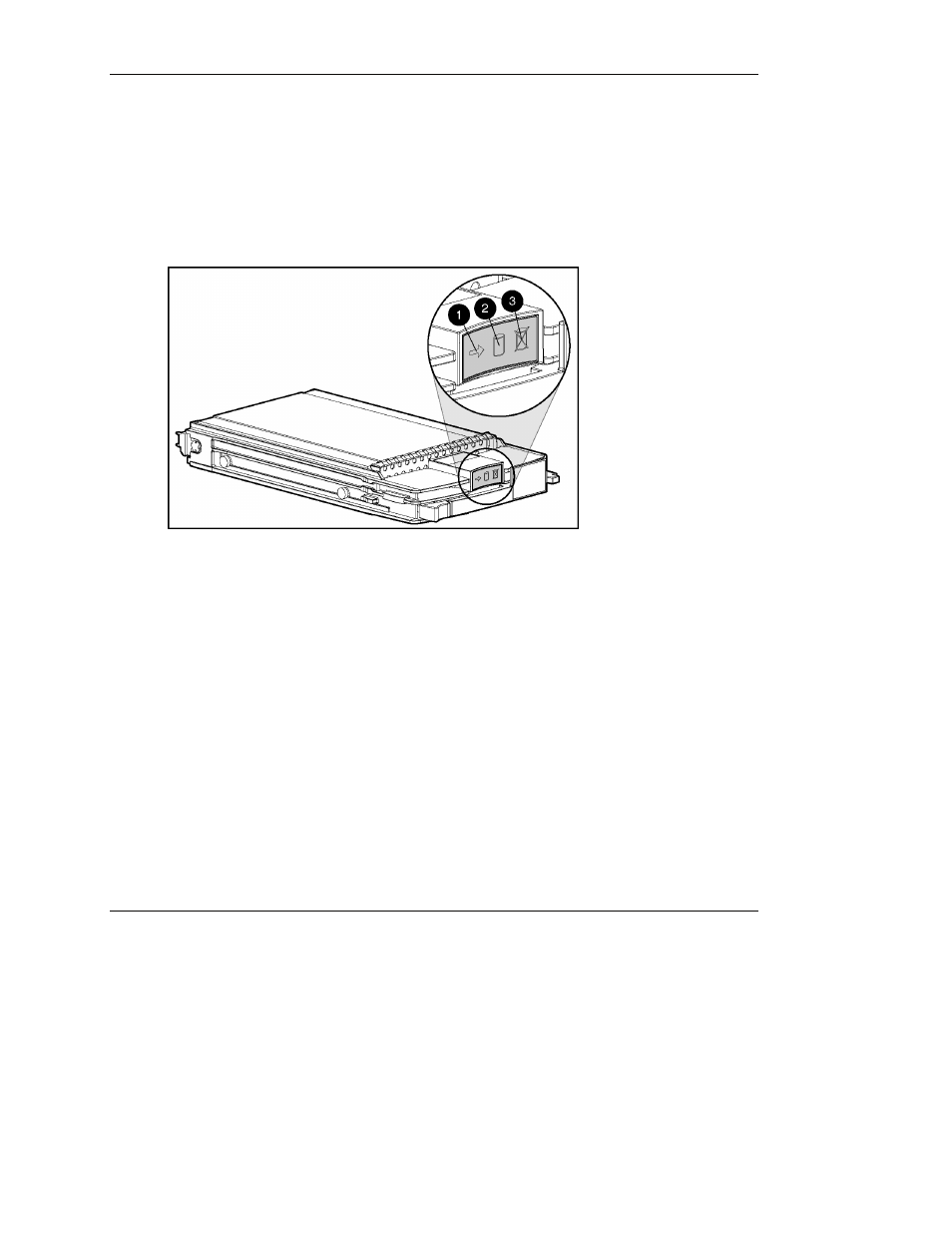

Figure D-6: Hot-plug SCSI hard drive LEDs
HP ProLiant DL760 Generation 2 Server User Guide D-7
