HP ProLiant DL760 G2 Server User Manual
Page 258

LED Indicators and Switches
If a status indicator light is on, reseat the component represented by the indicator.
Refer to the hood labels for component location.
IMPORTANT: To check system interconnect status LEDs, place the server in standby with
the power supplies plugged in. If the interconnect check light is illuminated on the front of the
server, refer to the interconnect LEDs on the top of the server.

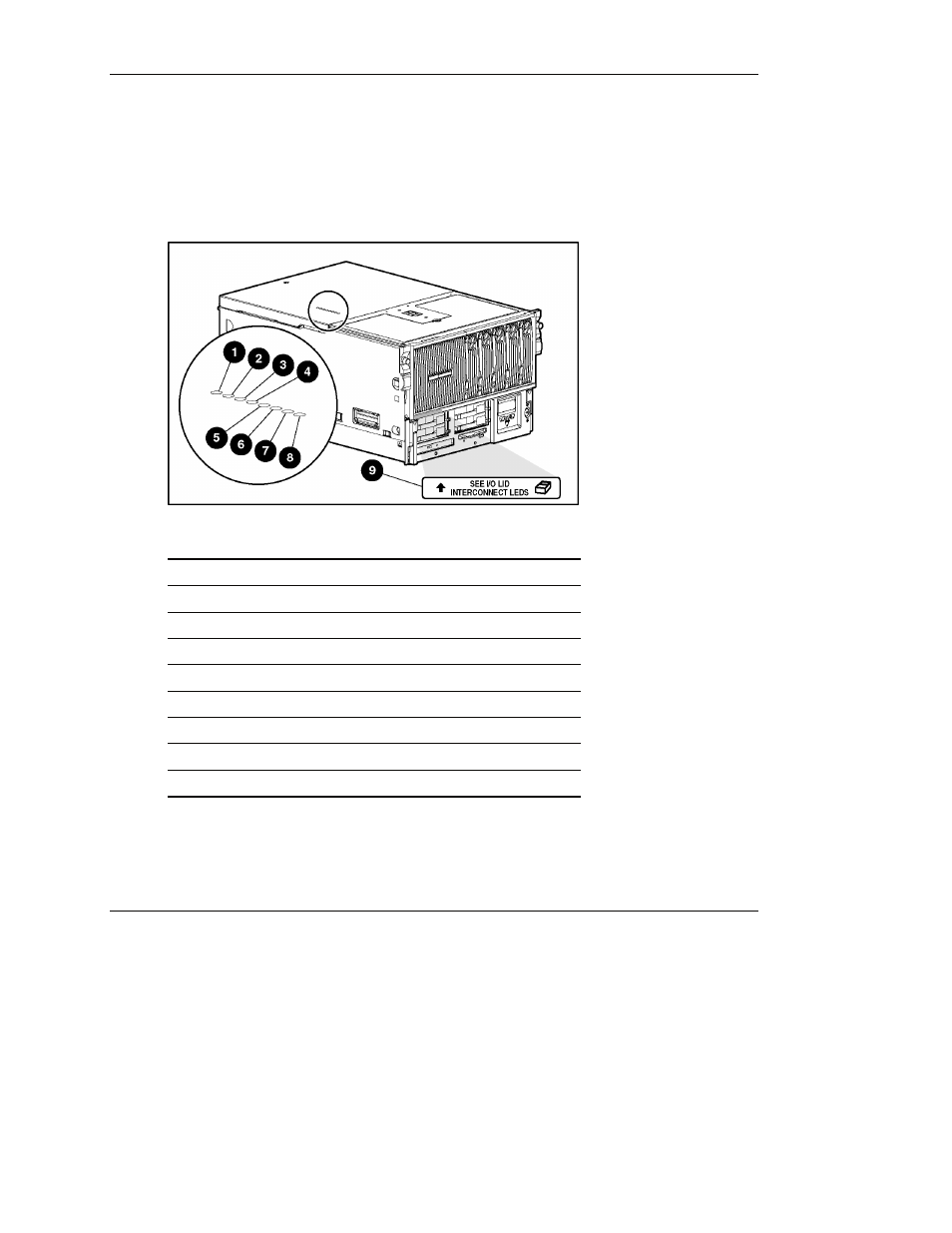

Figure D-4: System interconnect LEDs
Item Description
1
I/O module interconnect
2
Processor and memory module interconnect
3
Processor board 1 interconnect
4
Processor board 2 interconnect
5
Memory riser board interconnect
6
Media module interconnect
7
SCSI backplane 1 interconnect
8
SCSI backplane 2 interconnect
9
Interconnect check light
