16. Connect the Integrated Array Bypass assembly cable to the optional array
controller board as shown in Figure 4-21.

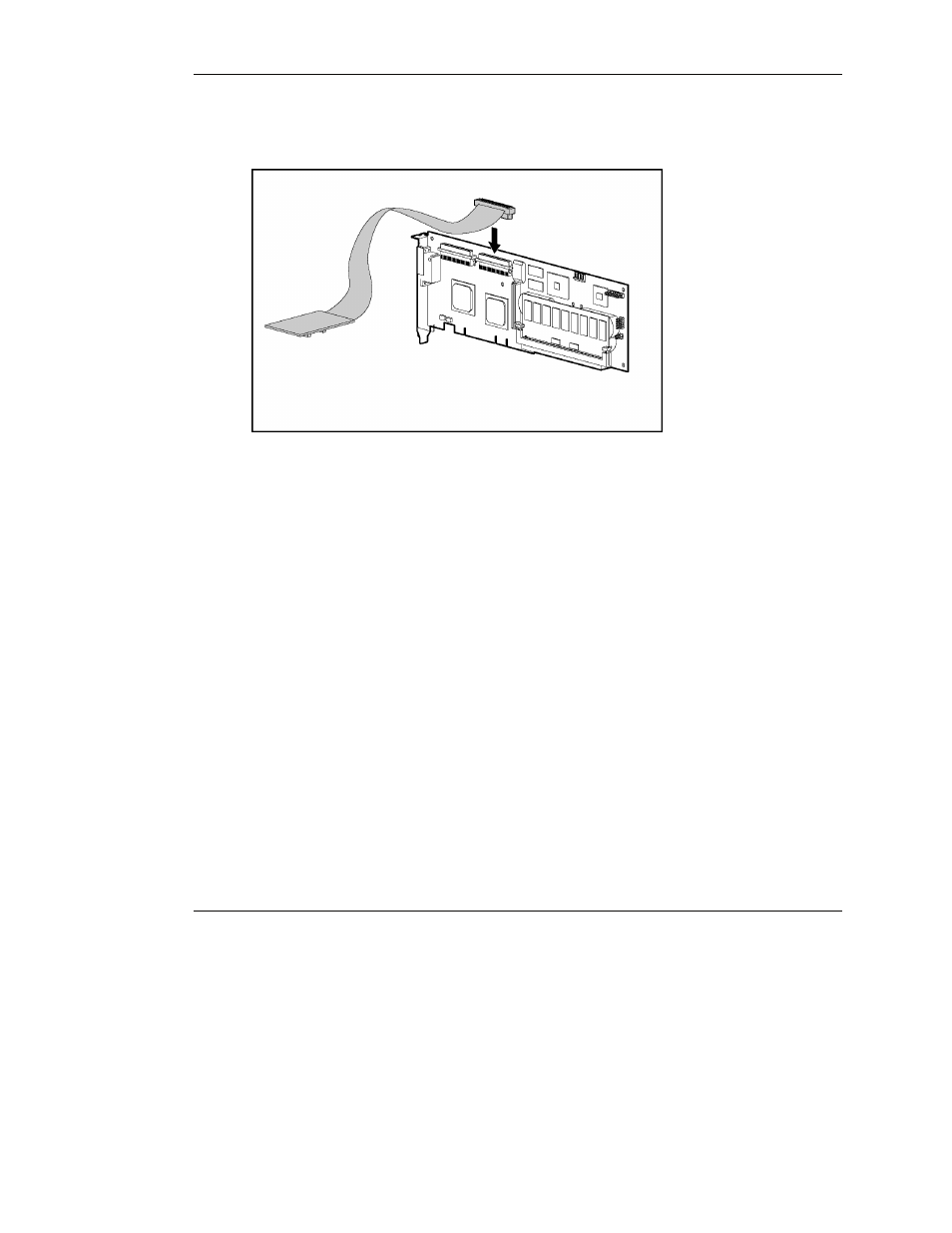

Figure 4-21: Connecting the Integrated Array Bypass
assembly cable
NOTE: The actual appearance and routing of the cable in the preceding figures depend
on which slot the optional array controller board occupies.
17. Close the I/O lid and slide the server into the rack.
18. Connect all power cords and power up the server (Refer to Chapter 7).
19. Run the ROM-Based Setup Utility as described in Chapter 8.
20. Configure the new controller with the Option ROM for Configuration Arrays
(ORCA) or the Array Configuration Utility (ACU), as described in Chapter 8.
NOTE: Refer to the documentation included with the optional controller for more
information about SCSI setup and configuration.
