Installing Hardware Options, Hot-Pluggable
Memory Cartridge LED Indicators
The ProLiant DL760 G2 server has LEDs for each of the memory cartridges. These
LEDs are used to determine the status of memory installed in the server.

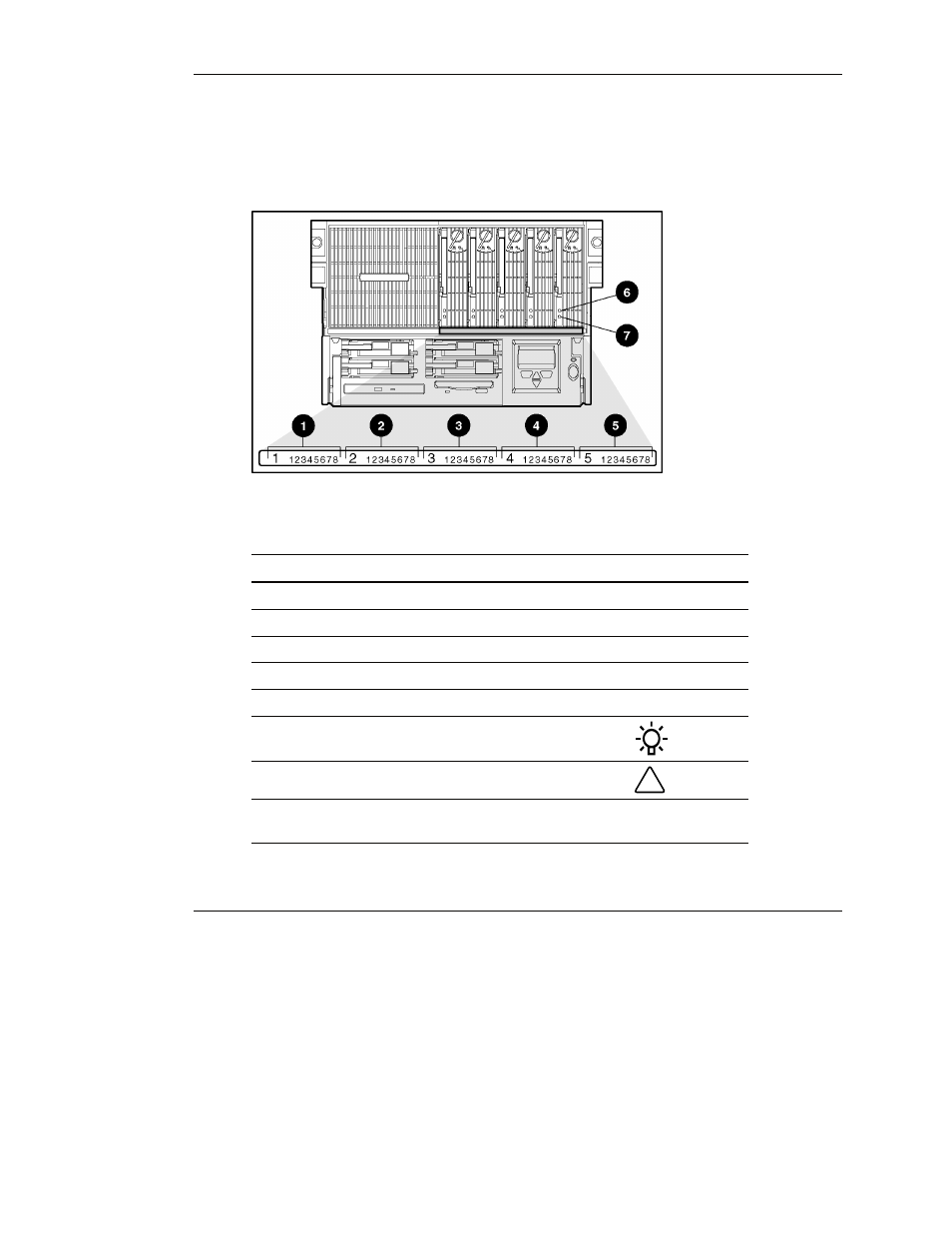

Figure 5-3: Memory cartridge LEDs
Table 5-1: Memory Cartridge LEDs
Item LED Indicator LED Icon
1 Cartridge 1 DIMM status LEDs 1 2 3 4 5 6 7 8
2 Cartridge 2 DIMM status LEDs 1 2 3 4 5 6 7 8
3 Cartridge 3 DIMM status LEDs 1 2 3 4 5 6 7 8
4 Cartridge 4 DIMM status LEDs 1 2 3 4 5 6 7 8
5 Cartridge 5 DIMM status LEDs 1 2 3 4 5 6 7 8
6 Cartridge power LED
7 Cartridge attention LED
Note: These LEDs are backlit through icon lenses. The icon only shows
when the LED is illuminated.
