4.

Remove the top cover (

Figure 119 (page 248)

):

a.

Loosen the screw on the top cover with the T-10 wrench.

b.

Press the latch on the top cover.

c.

Slide the cover toward the rear of the server and then lift the top cover to remove it from
the chassis. Lift the top cover away from the chassis.

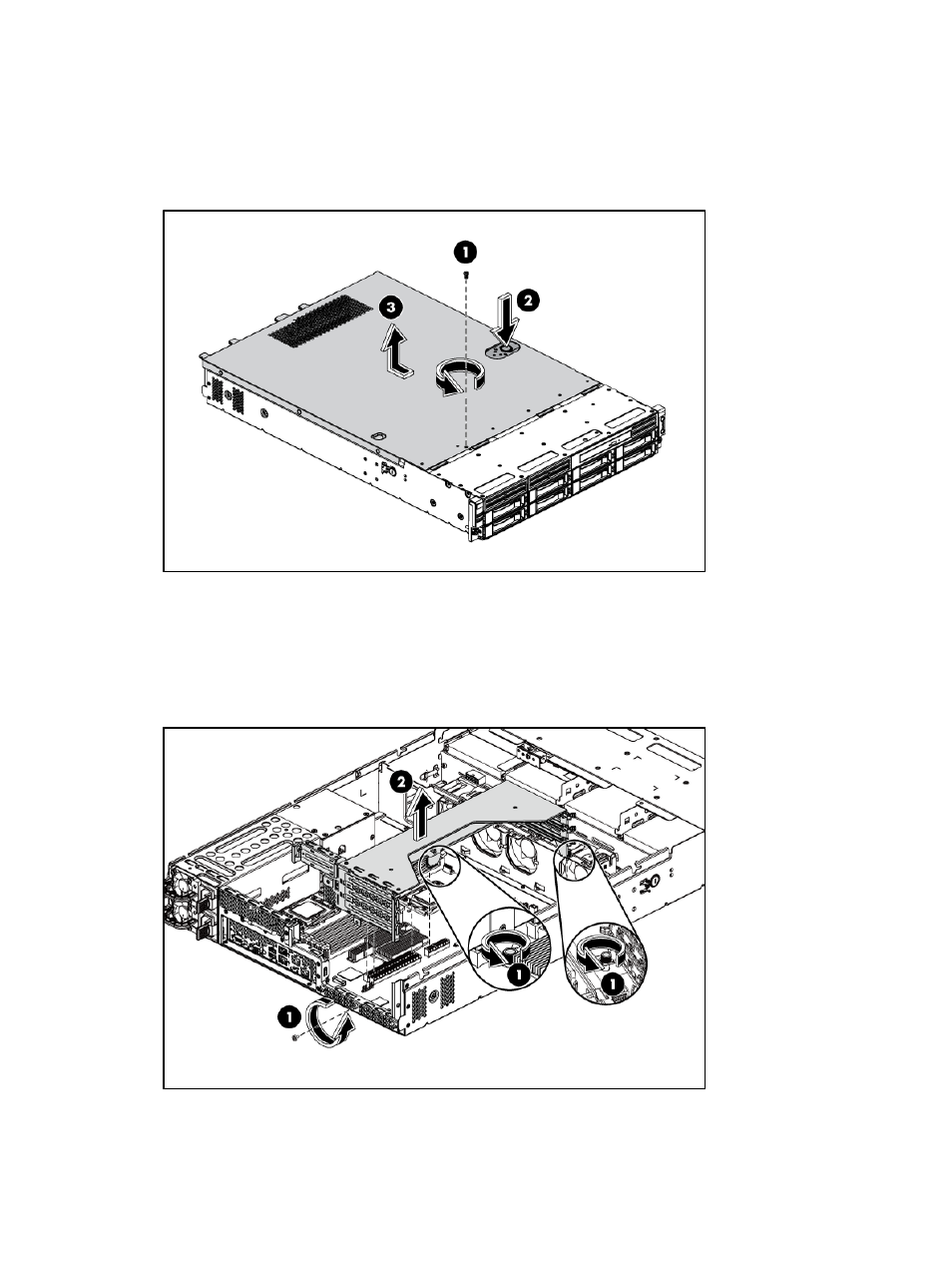

Figure 119 Removing the cover

5.

Locate and remove the PCI cage:
a.

Loosen the thumbscrews that secure the PCI cage to the system board and remove the
screw that secures the PCI cage to the rear of the server (1,

Figure 120 (page 248)

).

b.

Lift the PCI cage away from the system board (2,

Figure 120 (page 248)

).

Figure 120 Removing the PCI cage

248 Replacing hardware
