65
4 Visualization
Activate batch
texts If a line in a batch report is configured for barcode activation, the activation
proceeds as follows.
Activate text:

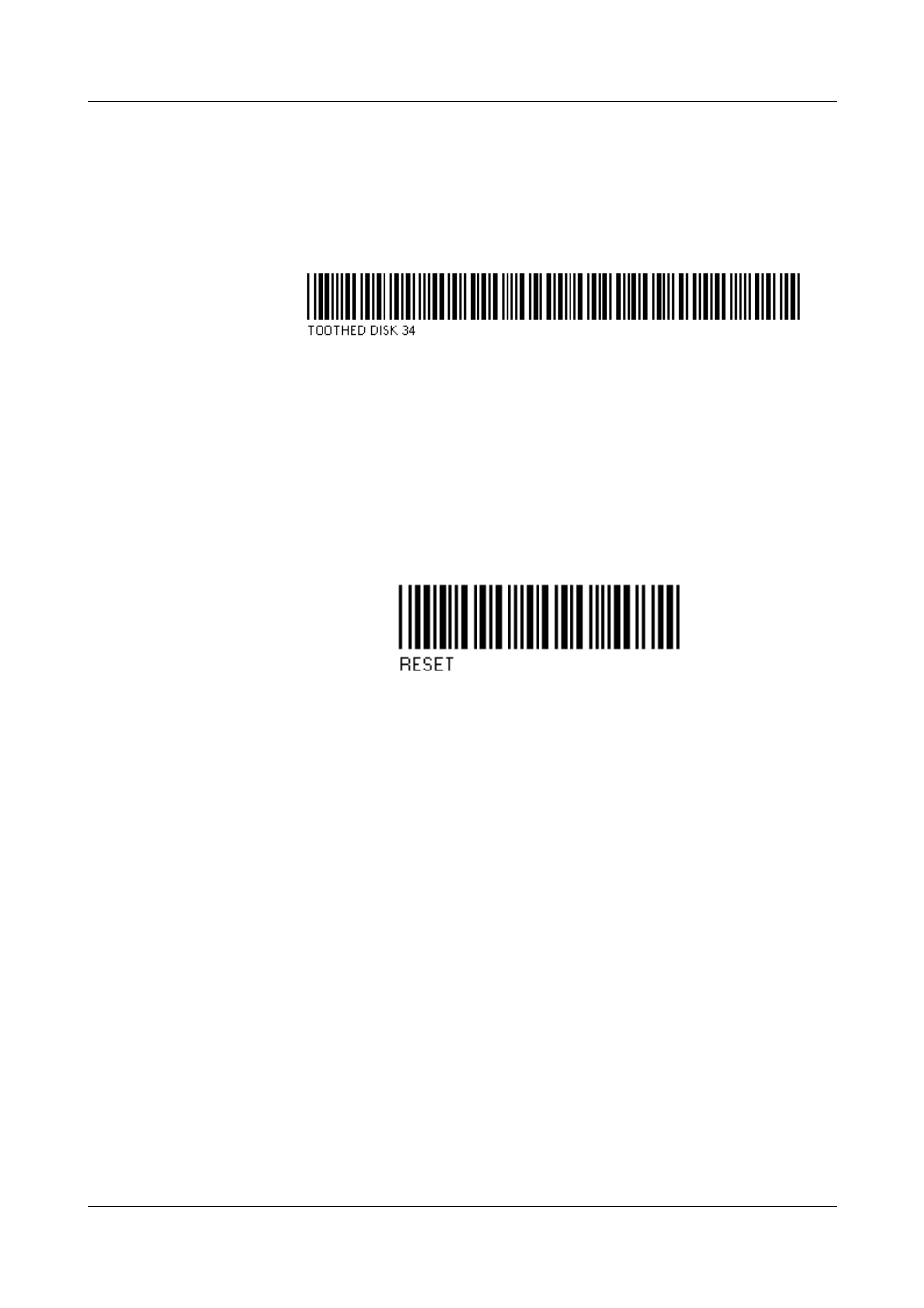

h Scan bar code for “Batch report for batch (plant) 1 — 3”.
Scan text.
The first line of the activated batch report that has been configured for text
input via bar code will automatically be filled with the text that corresponds to
the bar code. If several line have been configured for barcode activation, then
they will be processed one after another, from top to bottom.
Reset
entry Execution of the following bar code will reset the activation of the batch texts.
The standard texts (parameter Factory setting) will be displayed, and the first
line will be prepared for input.
Summary of the
bar codes All the bar codes that are required are also collected together in Chapter 28.1
"Bar code".
H
The codes for batch control (BATCH1, BATCH2, BATCH3, START,
STOP, RESET) cannot be used for setting batch texts.
