12 Configuration - Screen
102
Show
curves
(diagrams) This parameter determines whether curve presentation may be called up in the
Visualization menu.
Show bar
graph This parameter determines whether bar graph presentation may be called up
in the Visualization menu.
Show text
image This parameter determines whether textual presentation may be called up in
the Visualization menu.
12.2 Show process image … Bar code -> current batch
Overview
Show process
image This parameter determines whether process image presentation may be called
up in the Visualization menu.

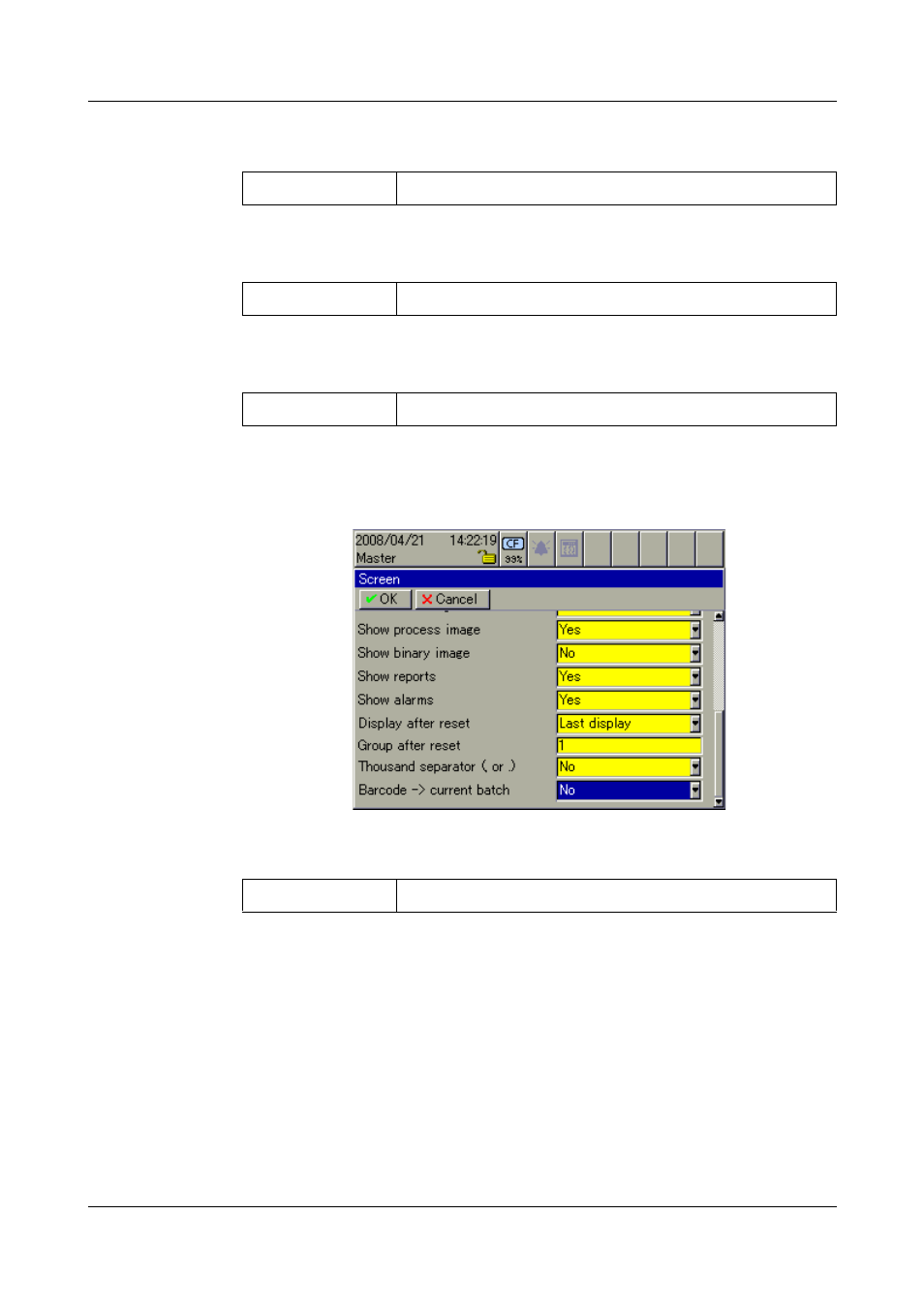

The display shows selected measurement signals and background pictures in
one process screen (one process screen for each group). The setup program
is used to prepare and configure images.
Yes Curve presentation can be called up.
Yes Bar graph presentation can be called up.
Yes Textual presentation can be called up.
Yes Process image presentation can be called up.
