18 Configuration - Groups
Overview

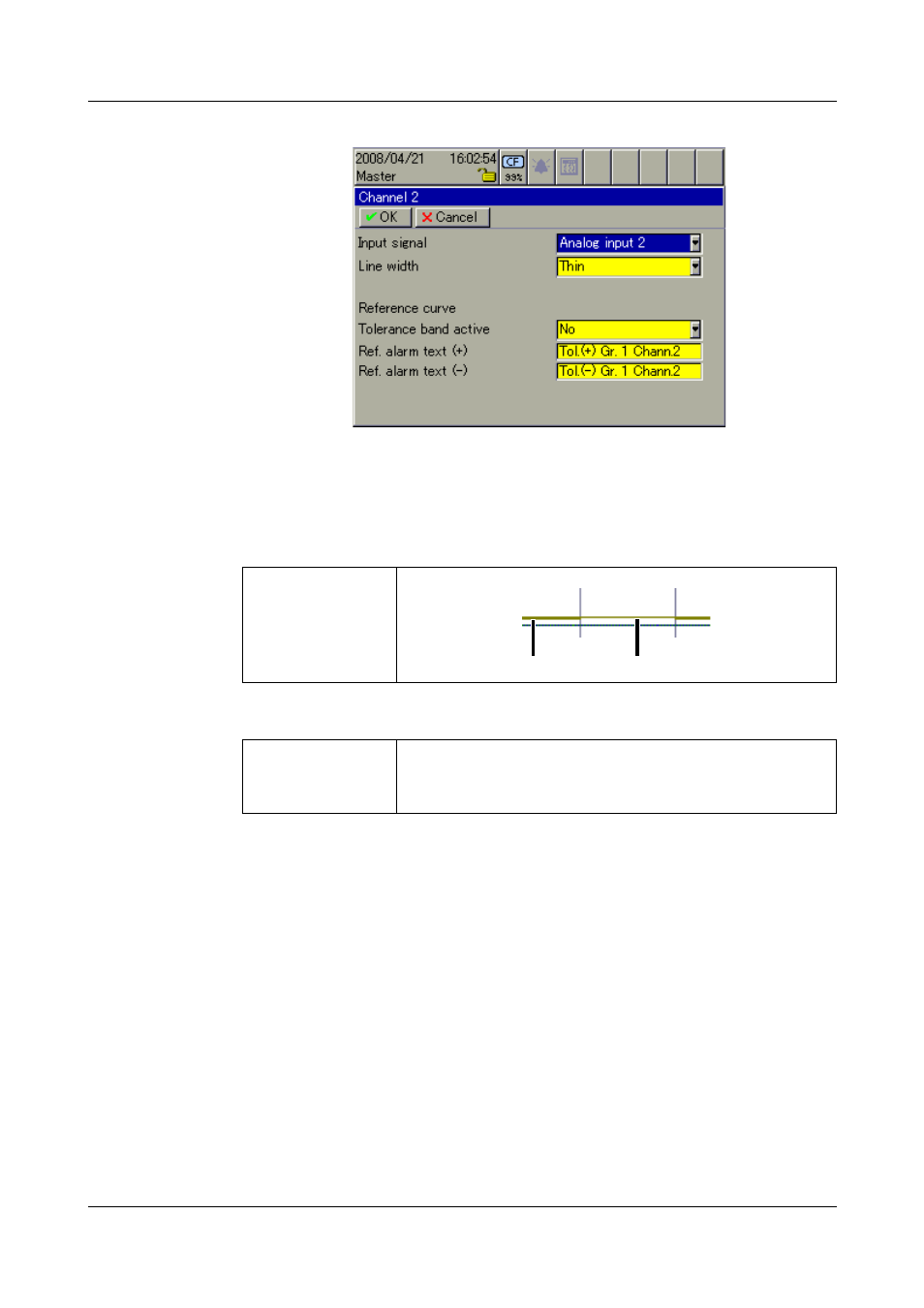

Channel 2 —
Channel 6
Input signal The input (or input signal) selected here will be used as channel no. 2 — 6 for
the group. All internal or external analog channels, as well as math channels
(available as an extra), can be chosen.
Line width Determines the width of the graphical measurement display.
Tolerance band
active If this function is active, the channel is compared with Channel 1 of the group.
Ref. alarm text
(+) The text that was entered (up to 21 characters) is displayed in the “status &
title bar” and entered in the alarm or event list if the selected channel leaves
the tolerance in the positive direction.
Ref. alarm text
(-) The text that was entered (up to 21 characters) is displayed in the “status &
title bar” and entered in the alarm or event list if the selected channel leaves
the tolerance in the negative direction.
Thin/thick
Thin Thick
Yes Tolerance band comparison is active.
Please note that Channel 1 of the group must be active
(Input signal <> Inactive).
