4 Visualization
58

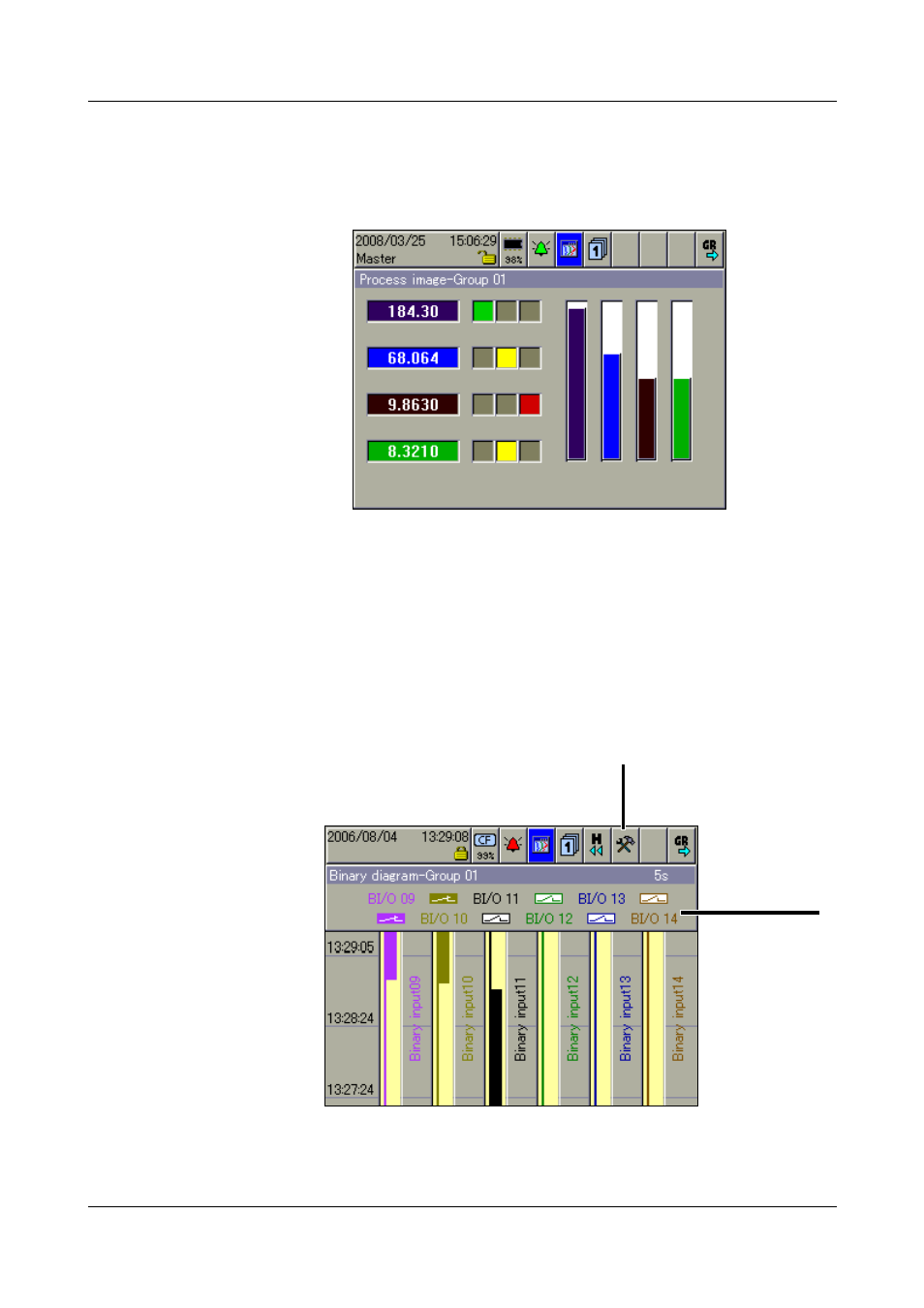

4.6 Process Image Presentation
The display shows selected measurement signals and background pictures in
a maximum of nine process images. The setup program is used to prepare
and configure the images.
4.7 Binary diagram presentation
In this presentation, the analog channels are left out and only the binary
channels and signals are visualized.
H
Each process image can be freely configured by the user. One
background image (316 × 188 pixel)
and 25 objects (analog/binary
signals, icons, texts, bars) can be used per process image.
Further information can be obtained from the instructions on the
setup program (59492).
Switch diagram header
on/off
Diagram header
