4 Visualization
54
4.2

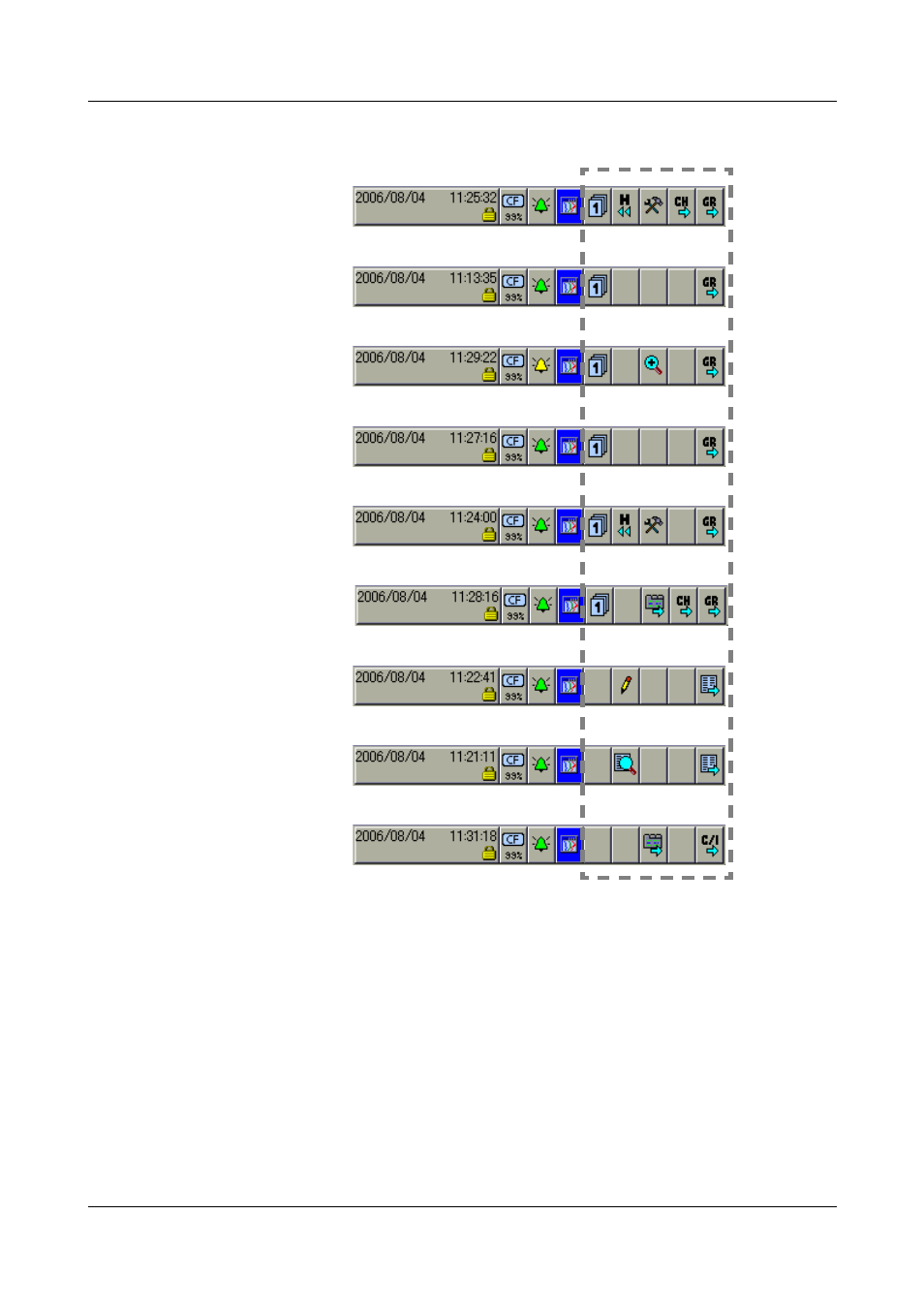

Overview of Header Lines
Curve
presentation
(diagram)
Bar graph
presentation
Text picture
presentation
Process image
presentation
Digital
presentation
Reports
Batches
(current)
Batches
(completed)
Counters and
integrators
Comment entry
The comment entry does not have its own header. The current header will
remain when this function is activated. The comment that has been entered is
placed in the event list.
H
The first four functions in the header are identical for all
visualizations. These are supervisory functions (see “Header” on
page 43).
Differences only arise in the last five functions.
