21 Configuration - Counters/Integrators
21.4 Range Start … Alarm Configuration
Overview
Range start and
range end

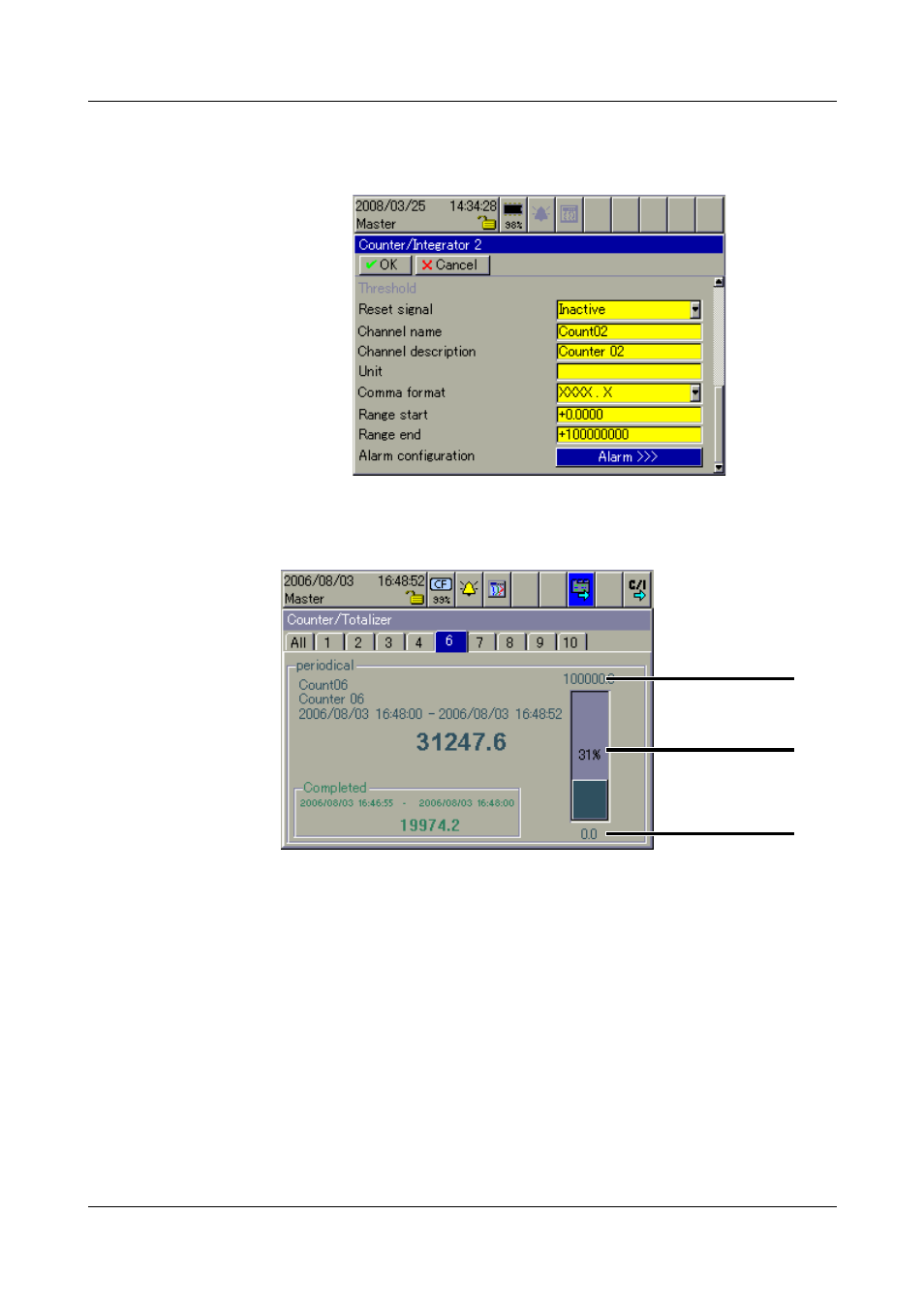

Range start and range end determine the lower and upper limit of the bar
graph display.
Alarm
configuration
Opens the submenu for the configuration of both alarms.
H
Counters/integrators are represented with a maximum of 9 digits.
At overflow that restart at 0.0.
Range end
Range start
Progress in %
