18 Configuration - Groups
130

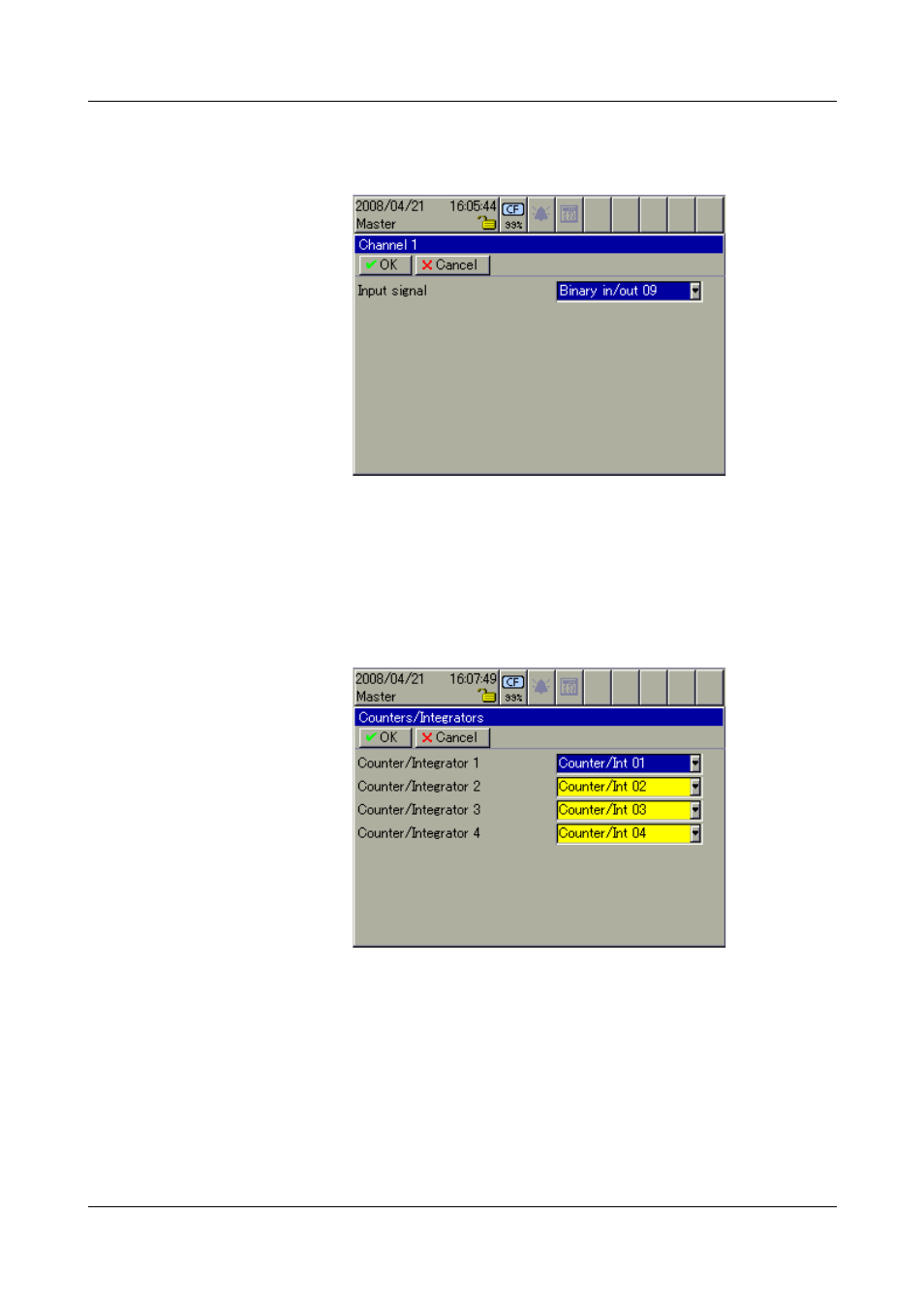

18.3 Binary Channels
Overview
Input signal The binary input/output or signal is selected here that will be used for
visualization. Max. 6 binary channels can be visualized and recorded in a
group.
18.4 Counters/Integrators
Overview
Counters/
integrators
(totalizers) Up to 4 out of a total of 27 available counters/integrators can be assigned to
the group. As a result of the assignment of the counters to a group, it is
possible to allocate the counter and integrator alarms to the batches (plants)
and to enter them in the corresponding alarm and event lists.
v Chapter 3.3 "Group and Plant Management (Batches)"
All 27 counters can be read off in each group in the PCA3000 Evaluation
software. The four that have been allocated here are normally visible, the
remaining ones can be switched into display as required.
