15 Configuration - Relay
The response of the relay(s) of the recorder are configured in this menu. How
to connect the relay(s) is described in the Installation Instructions 59488
(connectors 1 and 14, depending on the equipment level of the individual
module slots).

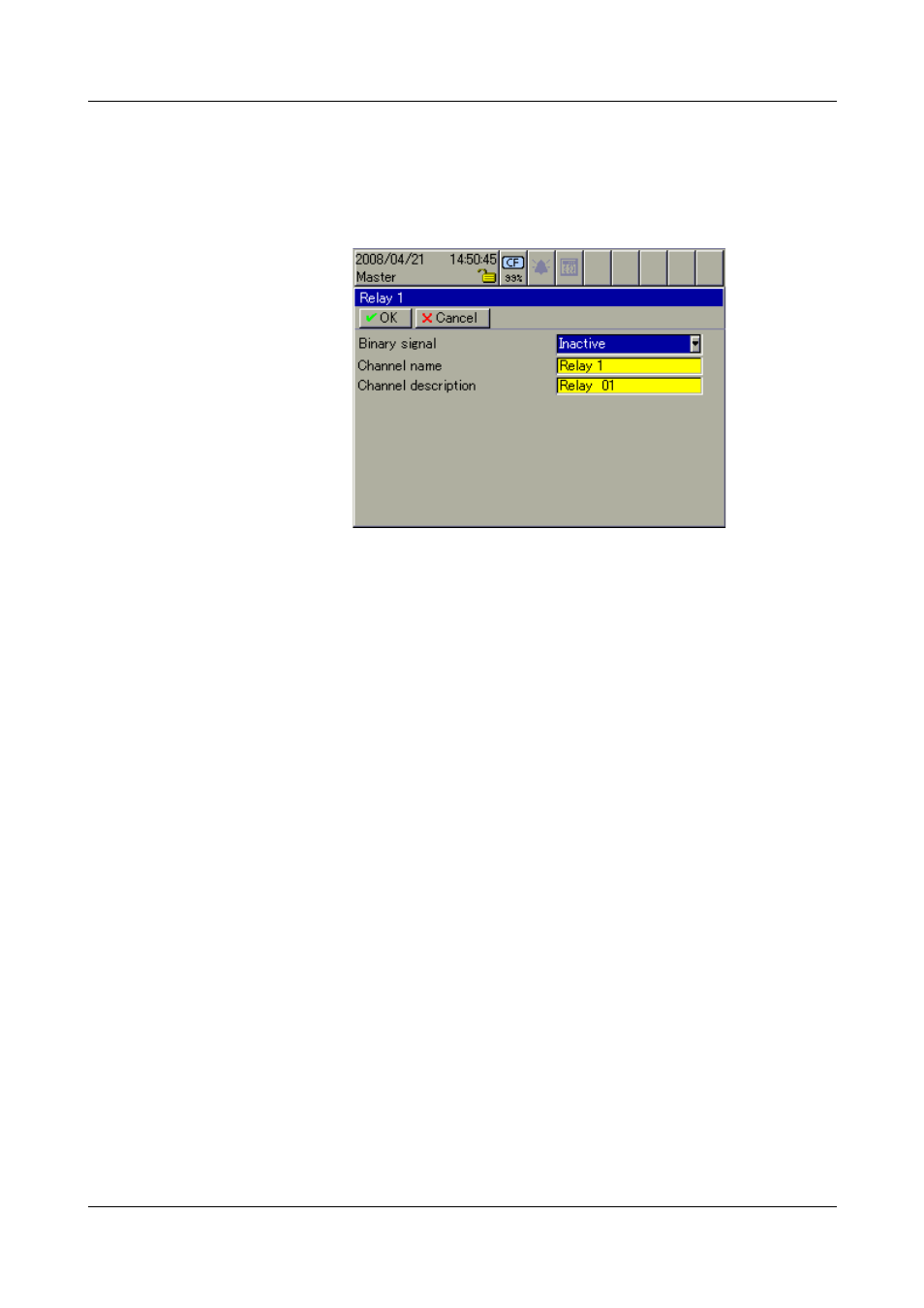

Overview
Binary signal Selection of the signal the chosen relay is to switch.
Channel name
(designation) Short designation for the relay, up to 7 characters. The channel name is
displayed in the individual visualization modes, together with the channel
designation.
Channel
description Description of the relay, up to 21 characters. The channel description is
displayed in the individual visualization modes, together with the channel
name.
