13 Configuration - Analog Inputs
The sum of the resistances (Ra+Re+Rs) must not exceed 4000 Ohm.
Resistance
R0 — Rp The resistance values can only be entered with the sensor type
“potentiometer”.
The sum of the resistances (R0+Rp) must not exceed 4000 Ohm.
Channel name
(designation) Short designation for the analog input, up to 7 characters. The channel name
is displayed in the individual visualization modes, together with the channel
designation.
Channel
description Description of the analog input, up to 21 characters. The channel description
is displayed in the individual visualization modes, together with the channel
name.
Unit Unit in which the acquired measurement signal is to be displayed, up to 5
characters. The unit is displayed wherever the measurement is presented
numerically.

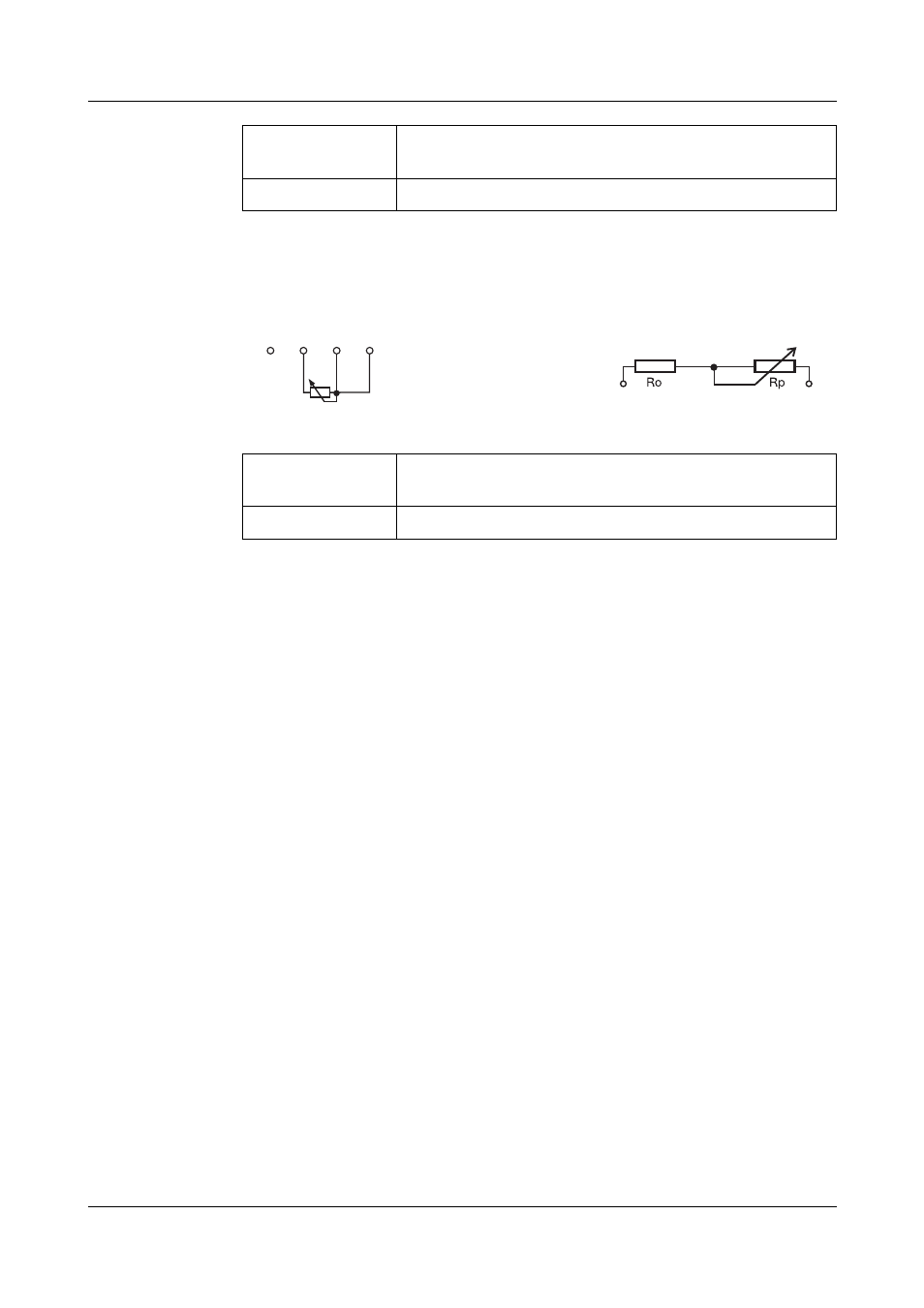

Re Resistance between slider and start, if the slider is at the
start.
Rs Total resistance minus Ra and Re.
R0 Resistance between slider and start, if the slider is at the
start.
Rp Total resistance minus R0.
2 1 3 4
