2 Instrument Description
18

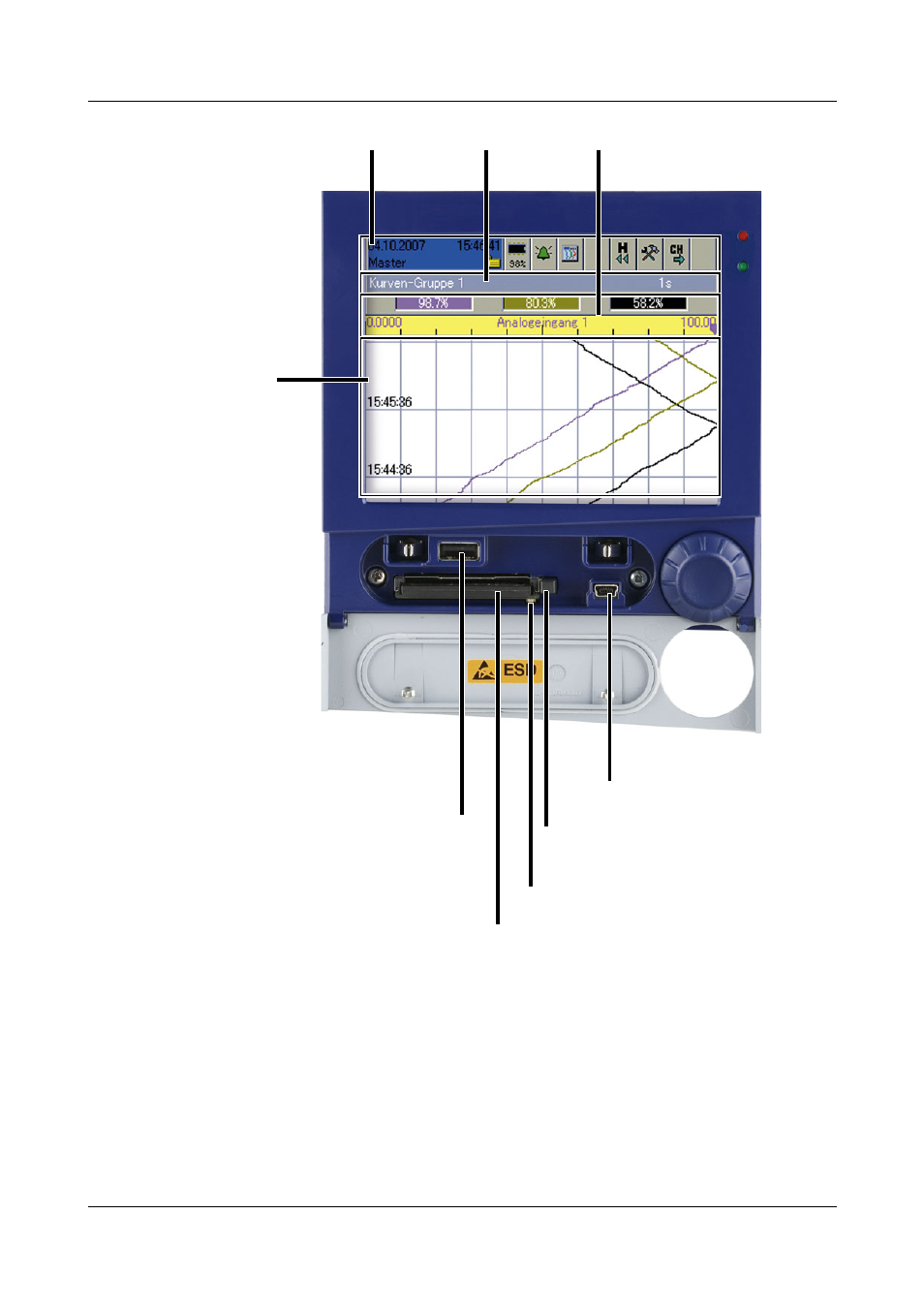

Recorder with
zinc die-cast
panel
A
The CompactFlash memory card must not be removed during
access (signal LED is on).
The USB interfaces are not designed for continuous use.
H
The life of the background illumination can be prolonged by
using the parameter “Screen off”.
USB host
for data exchange
(measurement data,
configuration data,
user lists) between the
recorder and the PC
USB device
for communication with the
setup program or PCC
Header Status &
title bar
Ejector for the CompactFlash
memory card
Numerical
measurement display
V
isualization window
(dia
gram)
CompactFlash slot
for data exchange
(measurement data, configuration
data, user lists) between the
recorder and the PC
Signal LED
Light is on during access to the
CompactFlash memory card.
