Profiler Option
59407, Issue 1 – March 2008
Loops Segments

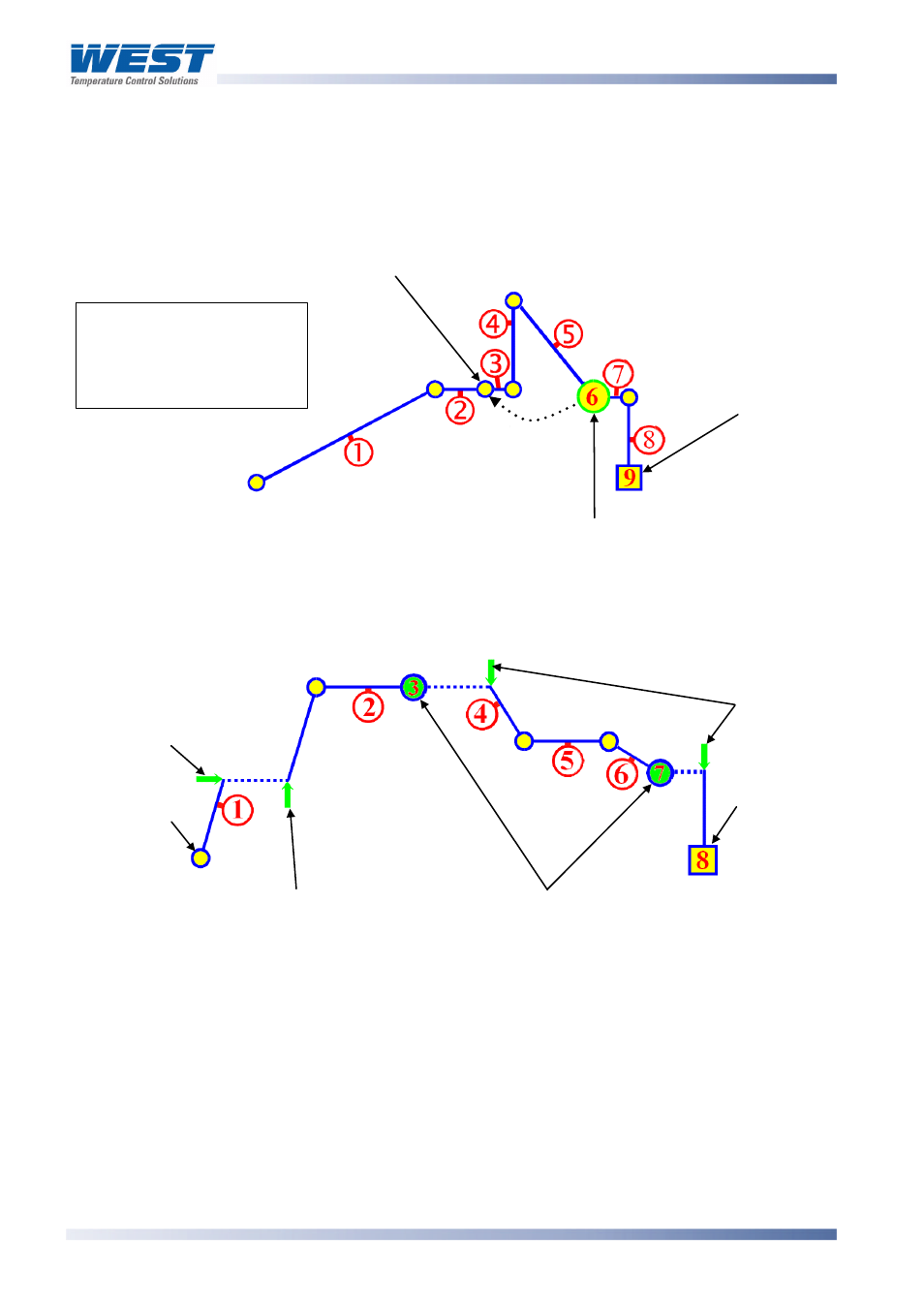

A Loop Segment goes back to a specified segment. This action is repeated for the required
number of times (1 to 9999) before the profile continues onwards. More than one Loop
Segment can be used in a profile, but they must not cross.
Loop back target segment
End
Loop Segment
Figure 39.
Loops Segments
Profile Running / Holding vs. Hold Segments
Hold Start
Run
Continue
Triggers
End
Hold Stop
Hold Segments
Figure 40.
Run/Hold & Hold Segments
A Hold during a segment maintains the current setpoint value. Once the hold is stopped the
Ramp or Dwell continues. Depending on the configuration, a hold can be the started &
stopped by via a key-press, breaking the signal to a Run/Hold digital input, a serial comms
command or by the Auto-Hold feature (see below).
Note:
A running profile will also hold while Manual Control is selected.
A Hold Segment is a pre-planned hold, programmed into the profile. It maintains the value of
the previous segment. The profile does not continue until a Continue Trigger occurs. This
can be via a key-press, a digital input signal or after waiting for a time of day (available on
Recorder version only).
x 500
Example:
Runs segments 1 to 5, then
repeats segments 3 to 5 for 500
times, before continuing on to
segments 7 to 9,
