NANO-945GSE EPIC Motherboard

Page 70

STATUS

DESCRIPTION

STATUS

DESCRIPTION

GREEN Activity

YELLOW

Linked

Table 4-27: RJ-45 Ethernet Connector LEDs

4.4.3 Serial Port Connector (COM1)

CN Label:

COM1

CN Type:

DB-9 connectors

CN Location:

See

811H862H

Figure 4-24 (see 2)

CN Pinouts:

See

812H863H

Table 4-28 and

813H864H

Figure 4-27

The 9-pin DB-9 serial port connectors are connected to RS-232 serial communications

devices.

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 DCD

6 DSR

2 RX

7 RTS

3 TX

8 CTS

4 DTR

9 RI

5 GND

Table 4-28: RS-232 Serial Port (COM 1) Pinouts

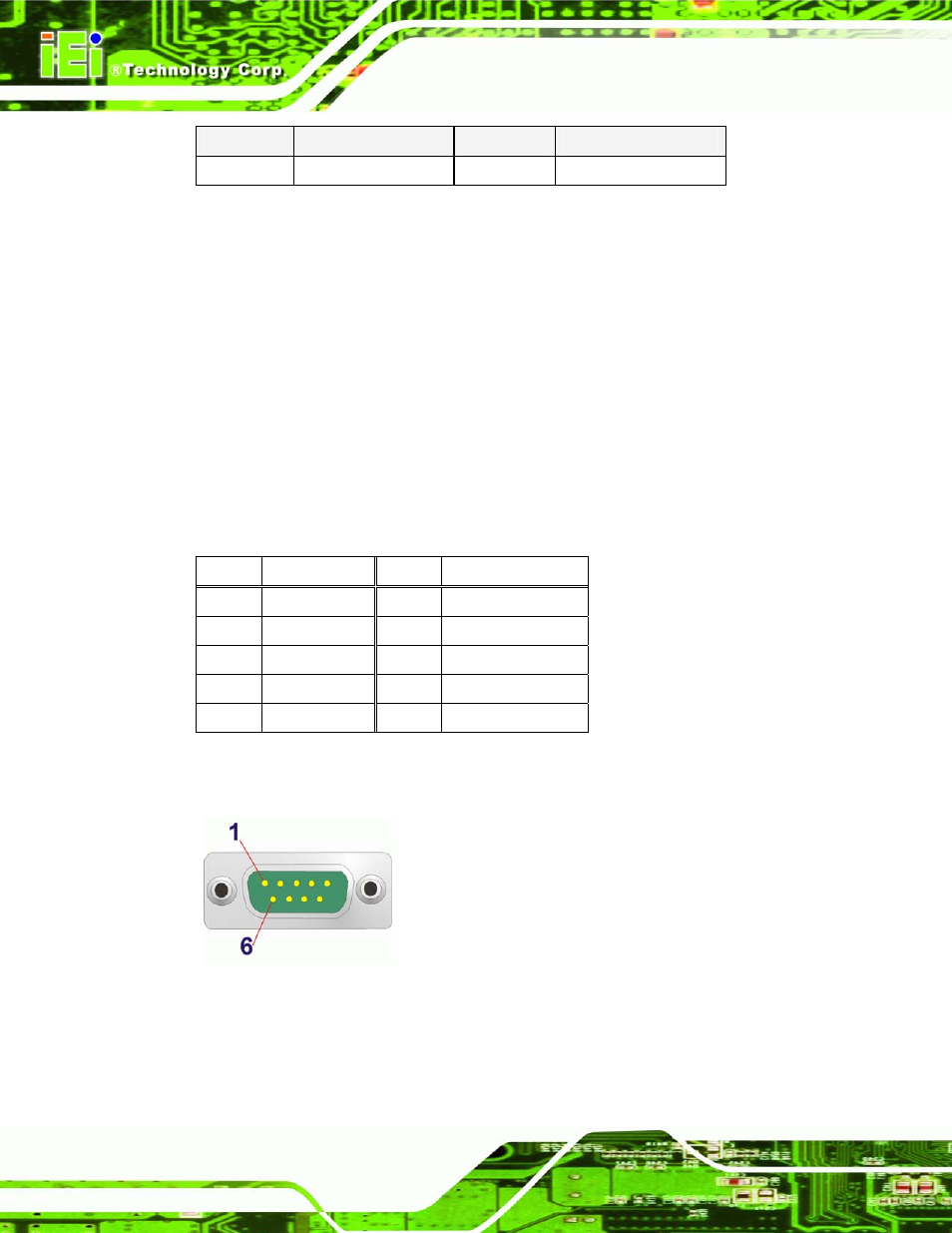

Figure 4-27: COM1 Pinout Locations
