NANO-945GSE EPIC Motherboard
Page 95

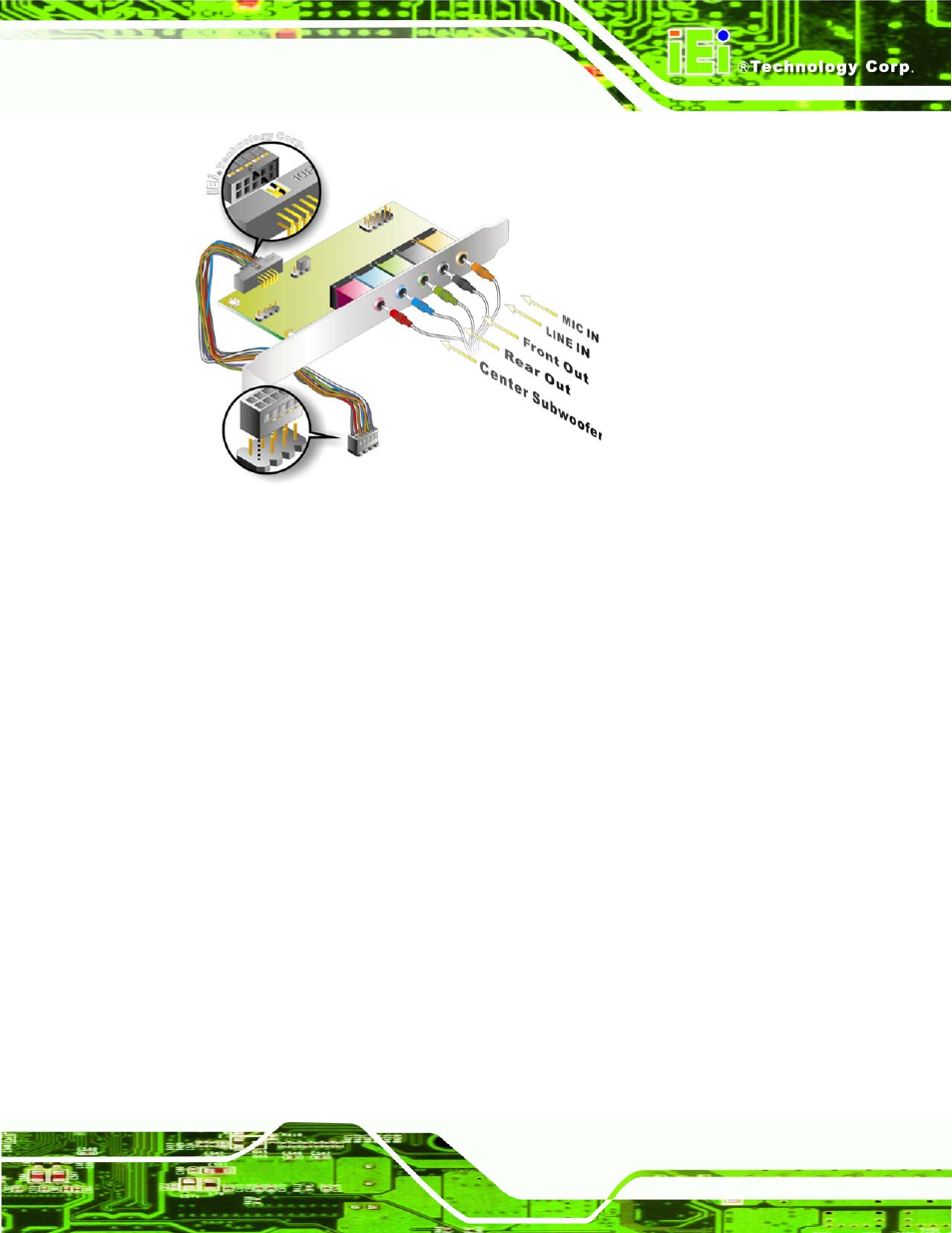

Figure 5-14: 7.1 Channel Audio Kit
Step 4: Mount the audio kit onto the chassis. Once the audio kit is connected to the
NOVA-9452, secure the audio kit bracket to the system chassis.
Step 5: Connect the audio devices. Connect one speaker to the line-in audio jack, one
speaker to the line-out audio jack and a microphone to the mic-in audio jack.
Step 6: Install the driver. If the 7.1 channel audio kit is used, the ALC883 Realtek
codec driver must be installed. Refer to Chapter 7 for driver installation
instructions. Step 0:
5.7.5 ATA Flat Cable Connection
The ATA 66/100 flat cable connects to the NANO-945GSE to one or two IDE devices. To
connect an IDE HDD to the NANO-945GSE please follow the instructions below.
Step 1: Locate the IDE connector. The location/s of the IDE device connector/s is/are
shown in Chapter 3.
Step 2: Insert the connector. Connect the IDE cable connector to the onboard
connector. See
851H907H
Figure 5-15. A key on the front of the cable connector ensures it
