NANO-945GSE EPIC Motherboard

Page 26

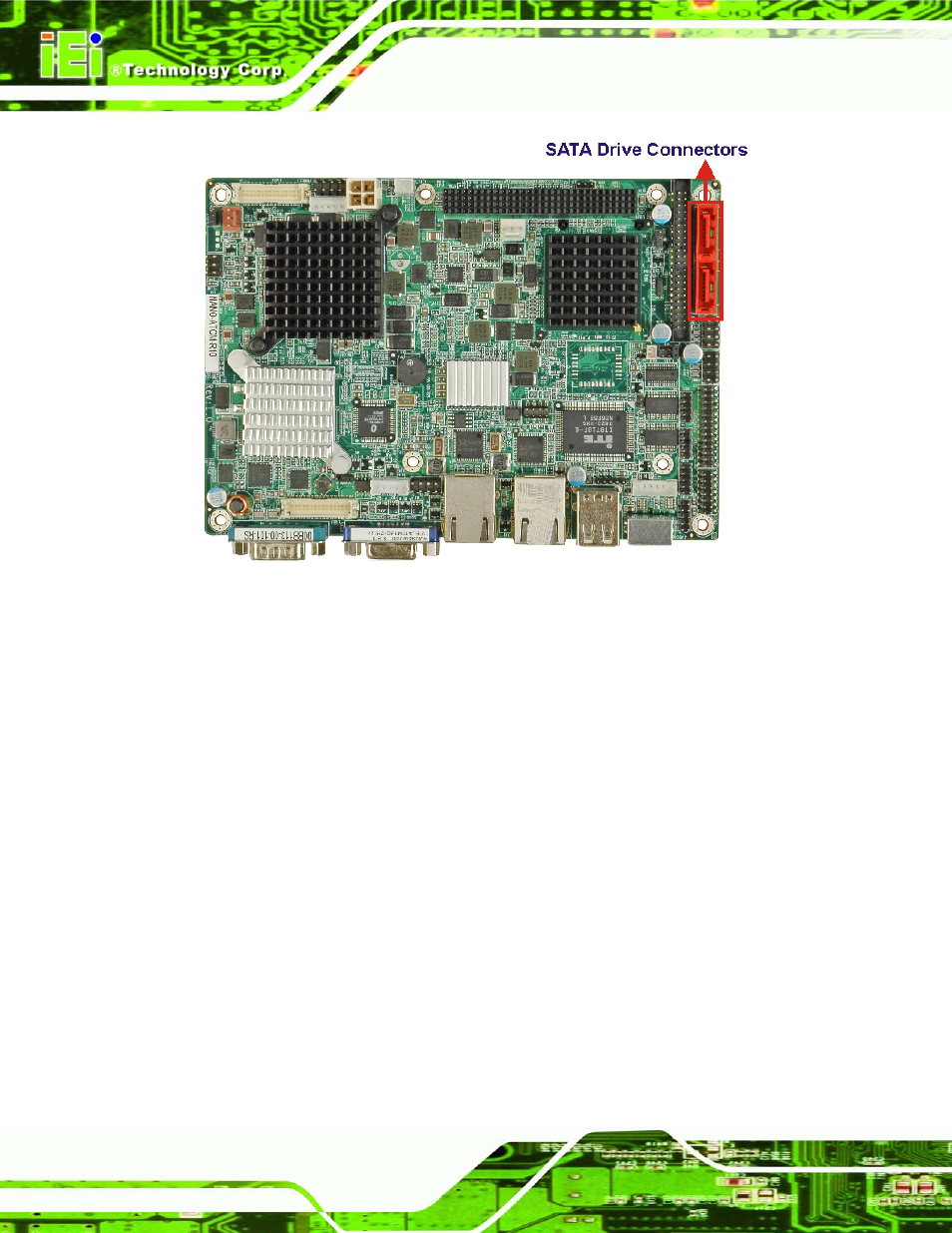

Figure 2-13: SATA Connectors

SATA controller specifications are listed below.

Supports four SATA drives

Supports 3Gb/s data transfer speeds

Supports Serial ATA Specification, Revision 1.0a

2.5.9 Intel

®

ICH7-M USB Controller

Up to six high-speed, full-speed or low-speed USB devices are supported by the ICH7-M

on the NANO-945GSE. High-speed USB 2.0, with data transfers of up to 480MB/s, is

enabled with the ICH7-M integrated Enhanced Host Controller Interface (EHCI) compliant

host controller. USB full-speed and low-speed signaling is supported by the ICH7-M

integrated Universal Host Controller Interface (UHCI) controllers.

The six USB ports implemented on the NANO-945GSE are connected to two internal

connectors and one external connector. See

803H

Figure 2-14.
