NANO-945GSE EPIC Motherboard

Page 16

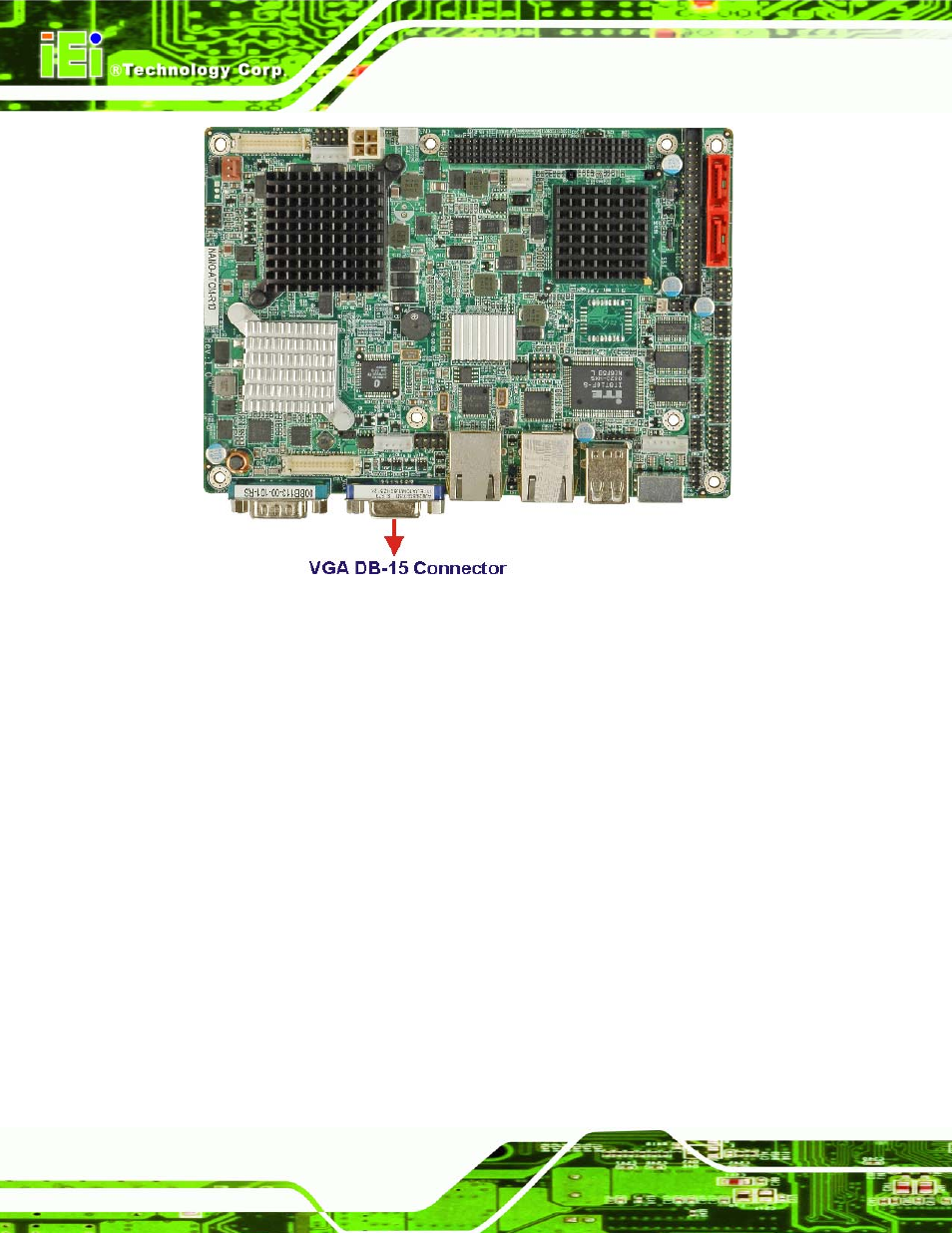

Figure 2-7: VGA Connector

Some of the features of the CRT include:

Integrated 400-MHz RAMDAC

Analog Monitor Support up to QXGA

Support for CRT Hot Plug

2.4.3.2 LVDS Interface

The LVDS interface is connected directly to one of the LVDS connectors on the board.

Some of the features of the LVDS interface include:

Panel support up to UXGA (1600 x 1200)

25-MHz to 112-MHz single-/dual-channel; @18 bpp

o

TFT panel type supported

Pixel Dithering for 18-bit TFT panel to emulate 24-bpp true color displays

Panel Fitting. Panning, and Center Mode Supported

CPIS 1.5 compliant
