NANO-945GSE EPIC Motherboard
Page 69
4.4.2 LAN Connectors
CN Label: LAN1 and LAN2
CN Type: RJ-45
CN Location: See
808H859H
Figure 4-24
CN Pinouts: See
809H860H
Table 4-26
The NANO-945GSE is equipped with two built-in RJ-45 Ethernet controllers. The
controllers can connect to the LAN through two RJ-45 LAN connectors. There are two
LEDs on the connector indicating the status of LAN. The pin assignments are listed in the
following table:
PIN DESCRIPTION PIN DESCRIPTION
1 MDIA3- 5 MDIA1+
2 MDIA3+ 6 MDIA2+
3 MDIA2- 7 MDIA0-
4 MDIA1- 8 MDIA0+
Table 4-26: LAN Pinouts

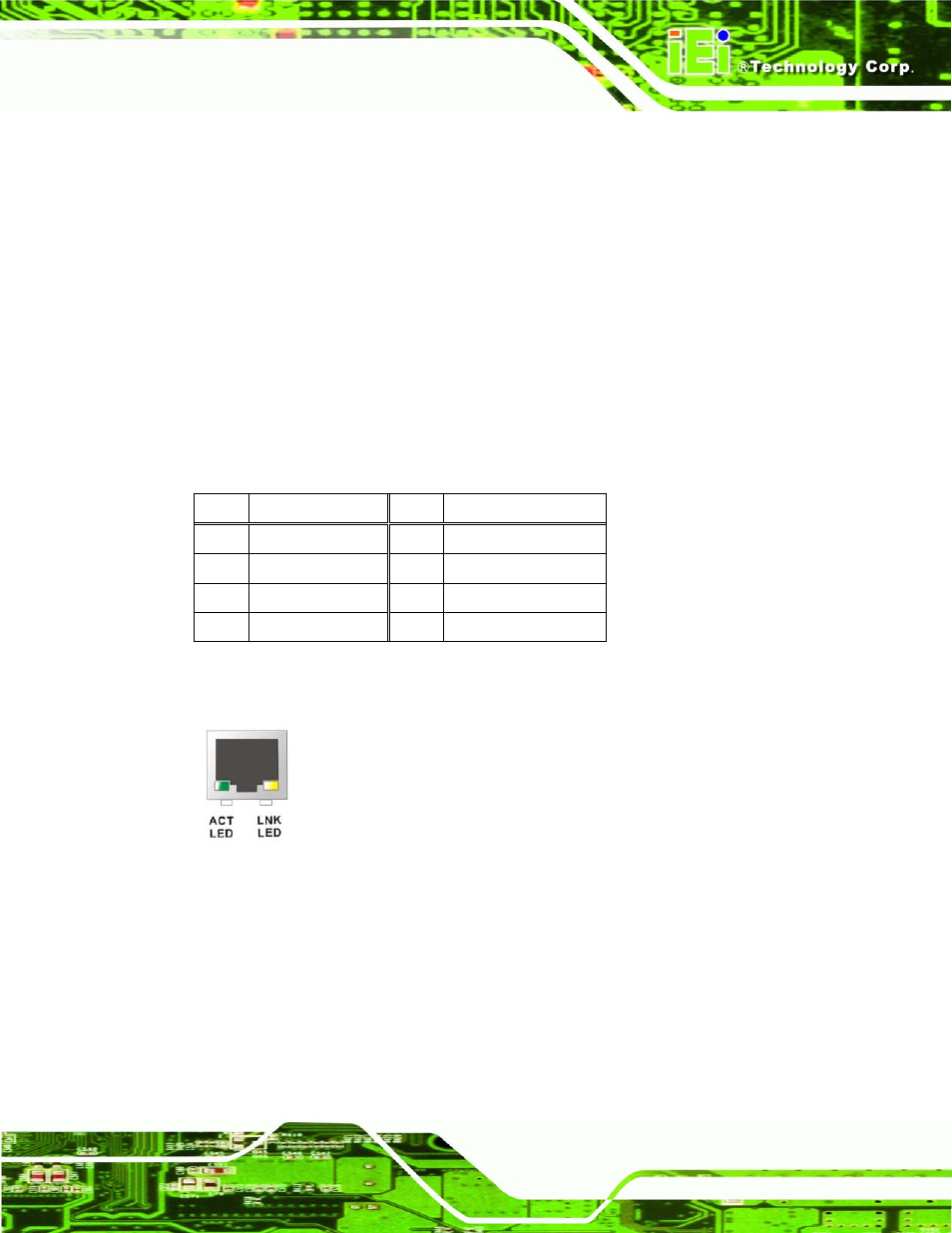

Figure 4-26: RJ-45 Ethernet Connector
The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked. See
810H861H
Table 4-27.
