NANO-945GSE EPIC Motherboard

Page 22

The PCI bus is connected to a PCI-104 connector as shown in

799H

Figure 2-10.

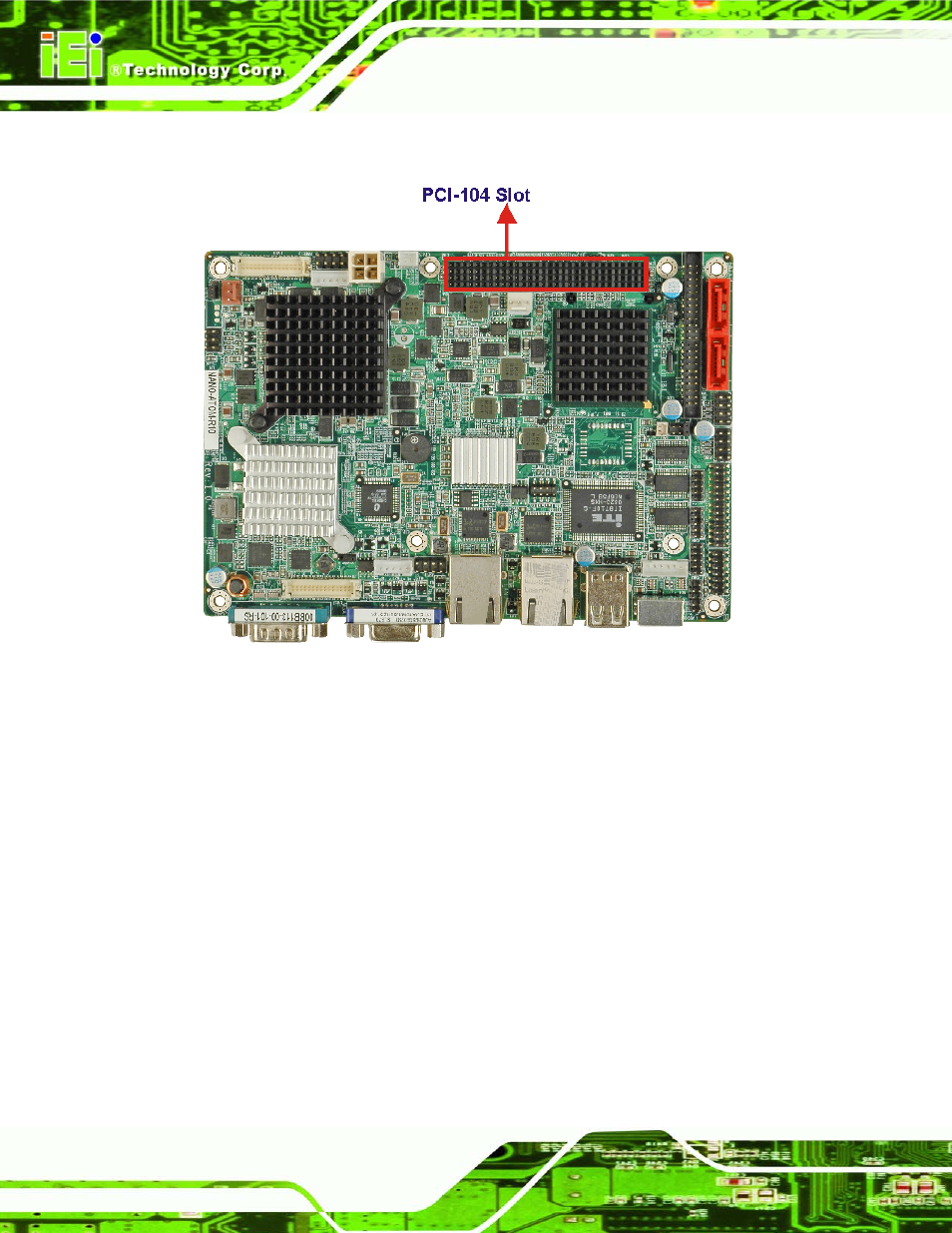

Figure 2-10: PCI-104 Connector

2.5.6 Intel

®

ICH7-M PCIe Bus

The Intel® ICH7-M southbridge chipset has four PCIe lanes. Two of the four PCIe lanes

are interfaced to PCIe GbE controller. A third PCIe lane is interfaced to a PCIe mini

socket.

2.5.6.1 PCIe GbE Ethernet

Two PCIe lanes are connected to two Realtek RTL8111C PCIe GbE controllers shown in

800H

Figure 2-11 below.
