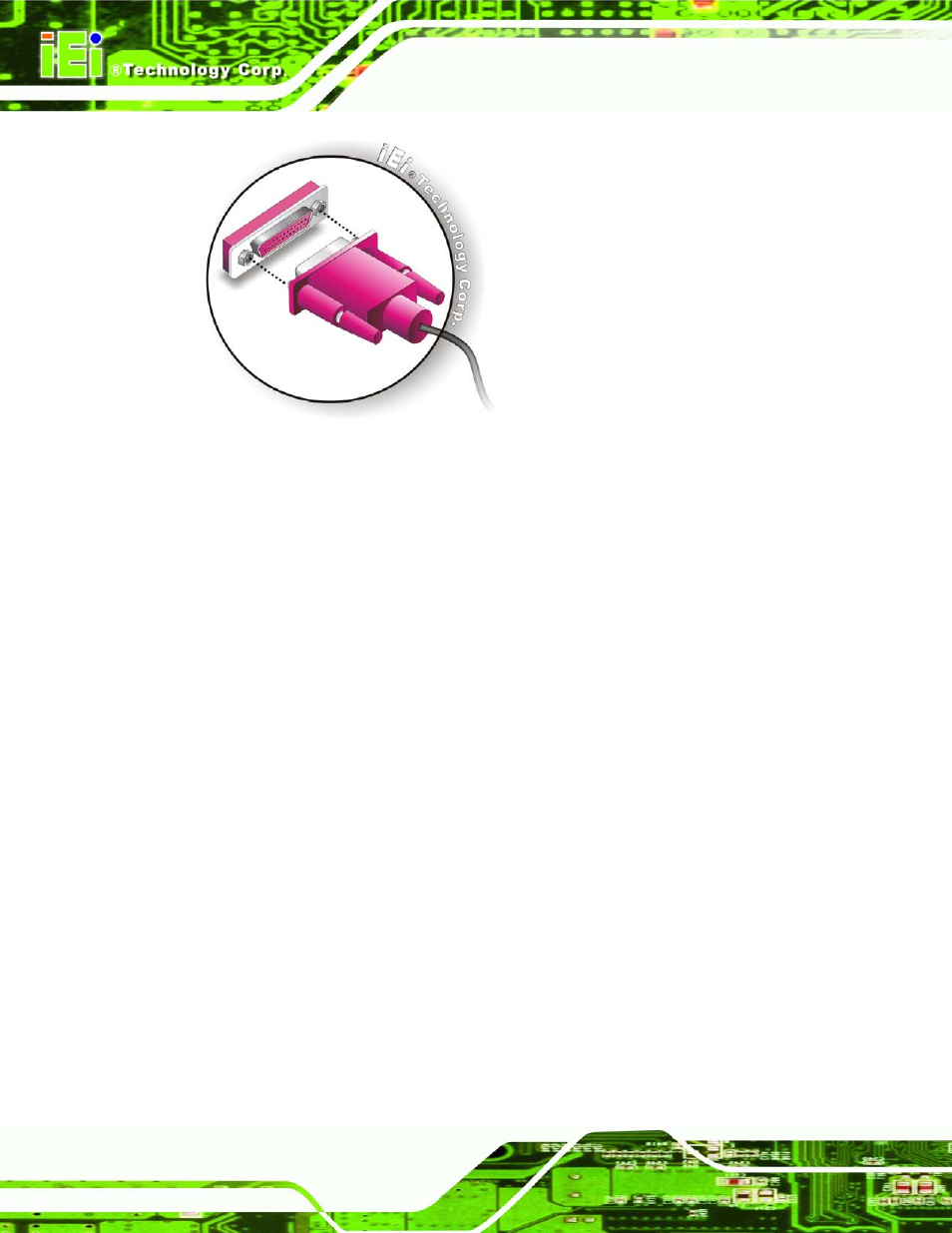

Figure 5-21: Connect the LPT Device
5.7.10 Dual RS-422/485 Cables
The NANO-945GSE is shipped with one RS-422/485 dual serial port connector cable. The
dual serial port connector cable connects the serial port connectors on the cable to the
RS-422/485 serial port connectors on the NANO-945GSE. Follow the steps below to
connect the dual serial port connector cable.
Step 1: Locate the serial port connector. The location of the RS-422/485 serial port
connector is shown in Chapter 3.
Step 2: Align the connectors. Correctly align pin 1 on the cable connector with pin 1 on
the NANO-945GSE COM2 serial port connector.
Step 3: Insert the cable connectors . Once the cable connector is properly aligned with
the COM2 serial port connector on the NANO-945GSE, connect the cable
connector to the on-board connectors. See
916H
Figure 5-22.
