NANO-945GSE EPIC Motherboard
Page 10

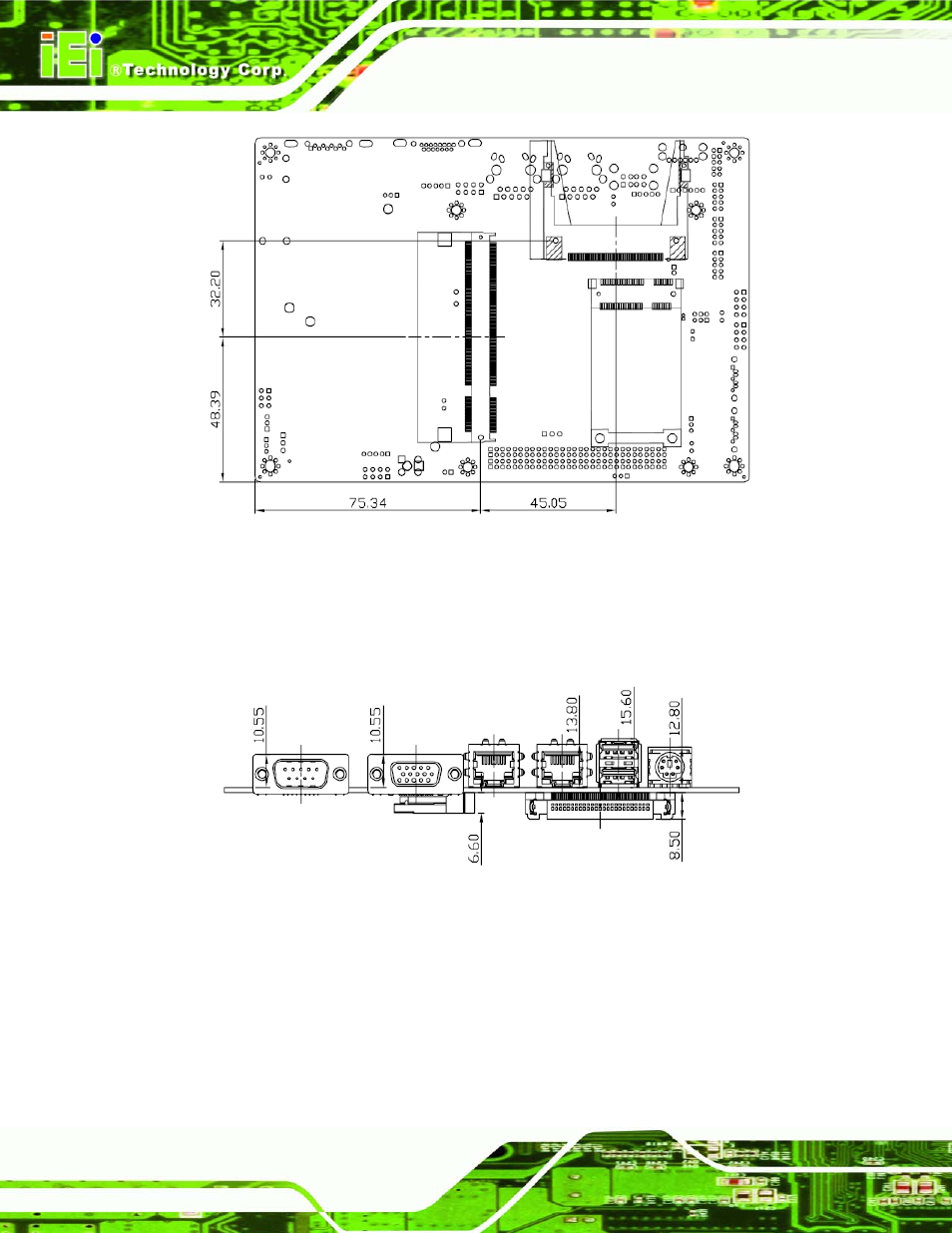

Figure 2-1: NANO-945GSE Dimensions (mm)
2.1.2 External Interface Panel Dimensions
External peripheral interface connector panel dimensions are shown in
748H792H
Figure 2-2.
Figure 2-2: External Interface Panel Dimensions (mm)
2.2 Data Flow
749H793H
Figure 2-3 shows the data flow between the two on-board chipsets and other components
installed on the motherboard and described in the following sections of this chapter.
