NANO-945GSE EPIC Motherboard

Page 83

Load Optimal Defaults

Load Failsafe Defaults.

After having done one of the above, save the changes and exit the CMOS Setup menu.

The clear CMOS jumper settings are shown in

832H885H

Table 5-4.

AT Power Select

Description

Short 1 - 2

Keep CMOS Setup

Default

Short 2 - 3

Clear CMOS Setup

Table 5-4: Clear CMOS Jumper Settings

The location of the clear CMOS jumper is shown in

833H886H

Figure 5-6 below.

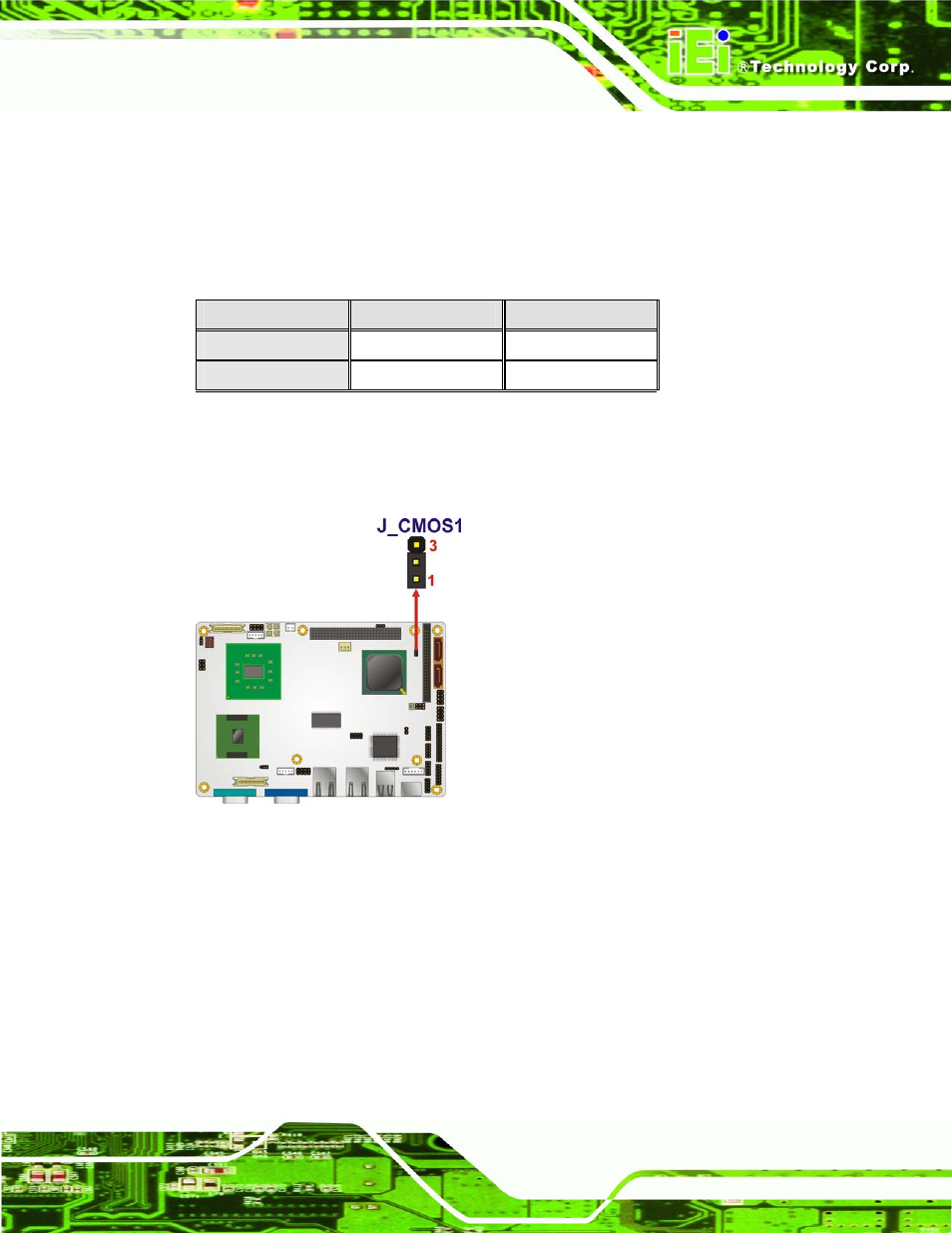

Figure 5-6: Clear CMOS Jumper

5.5.4 COM 2 Function Select Jumper

Jumper Label:

JP1

Jumper Type:

6-pin header

Jumper Settings:

See

887H

Table 5-5

Jumper Location:

See

888H

Figure 5-7
