NANO-945GSE EPIC Motherboard

Page 40

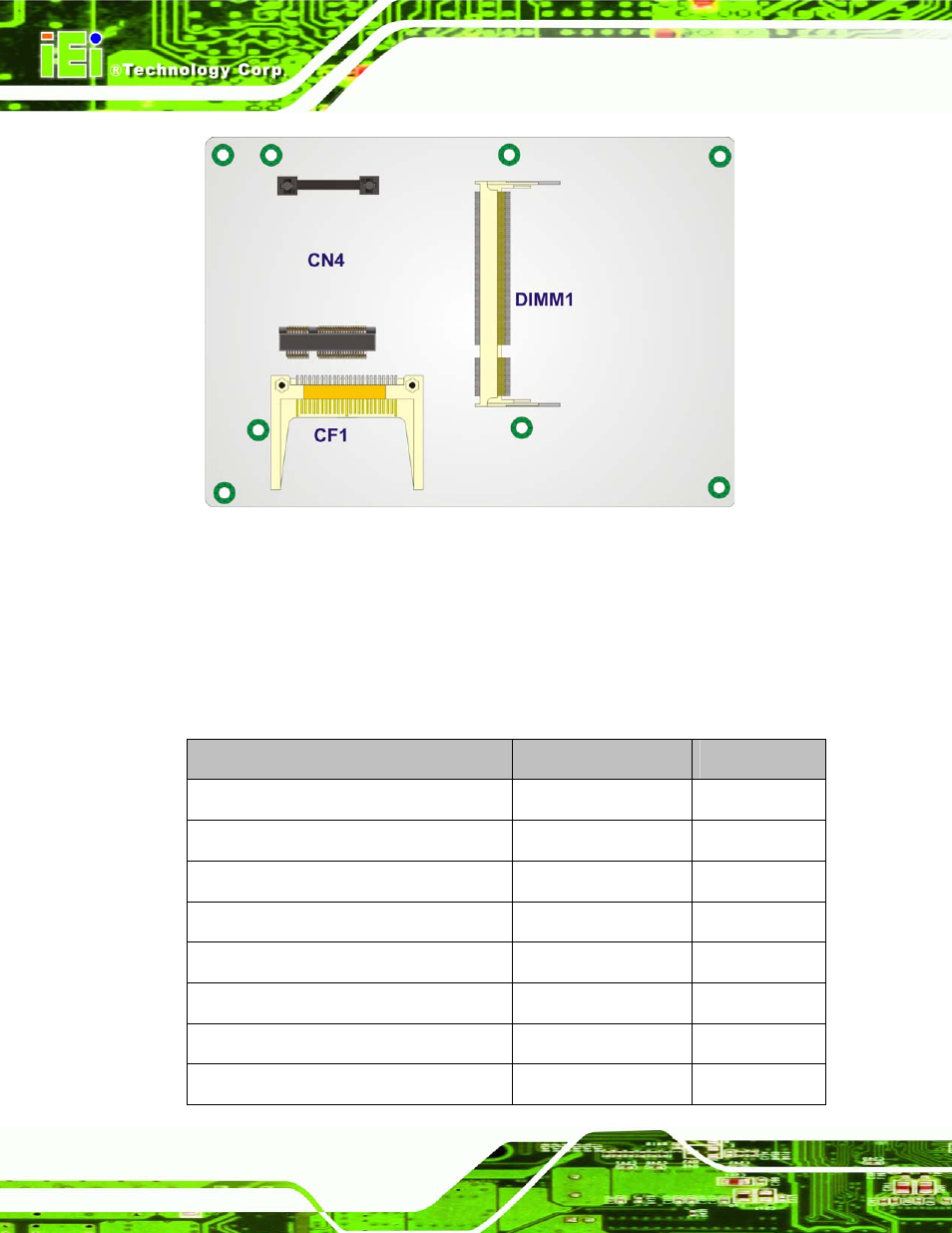

Figure 4-2: Connector and Jumper Locations [Solder Side]

4.2 Peripheral Interface Connectors

769H809H

Table 4-1 shows a list of the peripheral interface connectors on the NANO-945GSE.

Detailed descriptions of these connectors can be found below.

Connector

Type

Label

+12V power source connector

4-pin ATX

CN1 and CN2

5V power connector

2-pin wafer

CN3

Audio connector

9-pin header

J_AUDIO1

ATX power control connector

3-pin wafer

ATXCTL1

Backlight inverter connectors

5-pin wafer

INVERTER2

Backlight inverter connectors

5-pin wafer

INVERTER1

CompactFlash® socket

50-pin CF socket

CF1

Digital input/output (DIO) connector

10-pin header

DIO1
