NANO-945GSE EPIC Motherboard

Page 107

5-26.

Step 0:

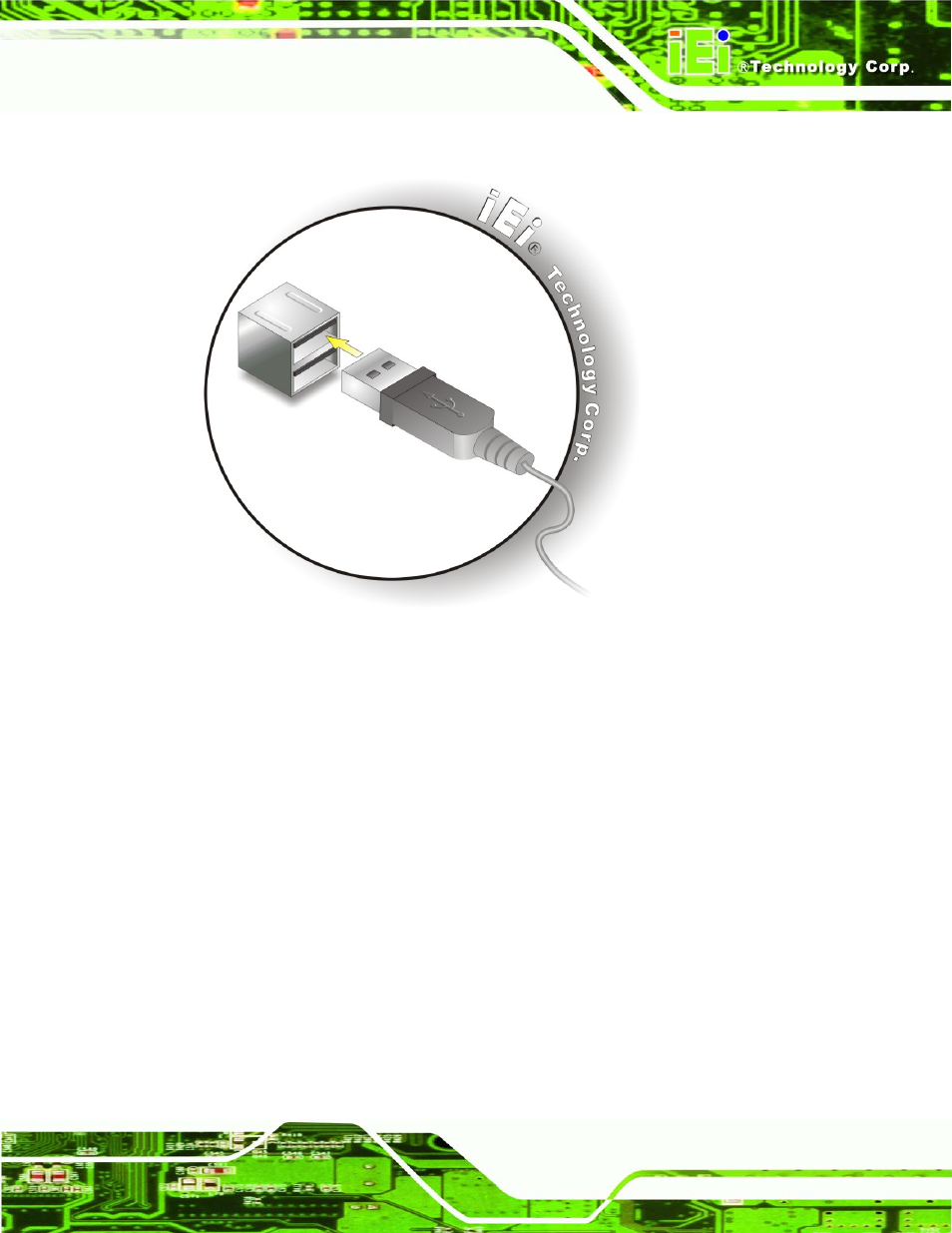

Figure 5-26: USB Connector

5.8.5 VGA Monitor Connection

The NANO-945GSE has a single female DB-15 connector on the external peripheral

interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect

a monitor to the NANO-945GSE, please follow the instructions below.

Step 1:

Locate the female DB-15 connector. The location of the female DB-15

connector is shown in Chapter 3.

Step 2:

Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

Step 3:

Insert the VGA connector. Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the

NANO-945GSE. See

863H921H

Figure 5-27.
