NANO-945GSE EPIC Motherboard

Page 13

L2 Dynamic Cache Sizing

Advanced power management features including Enhanced Intel

SpeedStep® Technology

Execute Disable Bit support for enhanced security

2.3.3 Front Side Bus (FSB)

The Intel® Atom™ processor on the NANO-945GSE is interfaced to the Intel 945GSE

Northbridge through a 533 MHz front side bus (FSB). The FSB is shown in

752H795H

Figure 2-5

below.

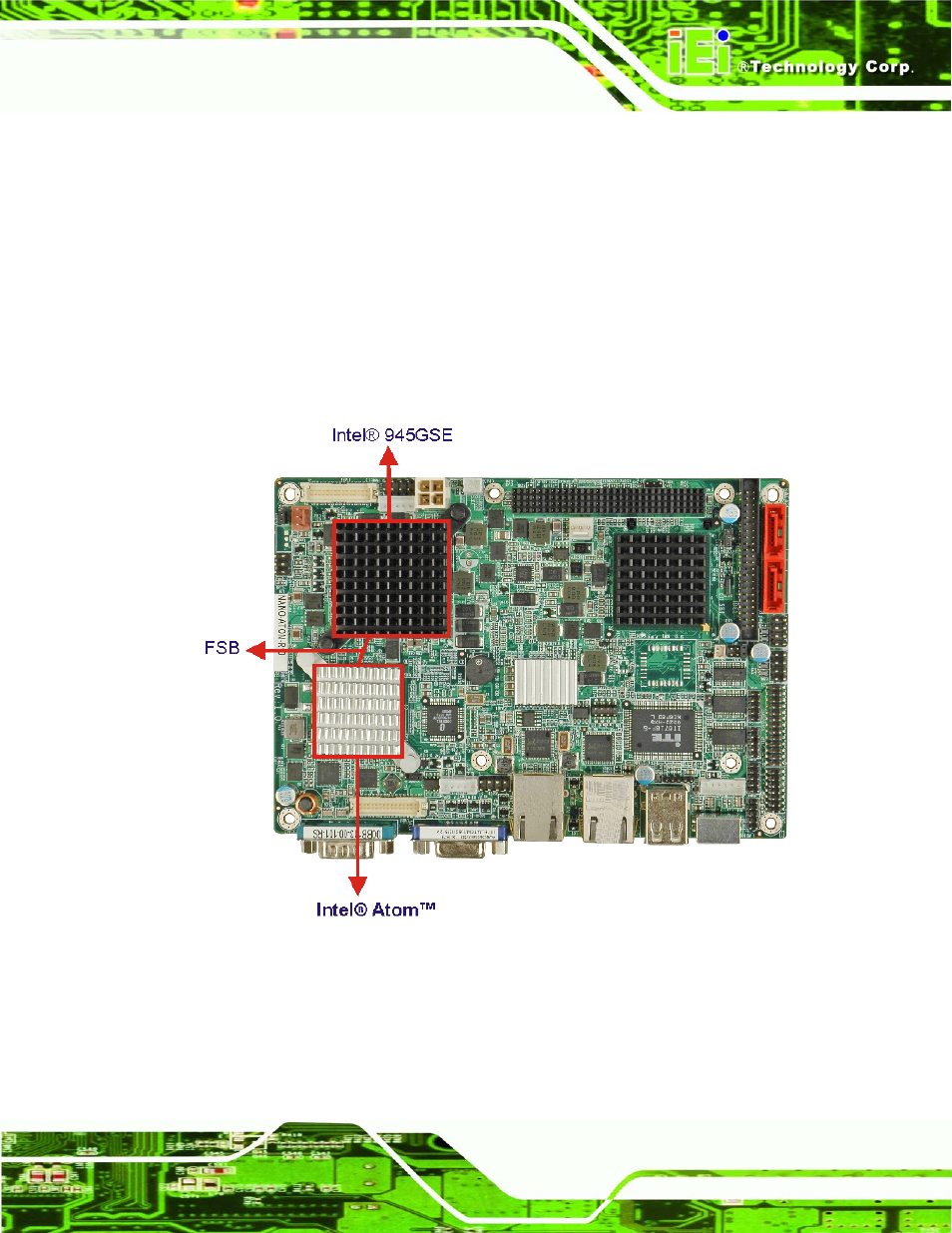

Figure 2-5: Front Side Bus
