NANO-945GSE EPIC Motherboard

Page 66

4.3.20 TV Out Connector

CN Label:

TV1

CN Type:

6-pin header (2x3)

CN Location:

See

799H851H

Figure 4-22

CN Pinouts:

See

800H852H

Table 4-23

The 2x3 pin TV out connector connects to a TV output by using an S-Video or RCA

connector. The TV out connector makes displaying media data on a television easier.

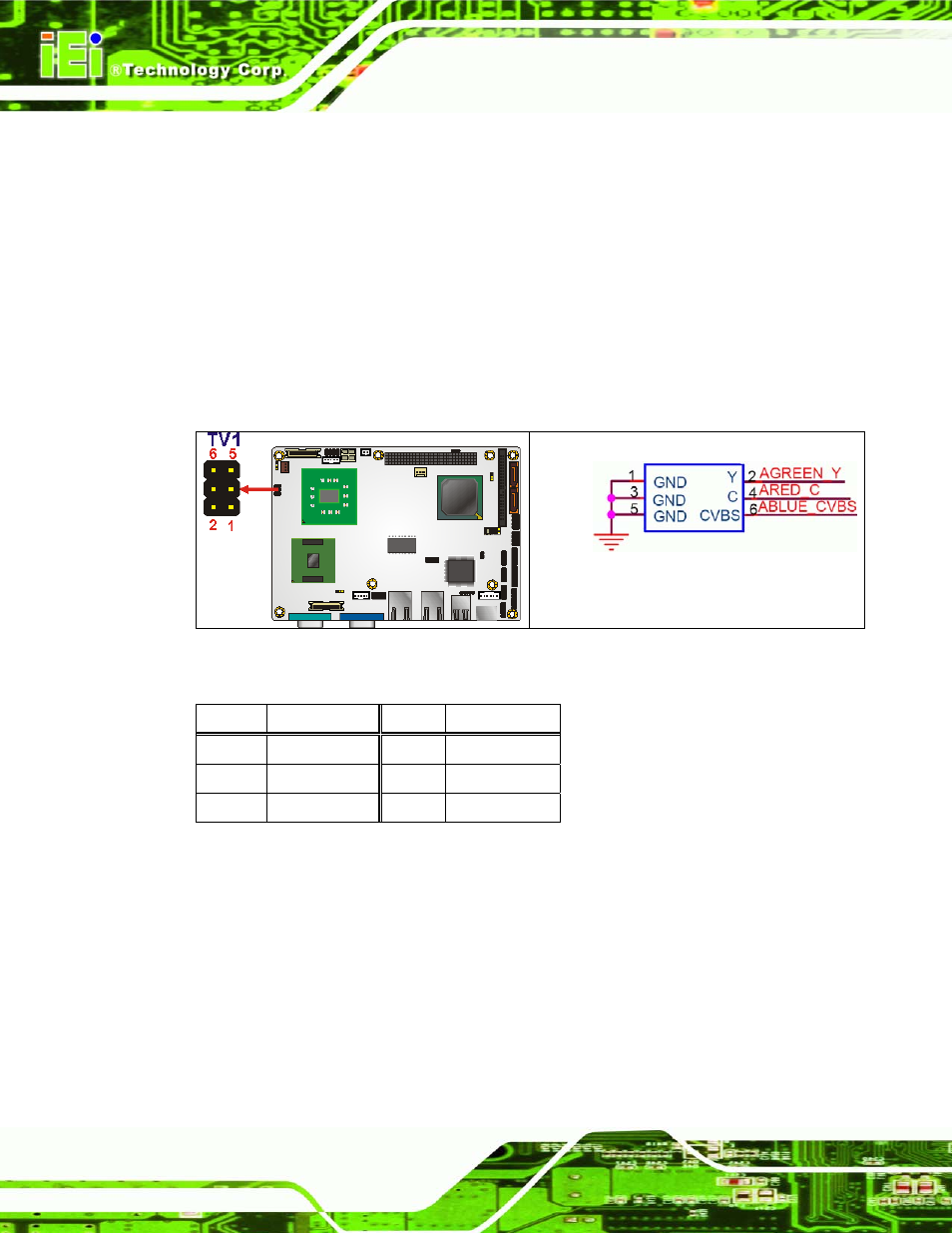

Figure 4-22: TV Connector Pinout Locations

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 GND

2 IOY

3 GND

4 IOC

5 GND

6 IOCOMP

Table 4-23: TV Port Connector Pinouts

4.3.21 USB Connectors (Internal)

CN Label:

USB01 and USB23

CN Type:

8-pin header (2x4)

CN Location:

See

801H853H

Figure 4-23

CN Pinouts:

See

802H854H

Table 4-24
