AT Power Select Description
Short 1 – 2 Use AT power Default
Open Use ATX power
Table 5-2: AT Power Select Jumper Settings
The location of the AT Power Select jumper is shown in
878H
Figure 5-4 below.

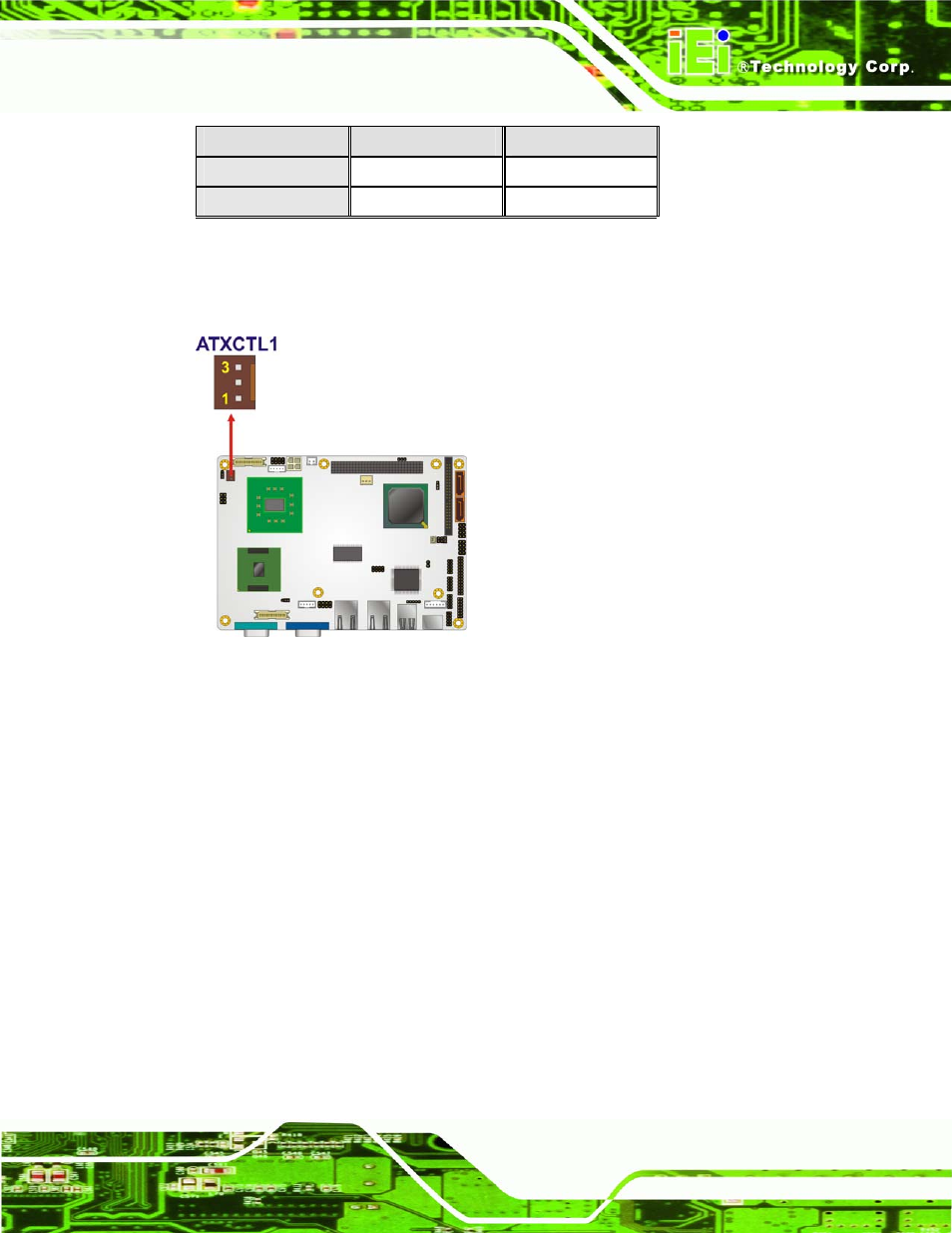

Figure 5-4: AT Power Select Jumper Location
5.5.2 CF Card Setup
Jumper Label: JCF1
Jumper Type: 2-pin header
Jumper Settings: See
879H
Table 5-3
Jumper Location: See
880H
Figure 5-5
The CF Card Setup jumper sets the CF Type I card or CF Type II cards as either the slave
device or the master device. CF Card Setup jumper settings are shown in
881H
Table 5-3.
