NANO-945GSE EPIC Motherboard

Page 99

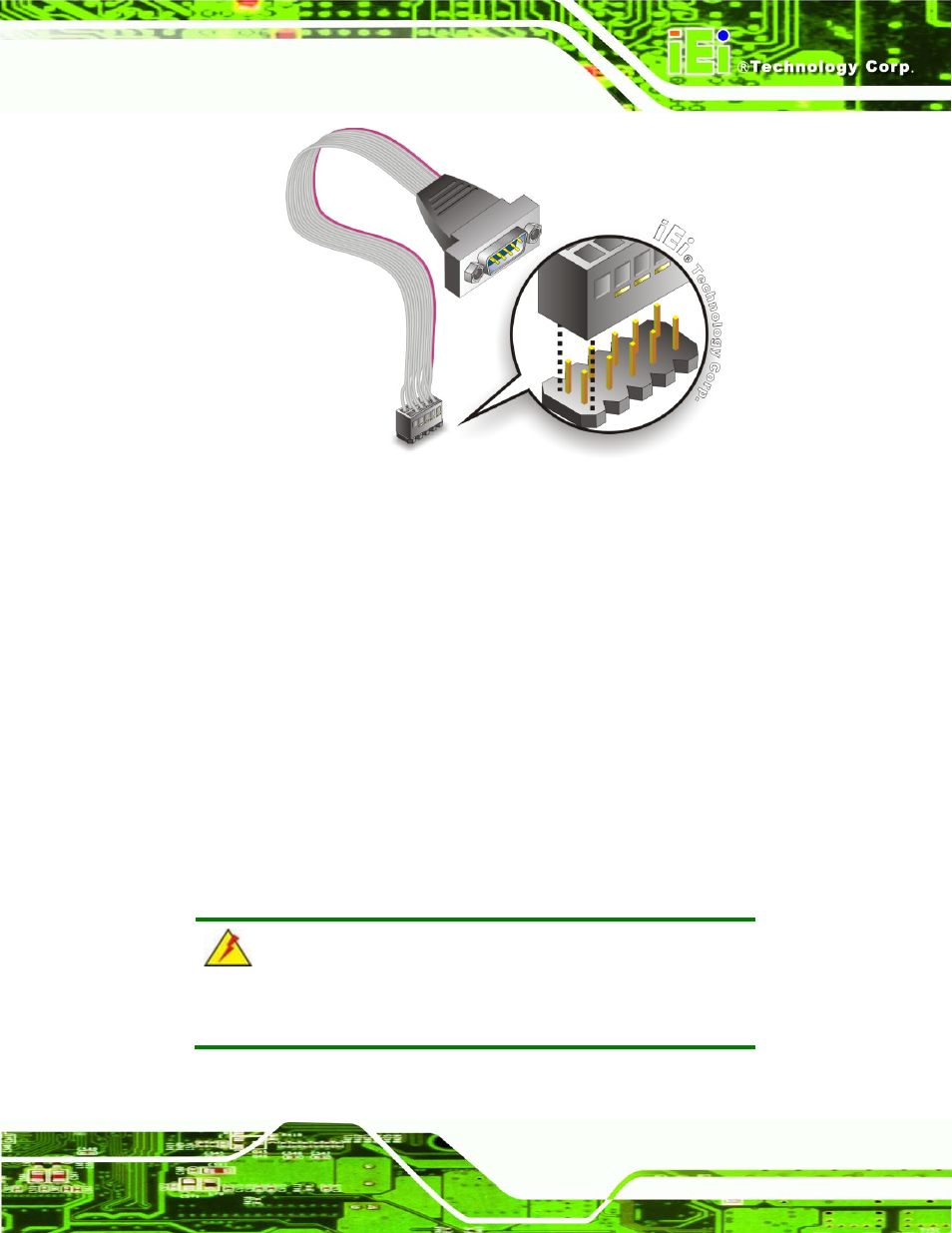

Figure 5-18: Single RS-232 Cable Installation

Step 3:

Secure the bracket. The single RS-232 connector has two retention screws

that must be secured to a chassis or bracket.

Step 4:

Connect the serial device. Once the single RS-232 connector is connected to

a chassis or bracket, a serial communications device can be connected to the

system.

Step 0:

5.7.8 USB Cable (Dual Port without Bracket)

The NANO-945GSE is shipped with a dual port USB 2.0 cable. To connect the USB cable

connector, please follow the steps below.

Step 1:

Locate the connectors. The locations of the USB connectors are shown in

Chapter 3.

WARNING:

If the USB pins are not properly aligned, the USB device can burn out.

Step 2:

Align the connectors. The cable has two connectors. Correctly align pin 1on
