NANO-945GSE EPIC Motherboard

Page 108

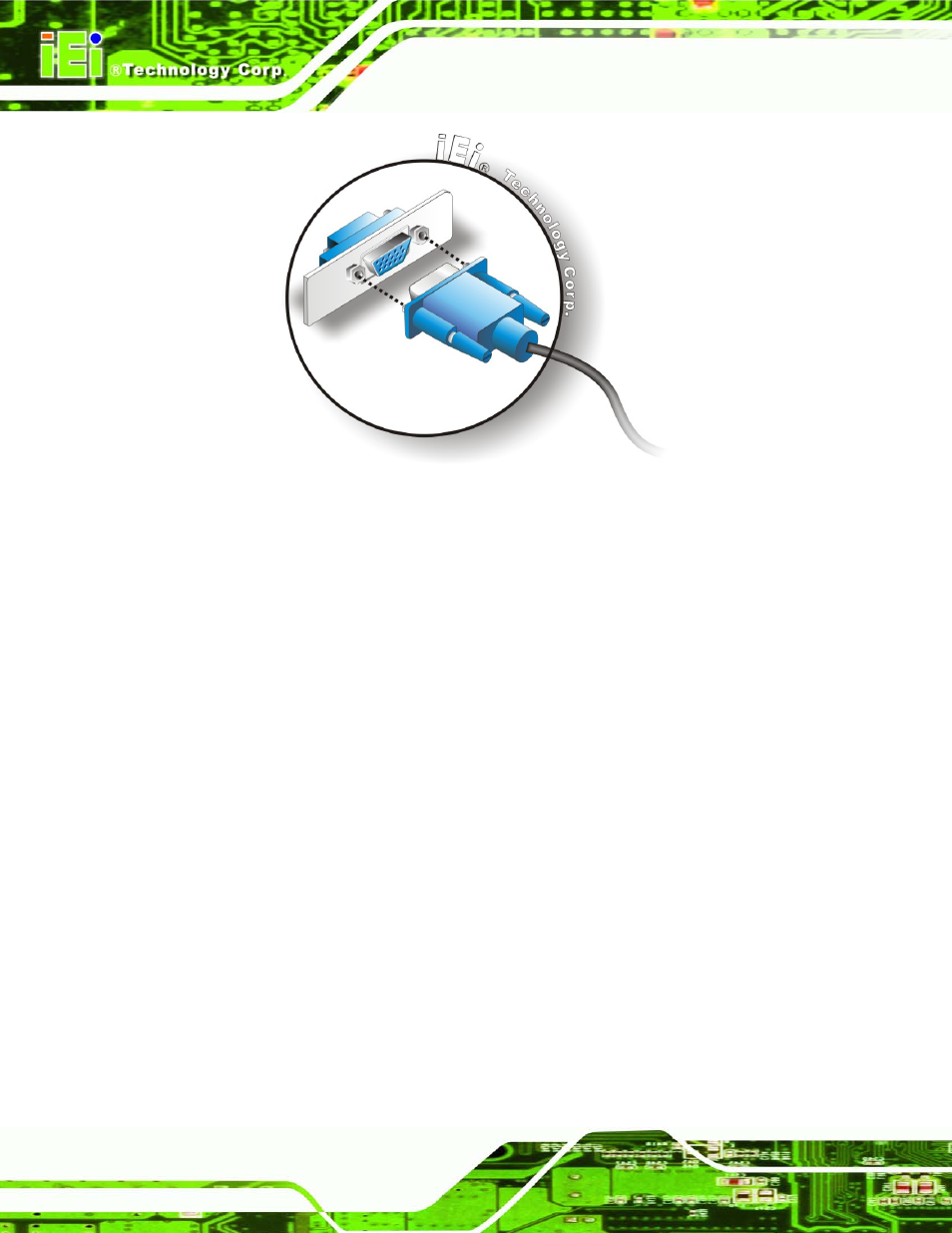

Figure 5-27: VGA Connector

Step 4:

Secure the connector. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either

side of the connector.
