NANO-945GSE EPIC Motherboard

Page 4

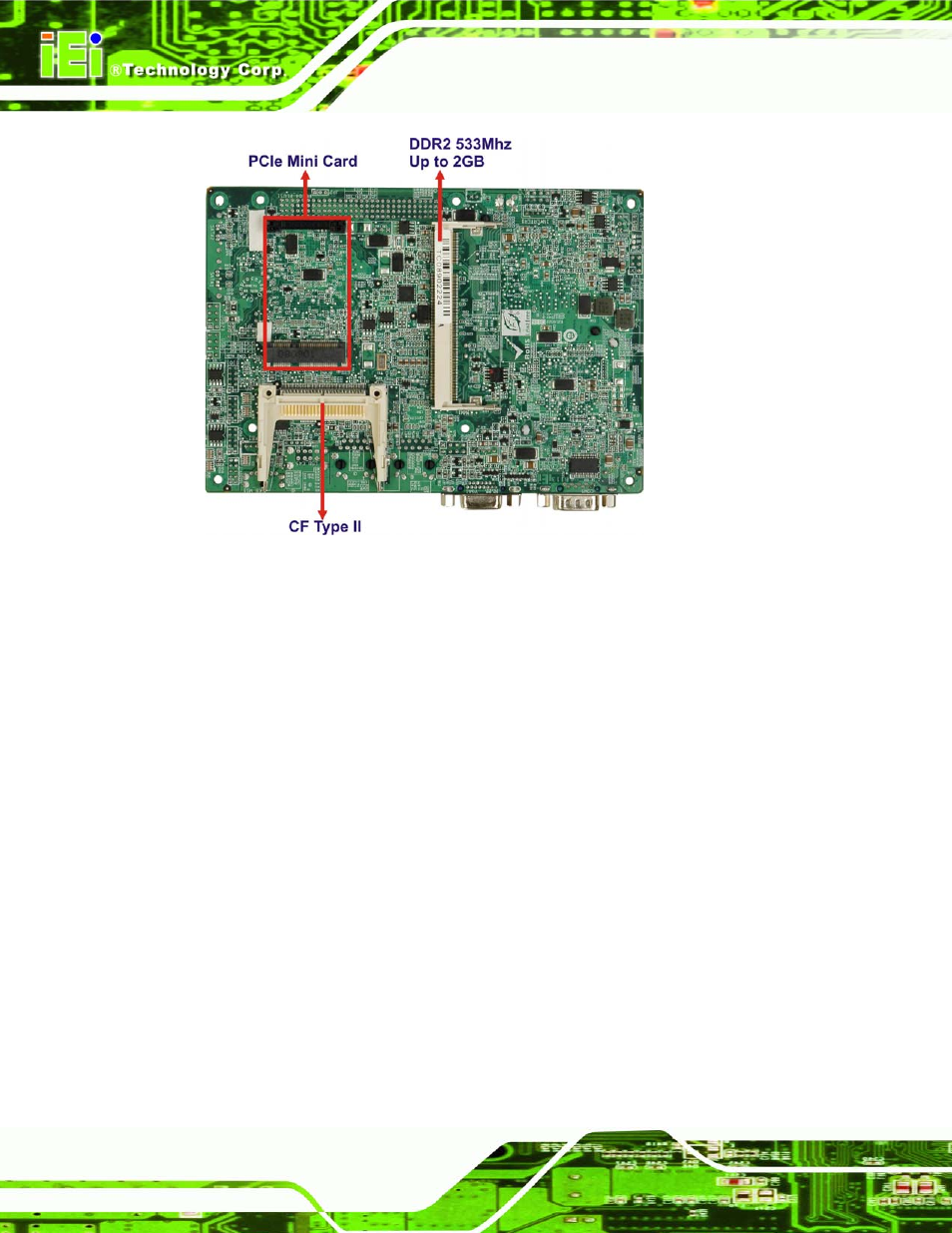

Figure 1-3: NANO-945GSE Overview [Solder Side]

1.2.2 NANO-945GSE Peripheral Connectors and Jumpers

The NANO-945GSE has the following connectors on-board:

1 x +12V power source connector

1 x 5V power connector

1 x Audio connector

1 x ATX power control connector

2 x Backlight inverter connectors

1 x CompactFlash® socket

1 x Digital input/output (DIO) connector

1 x Fan connector

1 x Front panel connector

1 x IDE disk drive connectors (44-pin)

1 x Infrared interface (IrDA) connector

1 x Keyboard connector

2 x LVDS connectors

1 x Parallel port connector
