NANO-945GSE EPIC Motherboard

Page 14

2.4 Intel 945GSE Northbridge Chipset

2.4.1 Intel® 945GSE Overview

The Intel 945GSE Graphics and Memory Controller Hub (GMCH) supports the embedded

Intel® Atom™ N270 processor. The Intel 945GSE is interfaced to the processor through a

533 MHz FSB.

2.4.2 Intel® 945GSE DDR2 Controller

There is one 200-pin DDR2 SO-DIMM socket on the NANO-945GSE. The socket supports

DDR2 SO-DIMM with the following specifications:

Maximum Memory supported 2 GB (1 GB per rank)

Support for DDR2 at 400 MHz and 533 MHz

No support for Dual-Channel Interleaved mode of operation

Enhanced Addressing support (Swap only)

The SO-DIMM socket is shown in

796H

Figure 2-6 below.

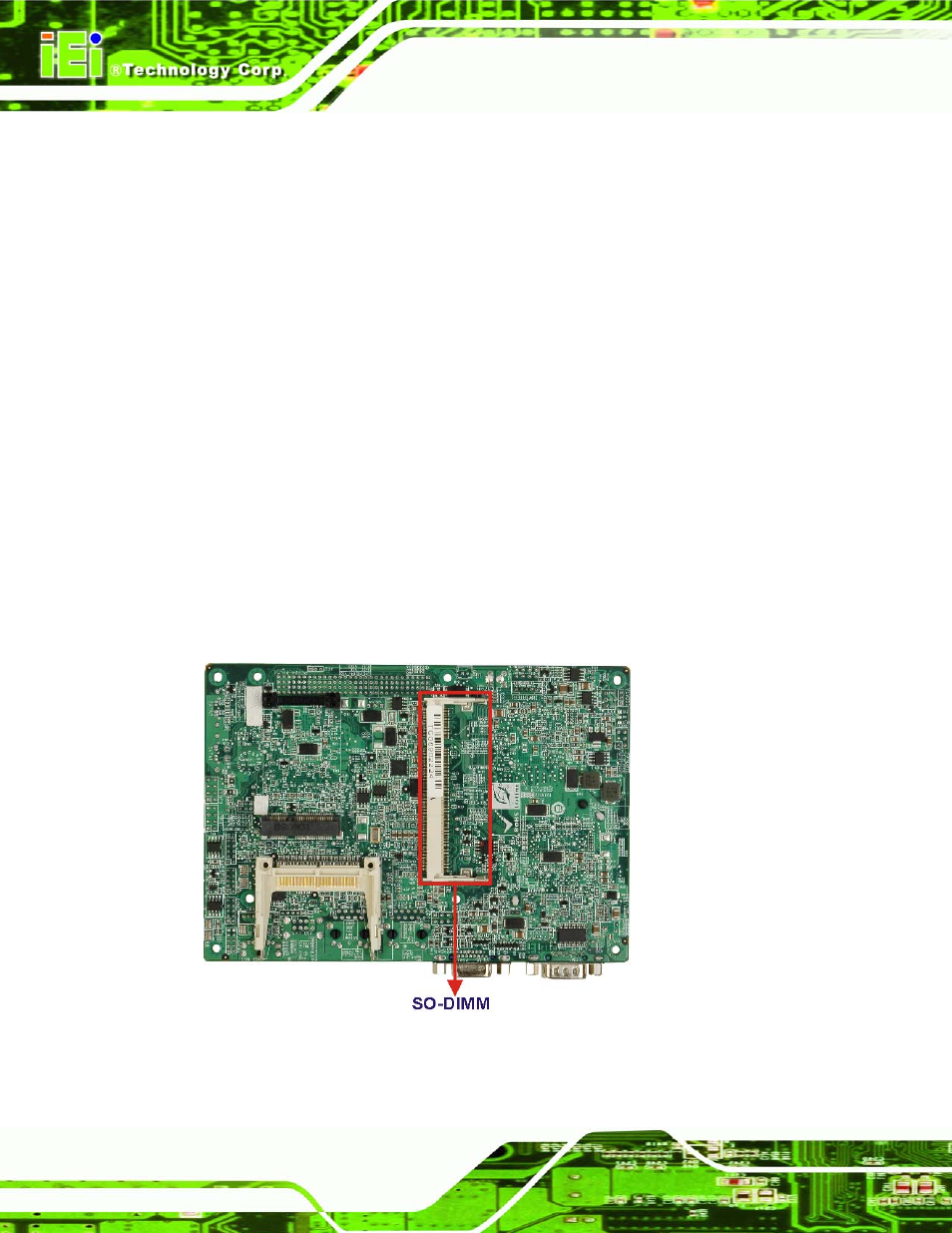

Figure 2-6: DDR2 SO-DIMM Socket
