NANO-945GSE EPIC Motherboard
Page 44

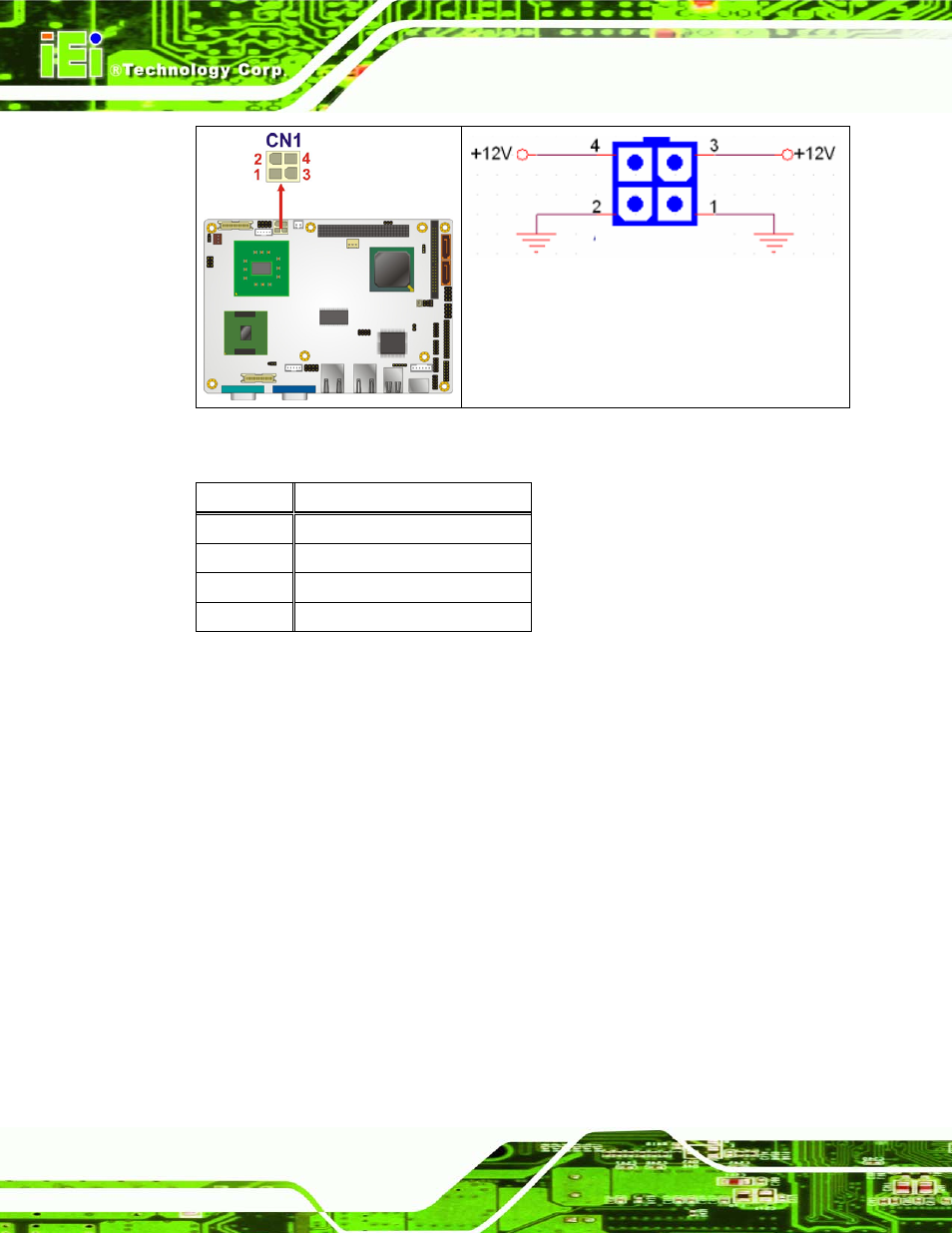

Figure 4-4: AT Power Connector Location
PIN NO. DESCRIPTION
1 GND
2 GND
3 +12V
4 +12V
Table 4-4: AT Power Connector Pinouts
4.3.3 ATX Power Supply Enable Connector
CN Label: ATXCTL1
CN Type: 3-pin wafer (1x3)
CN Location: See
817H
Figure 4-5
CN Pinouts: See
818H
Table 4-5
The ATX power supply enable connector enables the NANO-945GSE to be connected to
an ATX power supply. In default mode, the NANO-945GSE can only us an AT power
supply. To enable an ATX power supply the AT Power Select jumper must also be
configured. Please refer to Chapter 3 for more details.
