NANO-945GSE EPIC Motherboard

Page 51

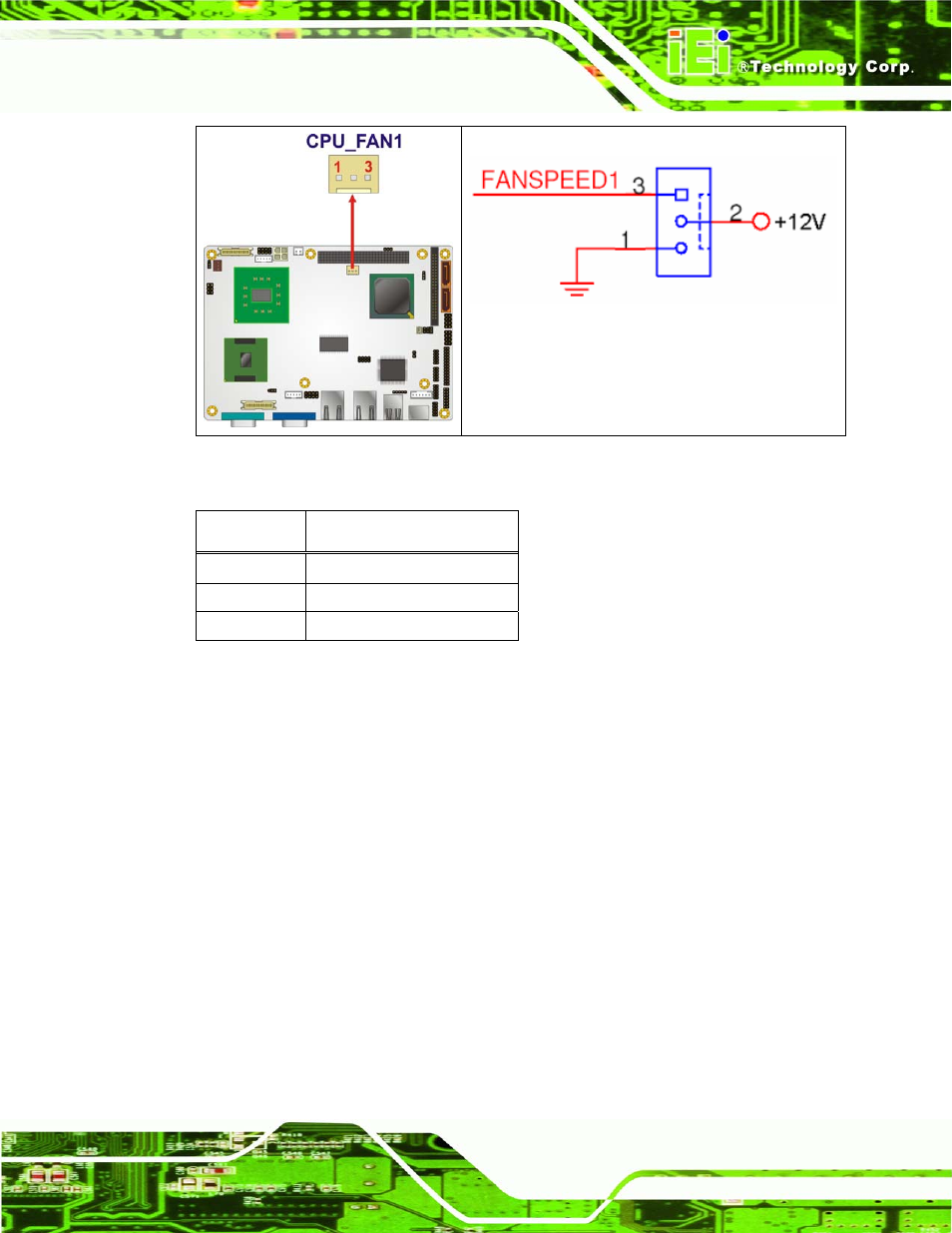

Figure 4-10: +12V Fan Connector Location

PIN NO.

DESCRIPTION

1 GND

2 +12V

3 Fan

Speed

Detect

Table 4-10: +12V Fan Connector Pinouts

4.3.9 Front Panel Connector (8-pin)

CN Label:

F_PANEL1

CN Type:

8-pin header (2x4)

CN Location:

See

829H

Figure 4-11

CN Pinouts:

See

830H

Table 4-11

The front panel connector connects to external switches and indicators to monitor and

controls the motherboard. These indicators and switches include:

Power button

Reset

Power LED
