NANO-945GSE EPIC Motherboard
Page 11

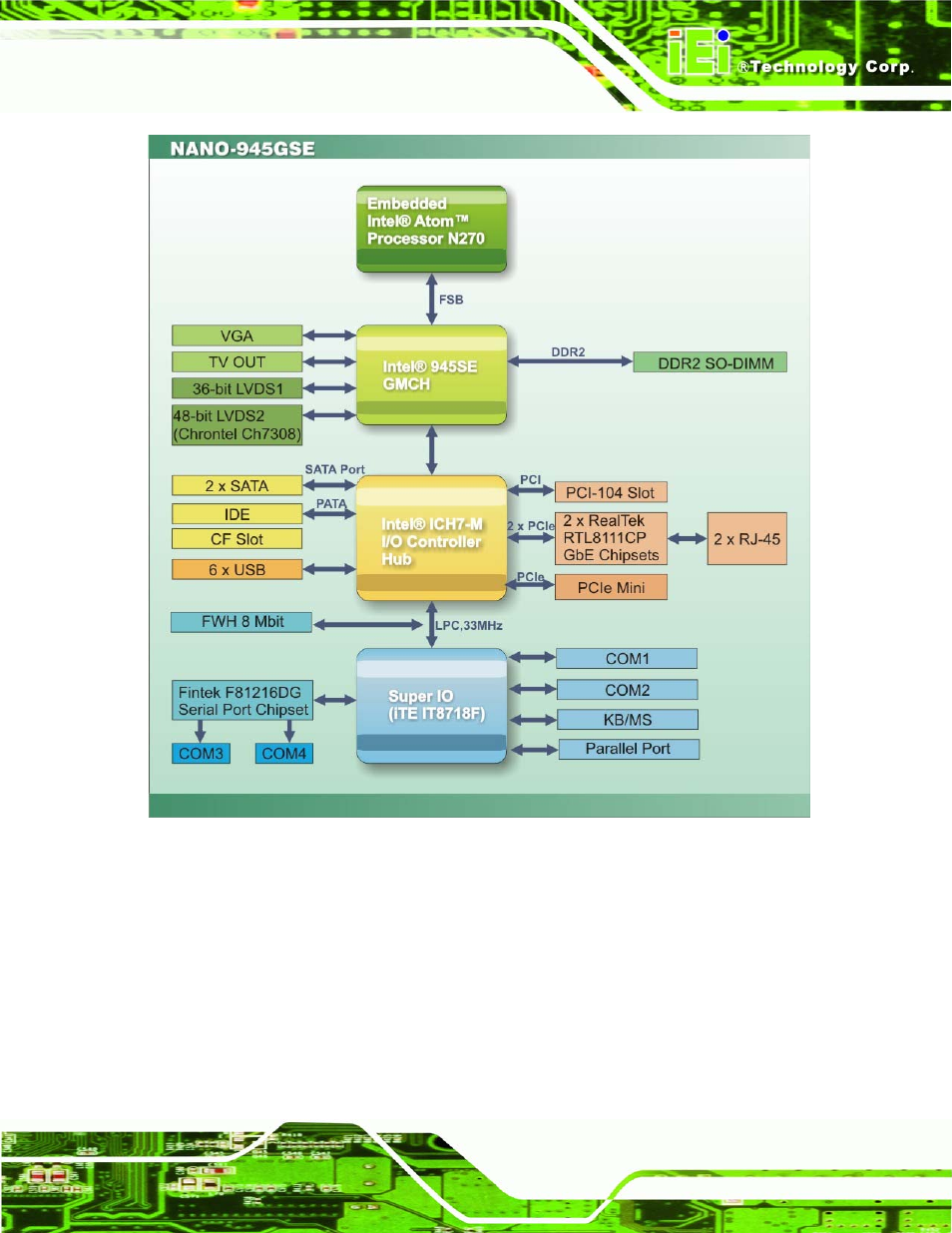

Figure 2-3: Data Flow Block Diagram
2.3 Embedded NANO-945GSE Processor
2.3.1 Overview
The NANO-945GSE comes with an embedded 45 nm 1.60 GHz Intel® Atom™ processor
N270. The processor supports a 533 MHz FSB and has a 1.6 GHz 512 KB L2 cache. The
low power processor has a maximum power of 2.5 W. The processor is covered with a
heat sink and is shown in
794H
Figure 2-4 below.
