NANO-945GSE EPIC Motherboard

Page 56

PIN NO.

DESCRIPTION

5 KB

CLK

6 GROUND

Table 4-14: Keyboard/Mouse Connector Pinouts

4.3.13 LVDS LCD Connector

CN Label:

LVDS1 and LVDS2

CN Type:

30-pin crimp (2x10)

CN Location:

See

789H837H

Figure 4-15

CN Pinouts:

See

790H838H

Table 4-15 and Figure 4-16

The 30-pin LVDS LCD connectors can be connected to single channel or dual channel,

24-bit or 36-bit LVDS panel.

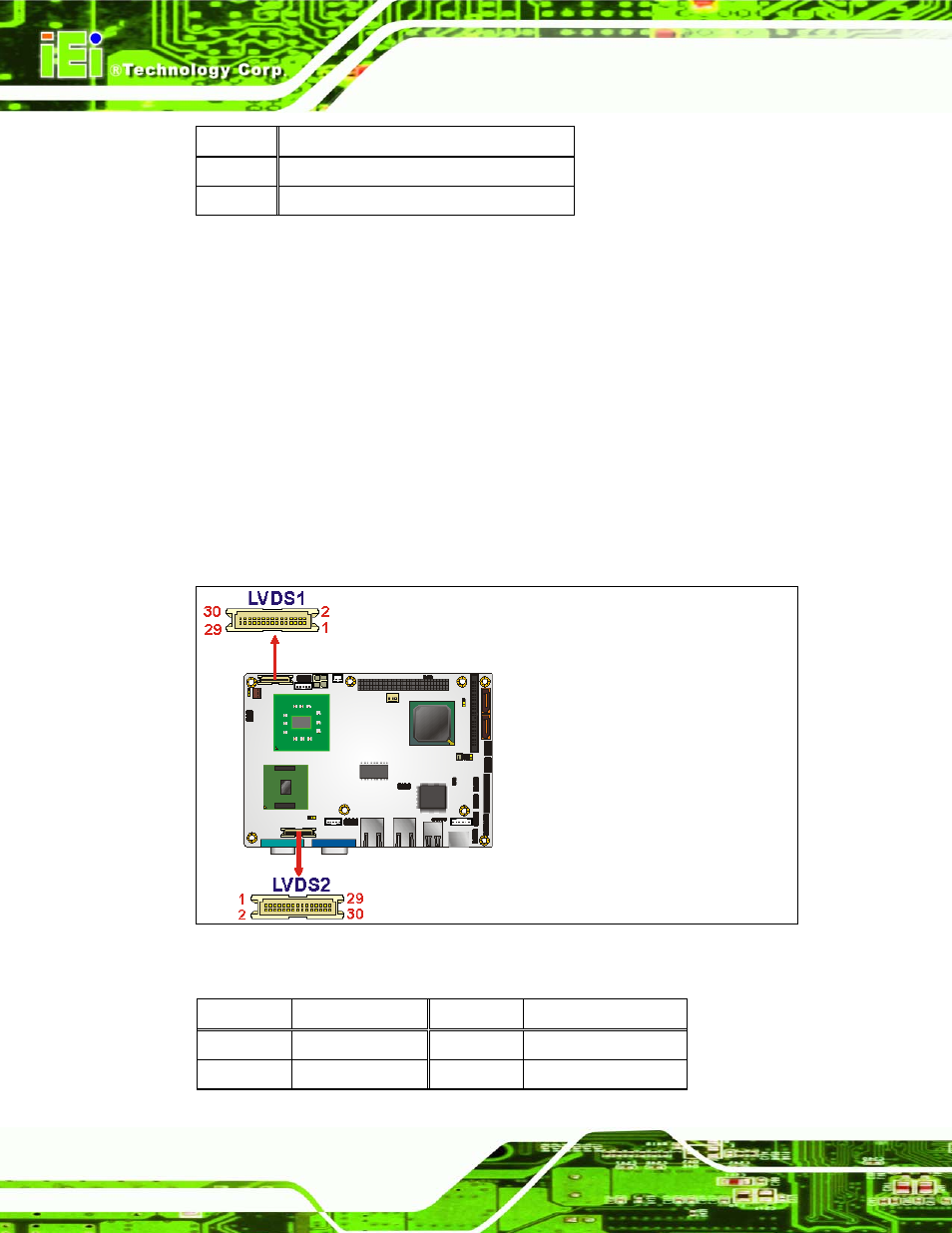

Figure 4-15: LVDS LCD Connector Pinout Locations

PIN

NO. DESCRIPTION PIN

NO. DESCRIPTION

1 GND1 2 GND2

3 A_Y0 4 A_Y0#
