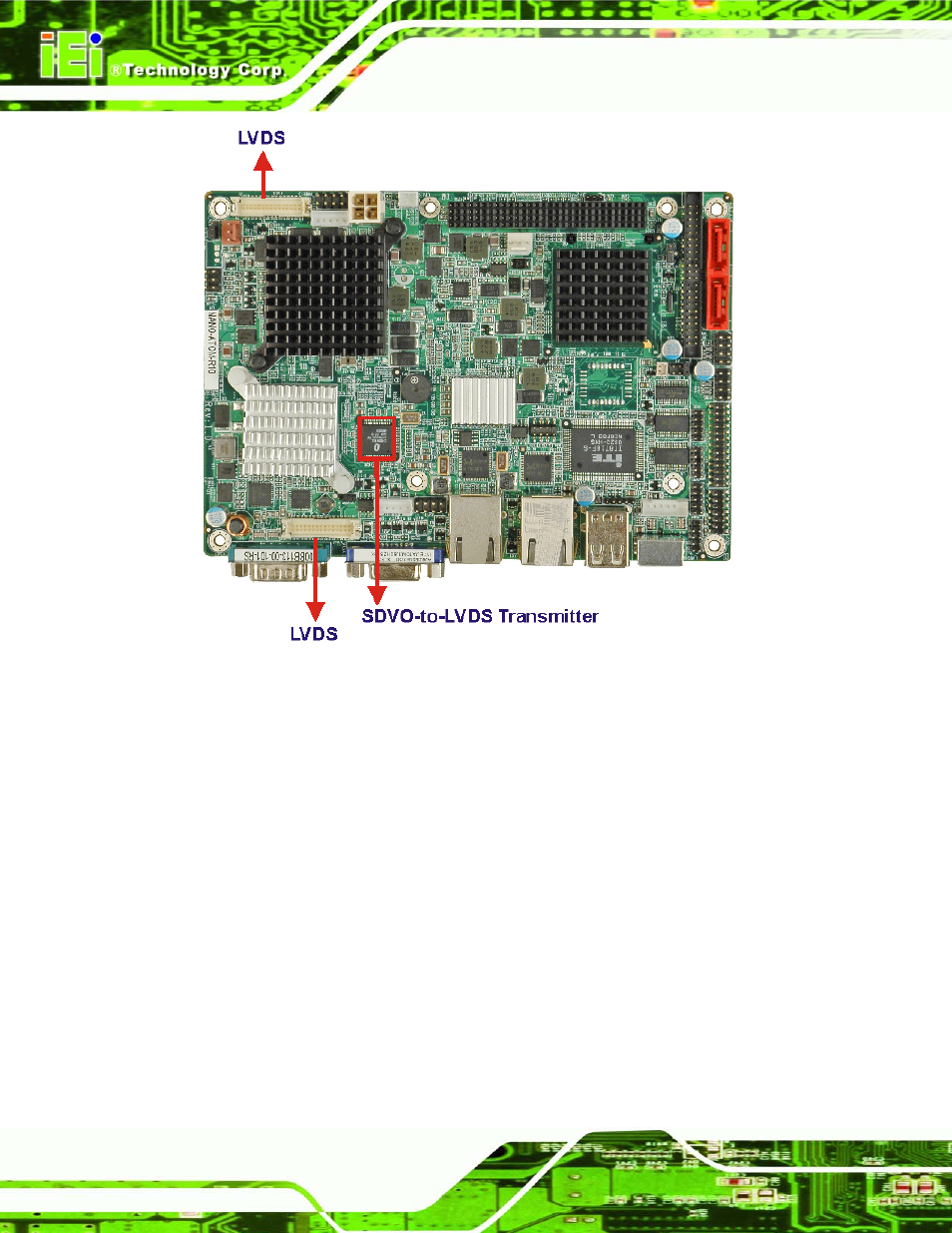

Figure 2-8: Chrontel SDVO-to-LVDS DAC Chipset
2.5 Intel
®
ICH7-M Southbridge Chipset
2.5.1 Intel
®
ICH7-M Overview
The Intel® ICH7-M southbridge chipset is connected to the Intel® 945GSE northbridge
GMCH through the chip-to-chip Direct Media Interface (DMI). Some of the features of the
Intel® ICH7-M are listed below.
Complies with PCI Express Base Specification, Revision 1.0a
Complies with PCI Local Bus Specification, Revision 2.3 and supports 33MHz
PCI operations
Supports ACPI Power Management Logic
Contains:
o Enhanced DMA controller
