NANO-945GSE EPIC Motherboard

Page 98

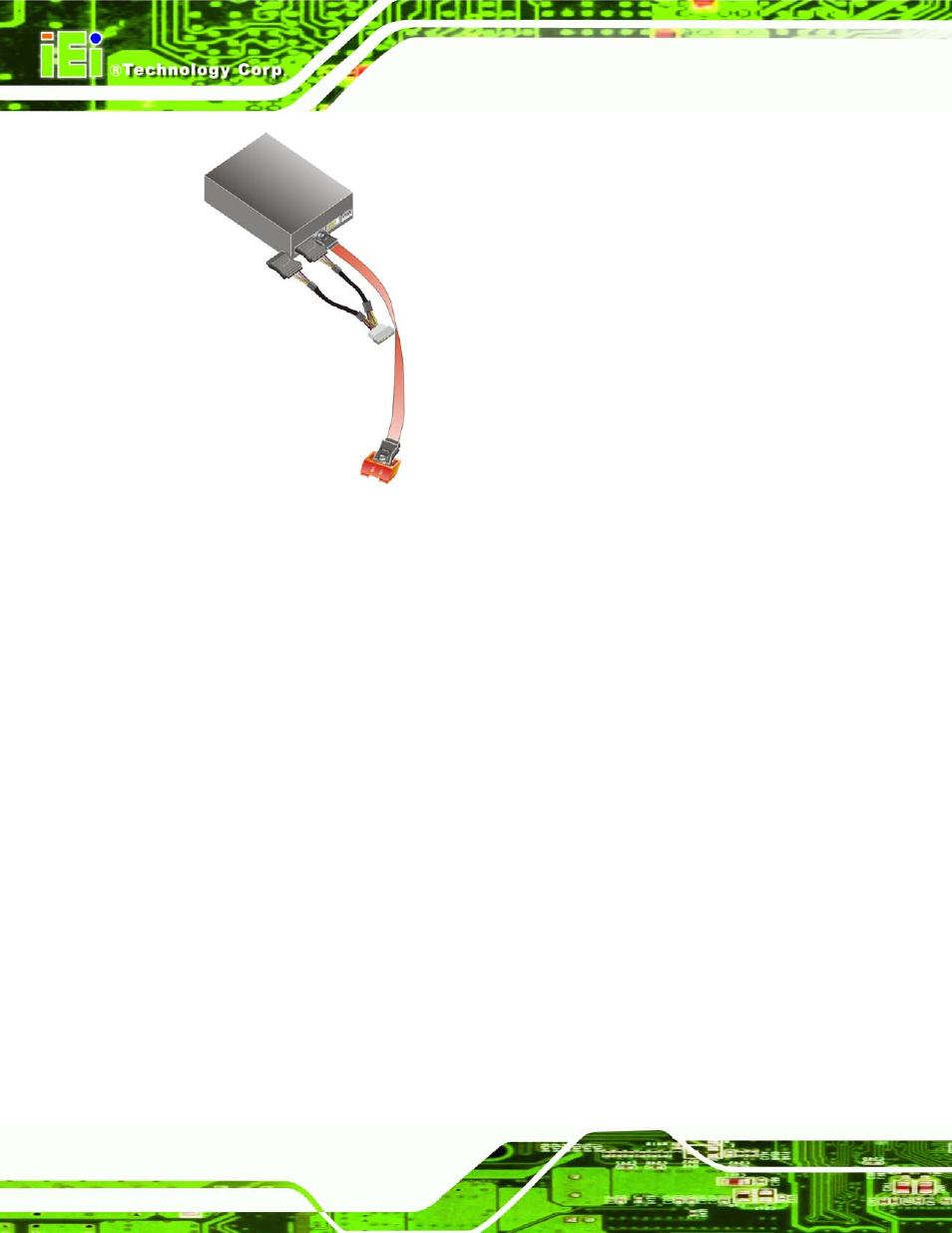

Figure 5-17: SATA Power Drive Connection

5.7.7 Single RS-232 Cable (w/o Bracket)

The single RS-232 cable consists of one serial port connector attached to a serial

communications cable that is then attached to a D-sub 9 male connector. To install the

single RS-232 cable, please follow the steps below.

Step 1:

Locate the connector. The location of the RS-232 connector is shown in

Chapter 3.

Step 2:

Insert the cable connector. Insert the connector into the serial port box header.

See

911H

Figure 5-18. A key on the front of the cable connectors ensures the

connector can only be installed in one direction.
