KINO-DQM871 Mini-ITX SBC

Page 74

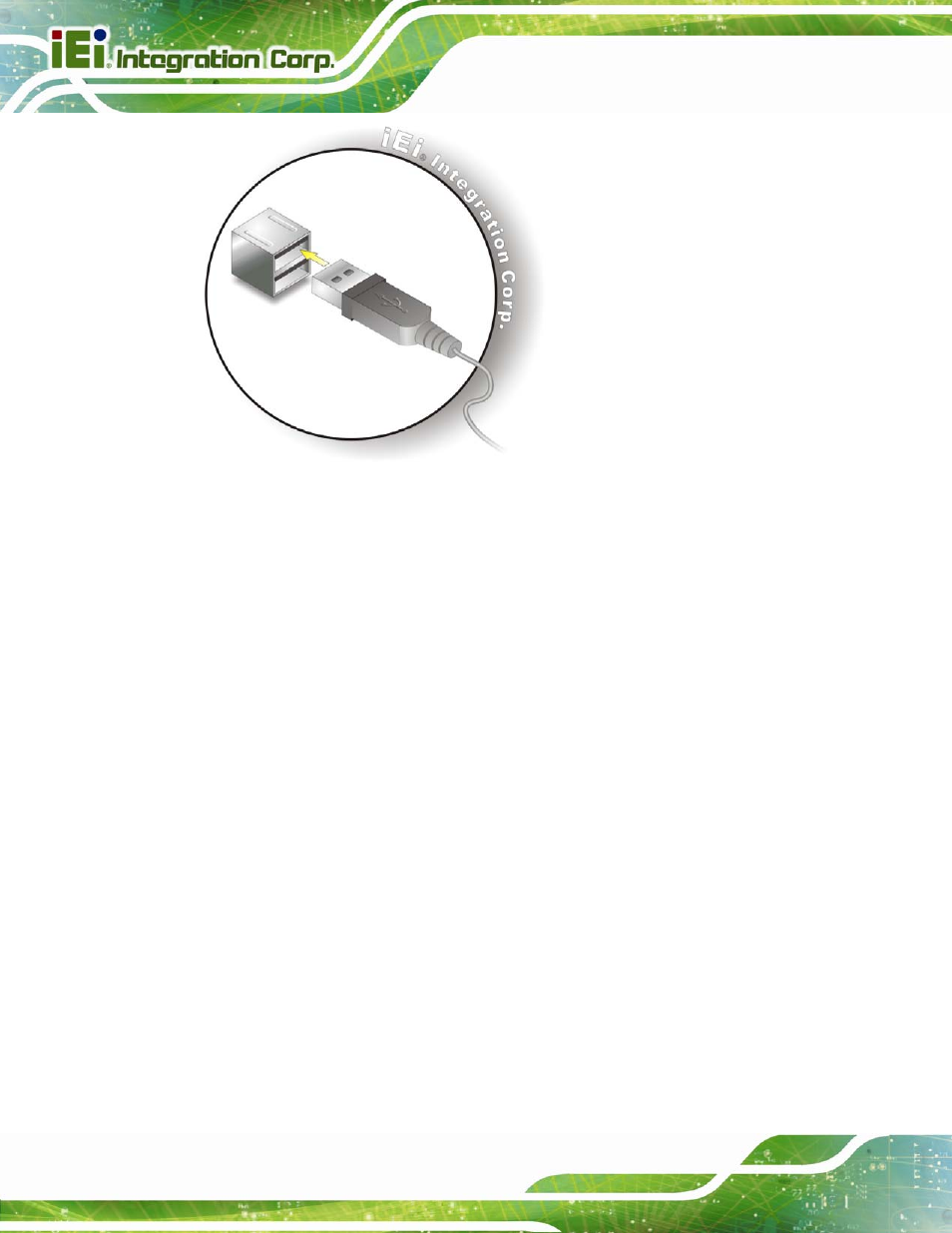

Figure 4-15: USB Connector

4.9.6 VGA Monitor Connection

The KINO-DQM871 has a single female D-sub 15 connector on the external peripheral

interface panel. The D-sub 15 connector is connected to a CRT or VGA monitor. To

connect a monitor to the KINO-DQM871, please follow the instructions below.

Step 1:

Locate the female D-sub 15 connector. The location of the female D-sub 15

connector is shown in Chapter 3.

Step 2:

Align the VGA connector. Align the male D-sub 15 connector on the VGA

screen cable with the female D-sub 15 connector on the external peripheral

interface.

Step 3:

Insert the VGA connector

Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the

KINO-DQM871. See Figure 4-16.
