KINO-DQM871 Mini-ITX SBC

Page 53

Pin Description Pin Description

1 HDMI_DATA2 11

GND

2 GND

12

HDMI_CLK#

3 HDMI_DATA2#

13

N/C

4 HDMI_DATA1 14

N/C

5 GND

15

HDMI_SCL

6 HDMI_DATA1#

16

HDMI_SDA

7 HDMI_DATA0 17

GND

8 GND

18

+5V

9 HDMI_DATA0#

19

HDMI_HPD

10 HDMI_CLK+

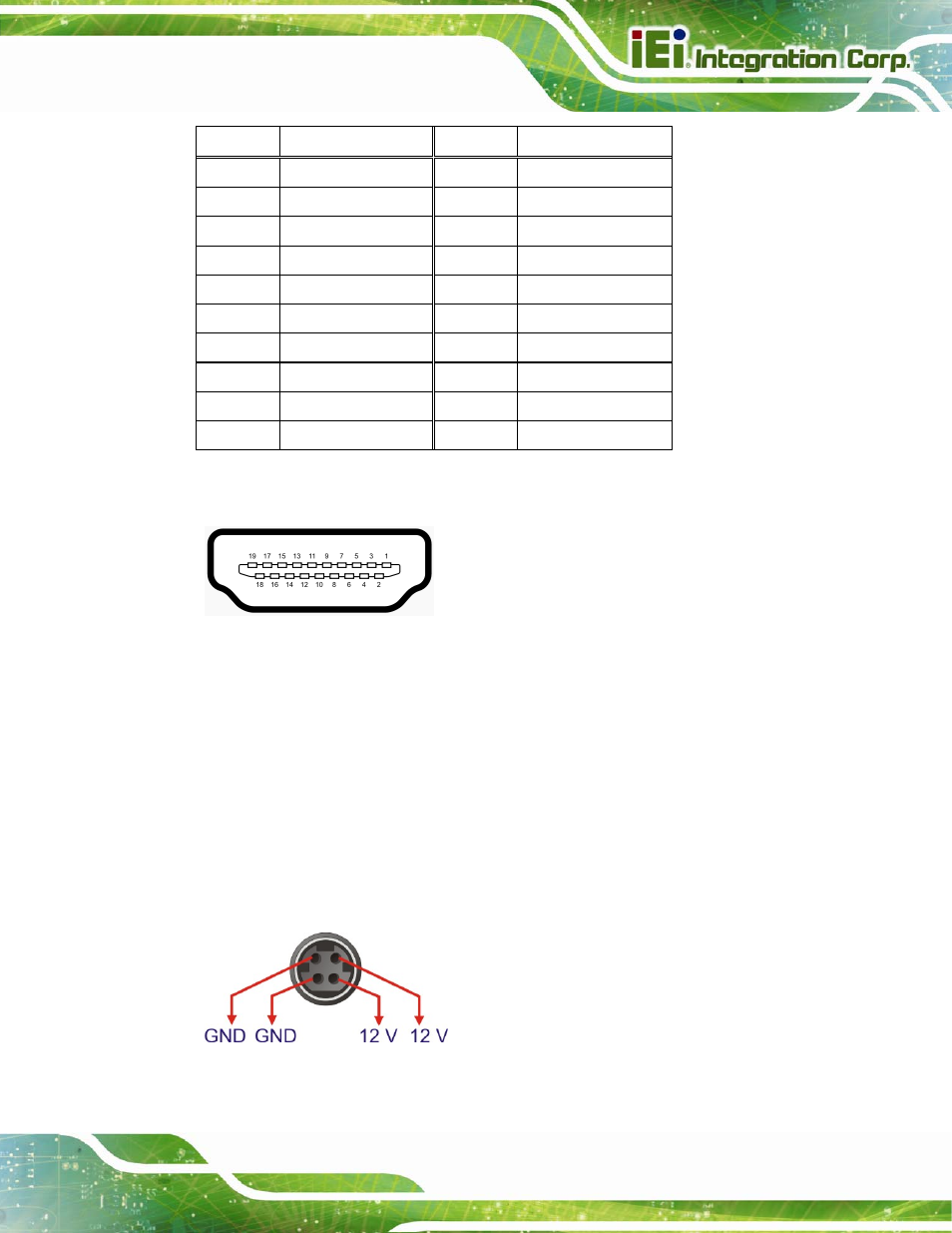

Table 3-38: HDMI Connector Pinouts

Figure 3-35: HDMI Connector

3.3.5 Power Connector (12 V, Power Adapter)

CN Label:

PWR1

CN Type:

4-pin Mini-DIN

CN Location:

See Figure 3-31

CN Pinouts:

See Figure 3-36

The connector supports the 12V power adapter.

Figure 3-36: 4-pin Power Mini-DIN Connection
